IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-185
PRELIMINARY
Section 8-8
Peripherals - Replacement Procedures
8-8-1 DVD/CD-RW Drive Replacement Procedure
8-8-1-1 Tools
Use the appropriate Phillips-type screwdrivers.
8-8-1-2 Time Required
20 minutes
8-8-1-3 Preparations
Shut down the Vivid™ S60/Vivid™ S70 ultrasound unit, as described in Power Shut Down on page 4 - 7.
8-8-1-4 DVD/CD-RW Drive Removal Procedure
1) Remove the following covers: left side, right side, front, right rear, left rear:
2.) Loosen and remove the two Phillips screws on either side of the securing panel (that holds the
DVD /CD-RW Drive in position), as indicated in Figure 8-210.
FRU Part #
Refer to Table 9-24 on page 9-24.
• Air Inlet (Left Side) Cover Removal Procedure on page 8 - 7
• Right Side Cover Removal Procedure on page 8 - 10
• Front Cover Removal Procedure on page 8 - 16
• Right Rear Cover Removal Procedure on page 8 - 20
• Left Rear Cover Removal Procedure on page 8 - 23

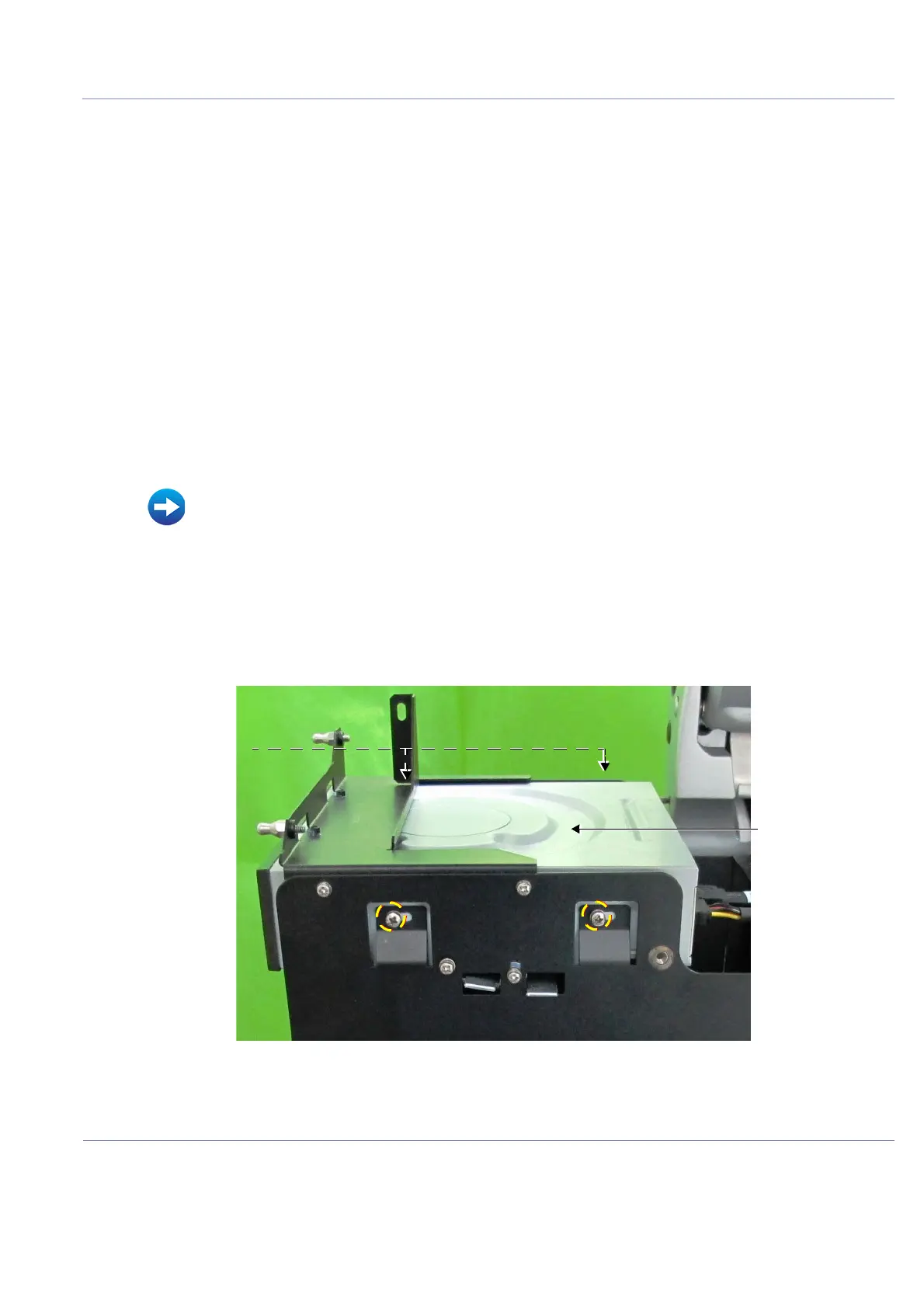

Figure 8-210 Screws Securing DVD/CD-RW Drive in Position
DVD/CD-RW Drive
Screws this side
not visible in
illustration
