HEIDENHAIN ITNC 530 Service Manual

July 2010 25 – 423
Functional test
By means of DriveDiag:
8 Switch on the machine.
8 Turn the feed-rate potentiometer to a low value.
8 Call the DriveDiag. --> See “Integrated Diagnostic Functions and DriveDiag” on page 9 – 89.

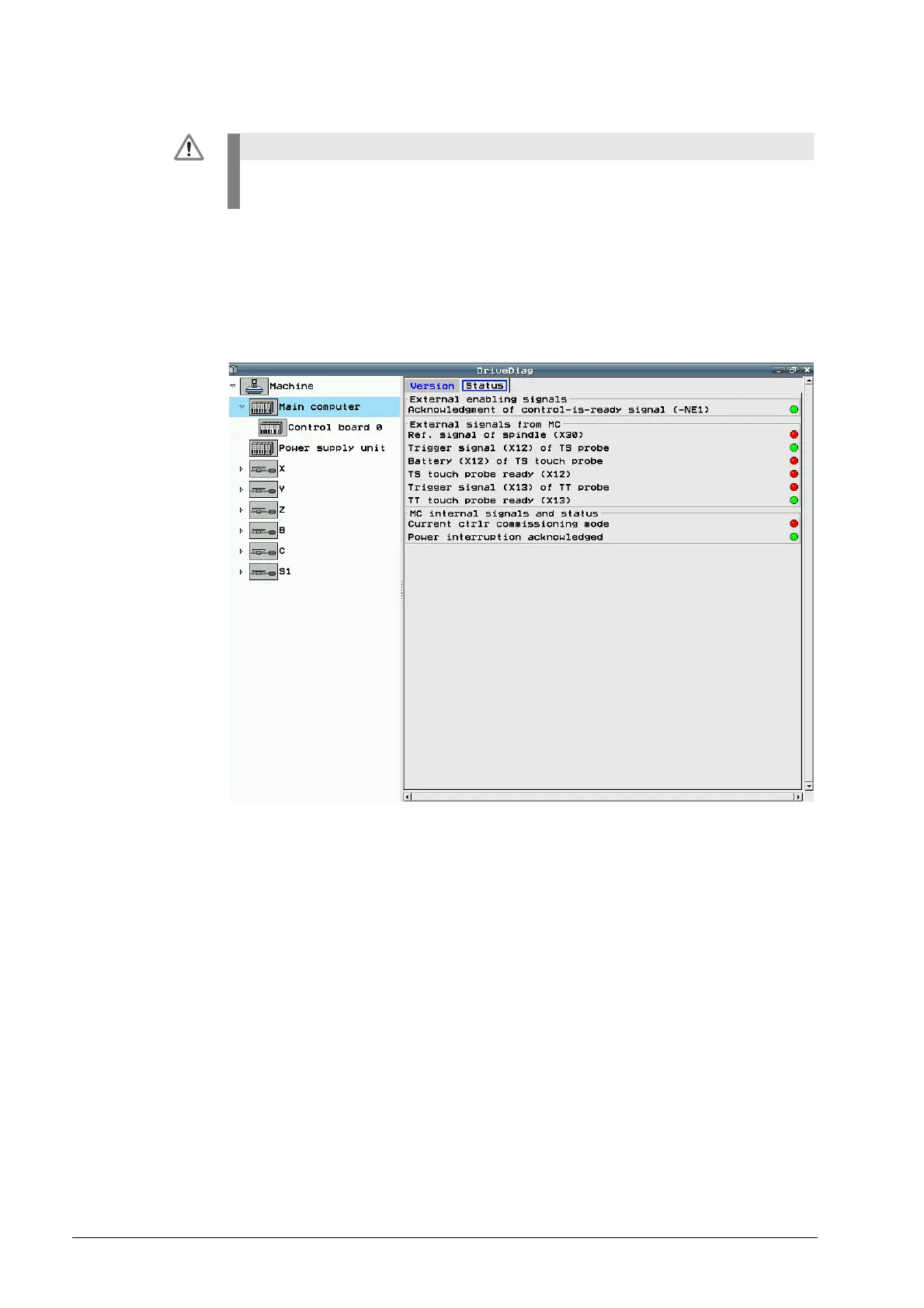

8 Open the following page:
8 Start the probing cycle with the TT (table touch probe).
8 Check the lamp at TT touch probe ready (X13).
When the touch probe is ready, the lamp shines green.
8 Deflect the tool touch probe by hand.
8 Check the lamp at Trigger signal (X13) of TT touch probe .
When the touch probe is deflected, the lamp shines green.
In the machine display appears the message Stylus deflected.
DANGER
Consult the machine operator and observe the machine manufacturers's safety precautions
(setup mode, etc.)!

HEIDENHAIN ITNC 530 Specifications

General

Control Type	CNC
Look-ahead	Yes
Spindle control	Yes
Touch probe cycles	Yes
Operating voltage	24 V DC
Programming	Conversational and DIN/ISO programming
Interpolation	Linear, Circular, Helical
Data Interface	Ethernet, USB, RS-232
Memory	1 GB
Programming Language	HEIDENHAIN plain language
Operating Modes	Manual, Automatic, MDA
Software Options	Various software options available
