Hitachi ZAXIS 30U-5N User Manual

OPERATING THE ENGINE
3-2

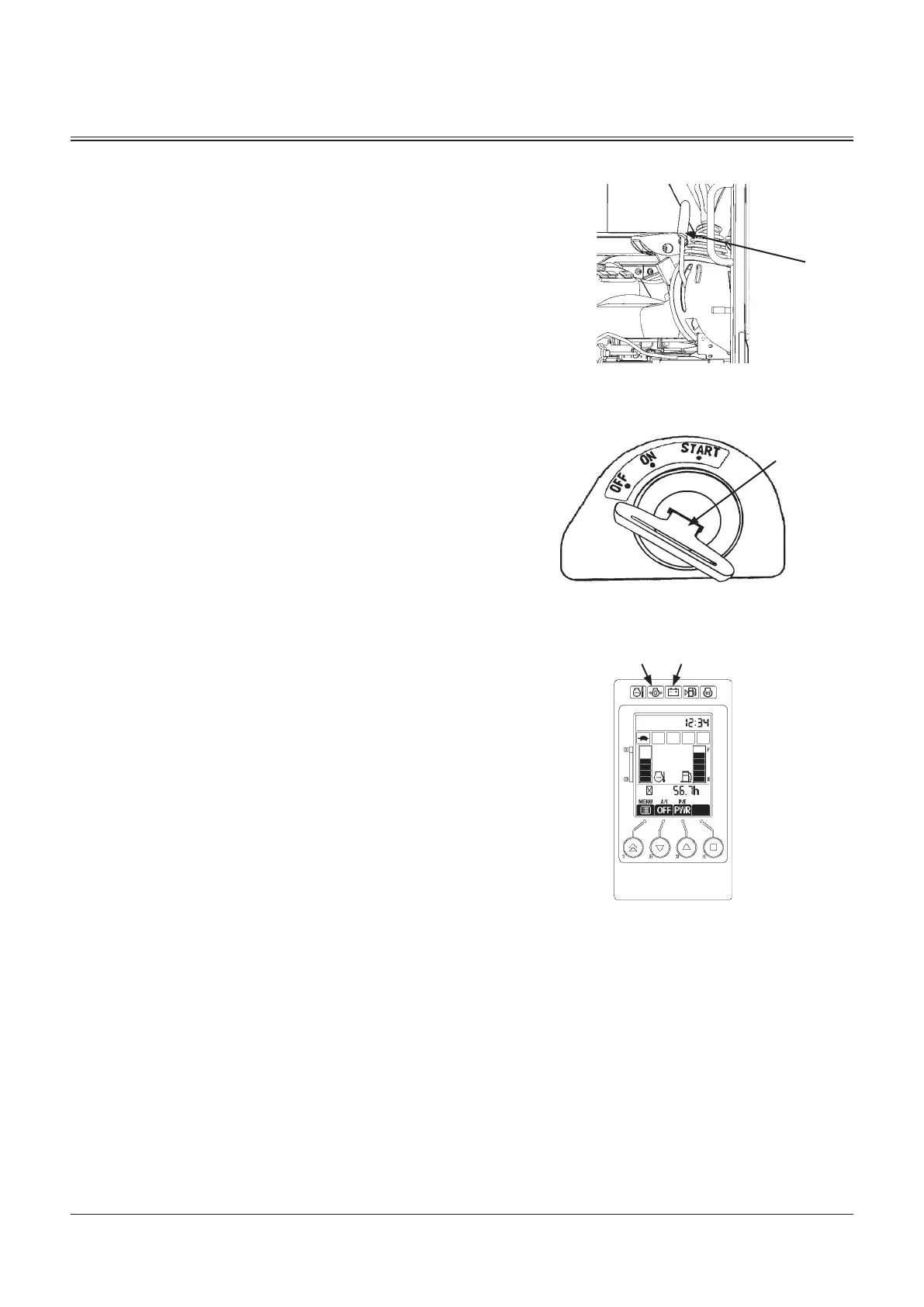

Before Starting Engine
1. Confirmthatpilotcontrolshut-offlever(1)isintheLOCK
position.
2. Confirm that all control levers are placed in neutral.
3. Insertkeyswitch(2).TurnittoONposition.Thestarting
screen is displayed on the monitor. All warning indicators
areON.Theystayonfor2seconds,andthebasicscreen
is displayed. Alternator alarm indicator (4) and engine oil
pressureindicator(3)stayON.
IMPORTANT: The monitor panel indicates the machine
operating conditions. If the machine is operated with
an indicator bulb or a warning lamp burned out, the
alarm will not be displayed even if any abnormality
occurs on the machine. Accordingly, in case any of the
indicator bulbs or the warning lamps do not come
ON, immediately contact your authorized dealer for
repair. If any of alternator (4), or engine oil pressure
(3) indicator fails to light after the basic screen is
displayed, the machine may have trouble. Immediately
contact your authorized dealer for repair.
4. Adjust the seat to allow full pedal and control levers
strokewithoperator'sbackagainstthebackrest.Fasten
the seat belt.
f
NOTE: The monitor surface is a resin product. When the
surface becomes dusty, lightly wipe the surface with a wet
cloth. Never use an organic solvent.
2
1
MADB-03-001
MADB-03-002
3 4
MADH-01-009
