OPERATOR'S STATION
1-12
How to Use Screens
Displaying Basic Screen
IMPORTANT: Start the engine after the basic screen is
displayed.
WhenthekeyswitchisturnedtotheONposition,the
starting screen and the indicators display for about two
seconds. After that, the basic screen will be displayed.
IMPORTANT: When the key switch is turned to the
ON position, engine oil pressure indicator (2) and
alternator indicator (3) will be lit. Until the alternator
starts generating power after the engine starts, the
alternator alarm is displayed on the screen. Until the
engine oil pressure exceeds the given pressure, the
engine oil indicator (2) will stay lit.

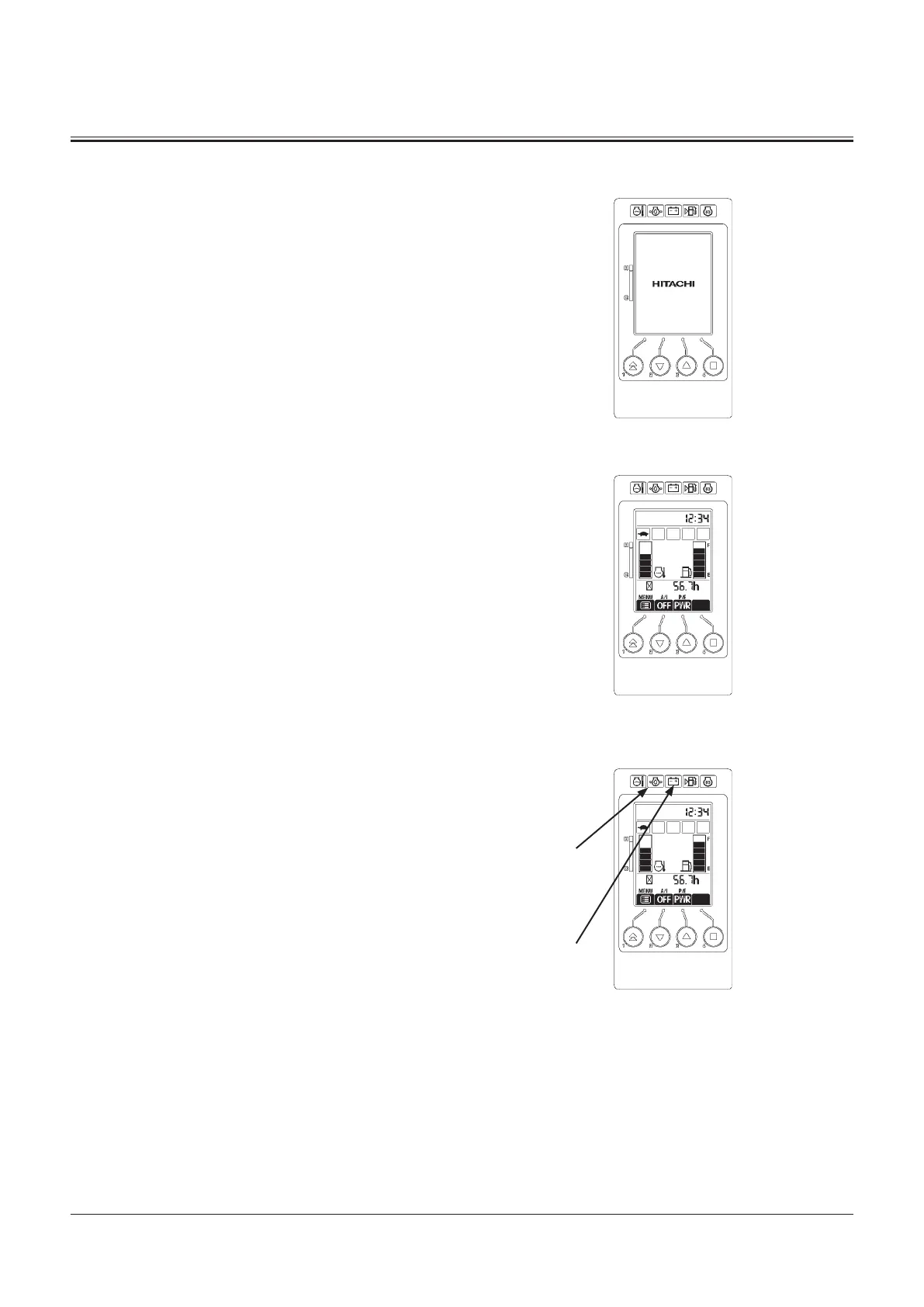

StartingScreen
BasicScreen
2
3
MADH-01-013
MADH-01-009
MADH-01-009
