TRANSPORTING
6-5
Fastening Machine for Transporting
d
CAUTION:
 Securely fasten the machine to the flatbed with wire
ropes.
 Fasten the machine using the transportation bracket
of the truck frame to the truck flatbed with wire
ropes. Be careful not to allow the wire rope to come
in contact with the track shoe.
1. Placecogstoppersorblocksinfrontofandbehindthe
trackstohelpsecuretheunit.
2. Fasten each corner of the machine and front attachment
tothetruckwithappropriatestrengthofchainsor
cables.
Transporting the machine equipped with rubber
crawlers
Whensecuringthemachinetotheflatbed,donotdirectly
tighten the rubber crawler with wire ropes. Tighten the
machine to the trailer flatbed with wire ropes at the travel
motorsidebyusingthebracket.
Tighten the machine firmly to the trailer flatbed with wire
rope at the front idler side by using the transportation
bracketlocatedontheleftandrightsidesoftheblade.

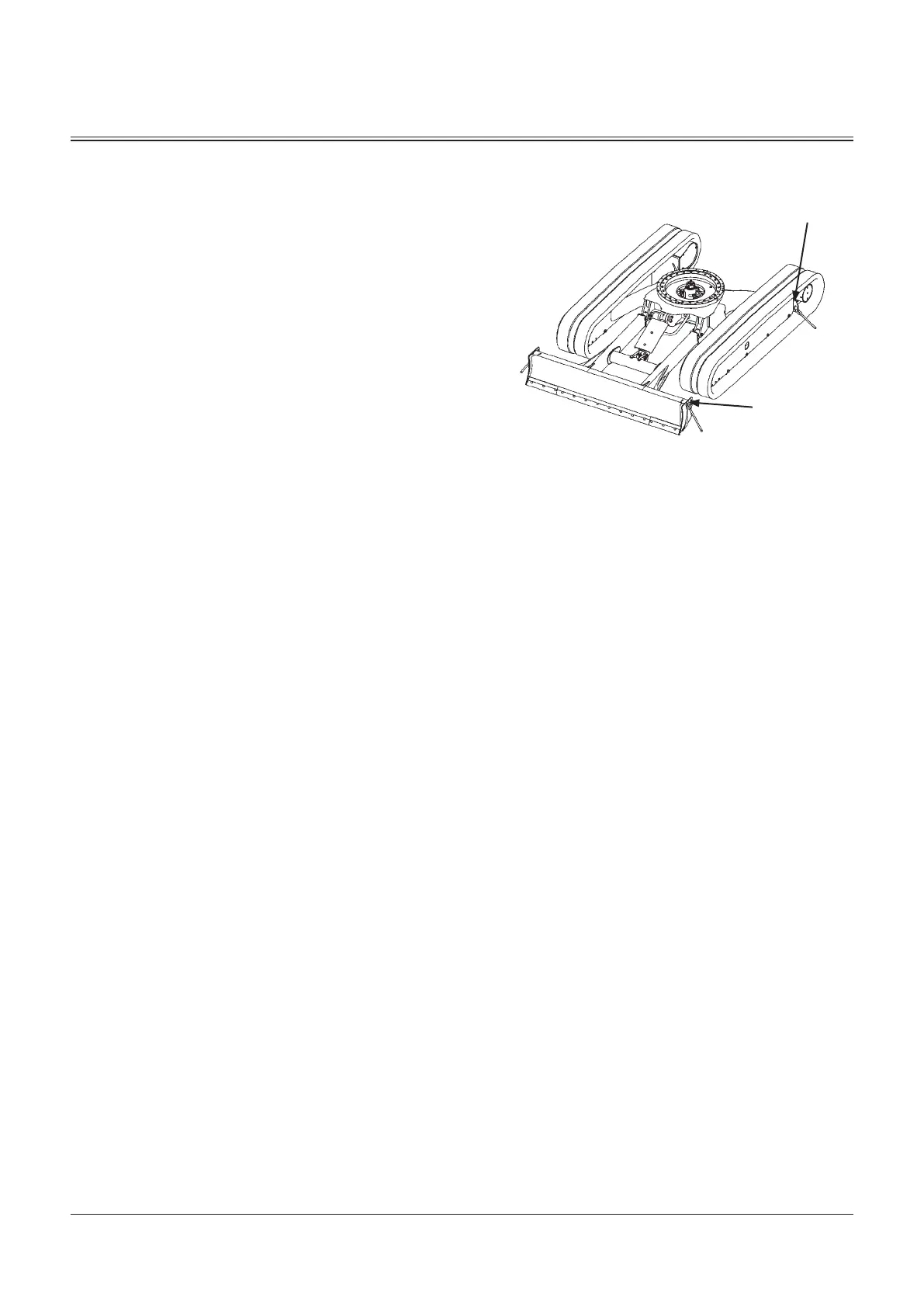

TransportationBracket
Transportation
Bracket
MADB-06-003
