SPECIFICATIONS
12-5
Model ZX35U-5N
Specification Canopy Cab
TypeofFront-End
Attachment
- BoomSwingType,1.32m(4ft4in)Arm
BucketCapacity(Heaped) m
3
(yd
3
) 0.11 (0.14)
OperatingWeight kg(lb) 3440(7580) 3610(7960)
BaseMachineWeight kg(lb) 2650(5840) 2820(6220)
Engine kW/min
-1
(PS/rpm)
YANMAR3TNV88F
17.4/2400
(23.7/2400)
A: OverallWidth mm(ft·in) 1550(5'1'')
B: OverallHeight mm(ft·in) 2480(8'2'')
C: RearEndSwingRadius mm(ft·in) 870(2'10")
D: MinimumGround
Clearance
mm(ft·in) 280(11'')
E: Counterweight
Clearance
mm(ft·in) 550(1'10'')
F: EngineCoverHeight mm(ft·in) 1530(5')
G: Undercarriage Length mm(ft·in) 2110(6'11'')
H: UndercarriageWidth mm(ft·in) 1740(5'9'')
I: SprocketCentertoIdler
Center
mm(ft·in) 1660(5'5'')
J: TrackShoeWidth mm(ft·in) 300(1')
GroundPressure
kPa
(kgf/cm
2
, psi)
32
(0.32,4.6)
33
(0.34,4.8)
SwingSpeed min
-1
(rpm) 9.1 (9.1)
TravelSpeed(fast/slow) km/h(mph) 4.3/2.8(2.7/1.7)
Gradeability 30°(tanθ=0.58)
f
NOTE: The dimensions do not include the height of the shoe lug. The dimensions of the machine equipped with rubber
crawlers are shown.

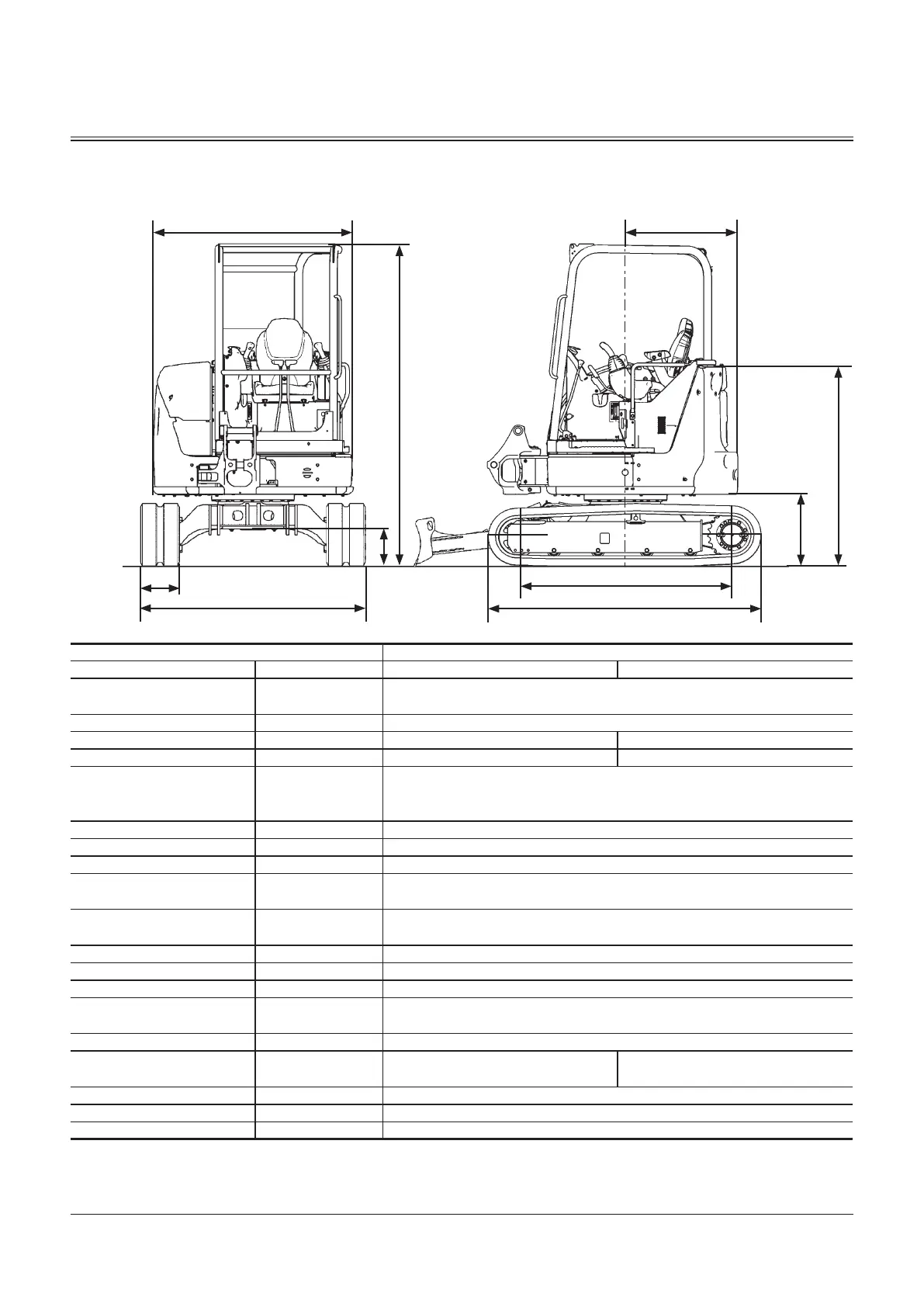

Std. Specification
ZX35U-5N
A
B
D
H
J
F
E
G
I
C
MADG-12-001

Hitachi ZAXIS 30U-5N Specifications

General

Brand	Hitachi
Model	ZAXIS 30U-5N
Category	Excavators
Language	English
