Hitachi ZAXIS 30U-5N User Manual

OPERATOR'S STATION
1-10

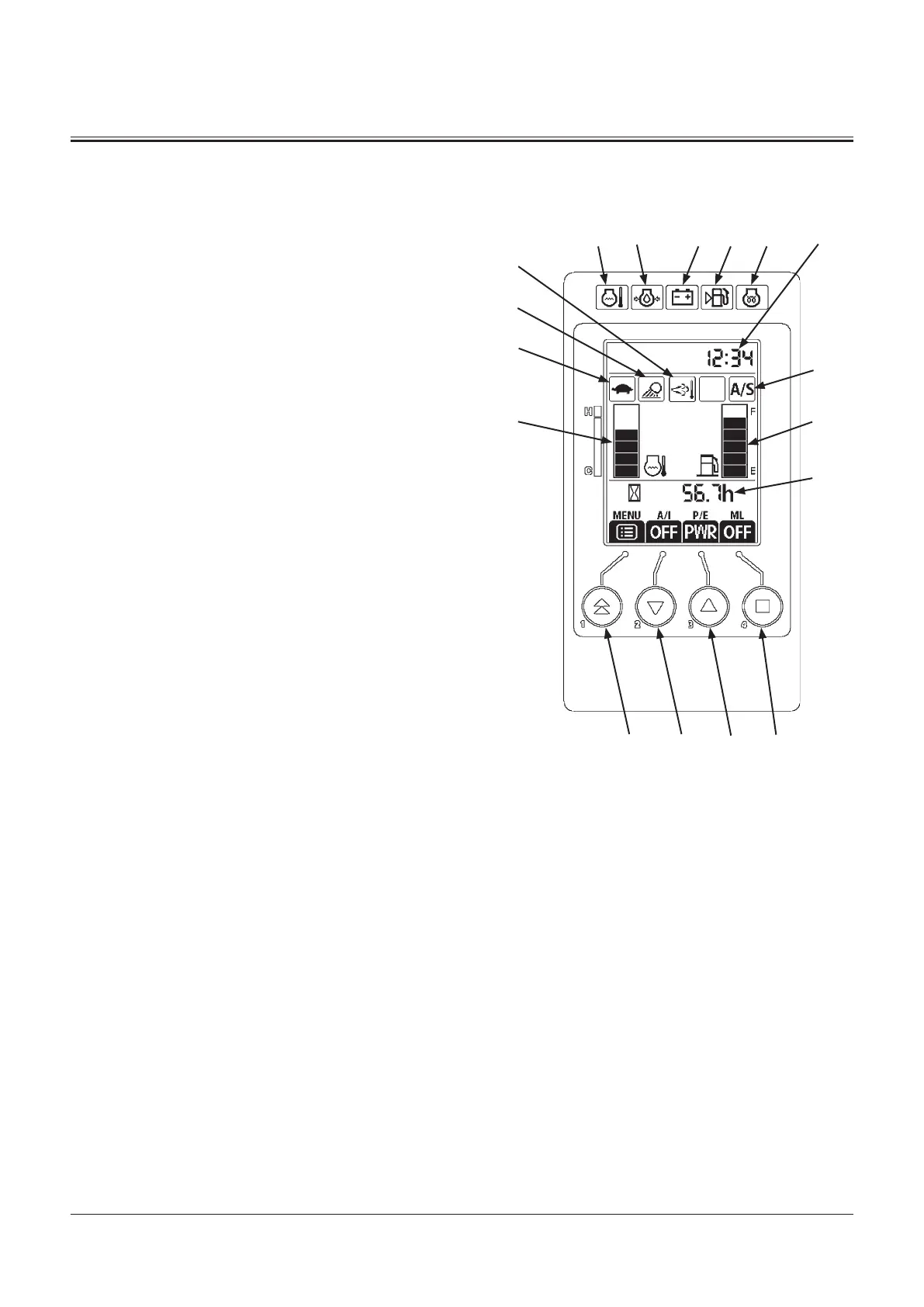

Basic Screen
1- OverheatIndicator
2- EngineOilPressureIndicator
3- AlternatorIndicator
4- FuelLevelIndicator
5- PreheatIndicator
6- Clock
7- AutoShut-DownIndicator
8- FuelGauge
9- HourMeter
10- SetSwitch
11- ECO/PWRModeSelector/SelectorSwitch
12- Auto-Idle/SelectorSwitch
13- Menu/ReturnSwitch
14- CoolantTemperatureGauge
15- TravelModeIndicator
16- WorkLightIndicator
17- MufflerFilterIndicator(ZX50U-5N,60USB-5N)
17
16
15
14
6
7
8
9
1 2 3 4 5
1113 1012
MADG-01-089
