Hitachi ZAXIS 30U-5N User Manual

MAINTENANCE
7-24
B. Engine
Engine Oil Level
--- check daily (Before starting the engine)
IMPORTANT: This machine adopts the closed air breather
system. An incorrect engine oil level may cause trouble
on the engine (The oil level should be between the
upper and lower marks on oil level gauge (1)).
Even if the engine oil level exceeds the upper limit,
control the oil level to the proper quantity before
starting the engine.
Checkoillevelbeforestartingtheengine.

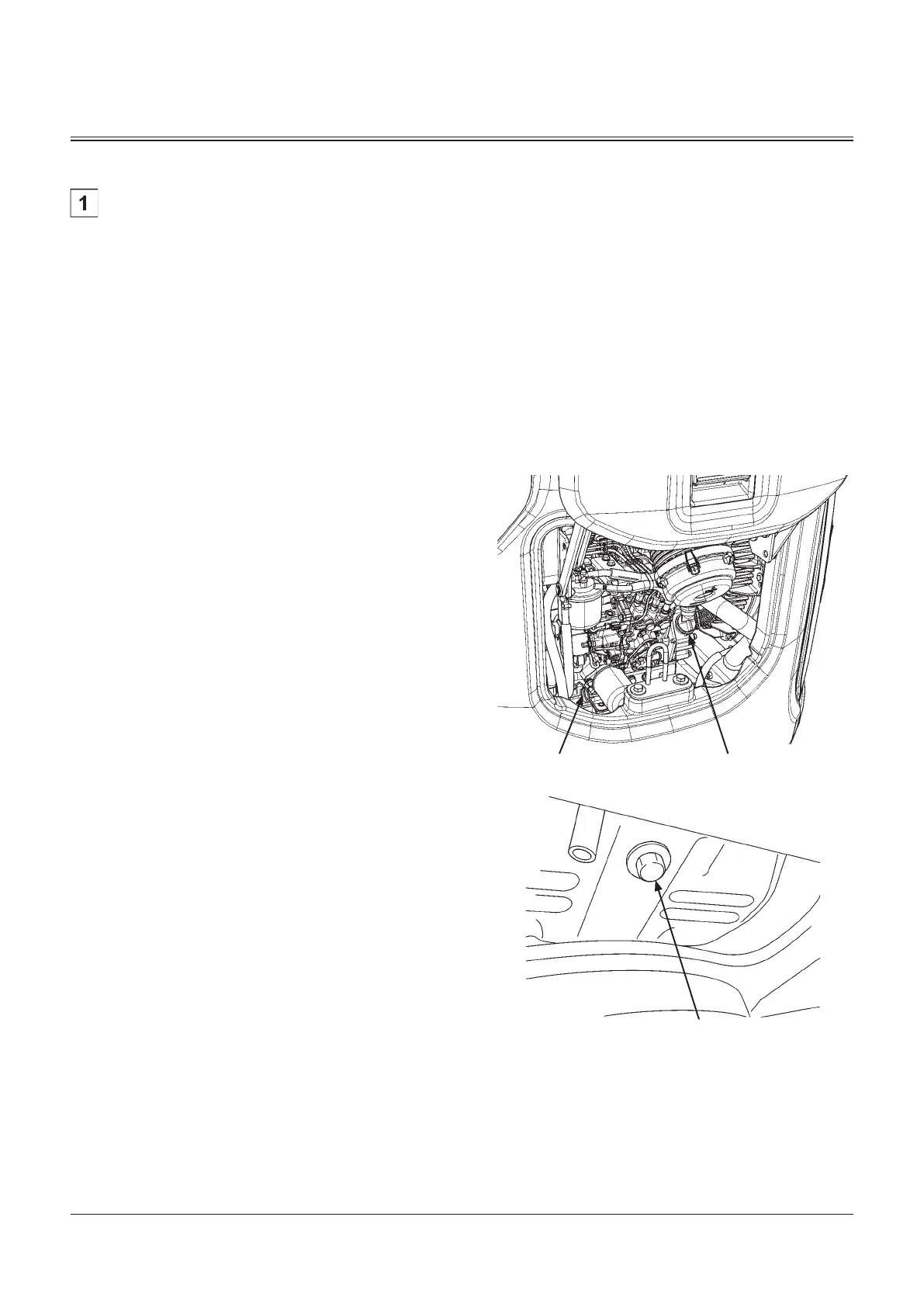

Opentheenginecoverandpulloutoillevelgauge(1).Wipeoil
levelgauge(1)withcloth,re-insertitintothepipetotheend,
and then pull it out again.
Theoillevelshouldbebetweentheupperandlowermarks
on oil level gauge (1).
Ifoillevelisbelowthelowerlimitmark,addtherecommended
engine oil via oil filler (2).
Ifoillevelexceedstheupperlimitmark,removedrainplug(3)
at the bottom of the engine oil pan, to drain oil.
d
CAUTION: Do not spill oil while adding oil. Spilled oil
may cause fires.
After refilling, make sure oil filler cap (2) is securely
tighten.
1 2
MADB-07-011
3
M1M7-07-029
