OPERATOR'S STATION

1-28

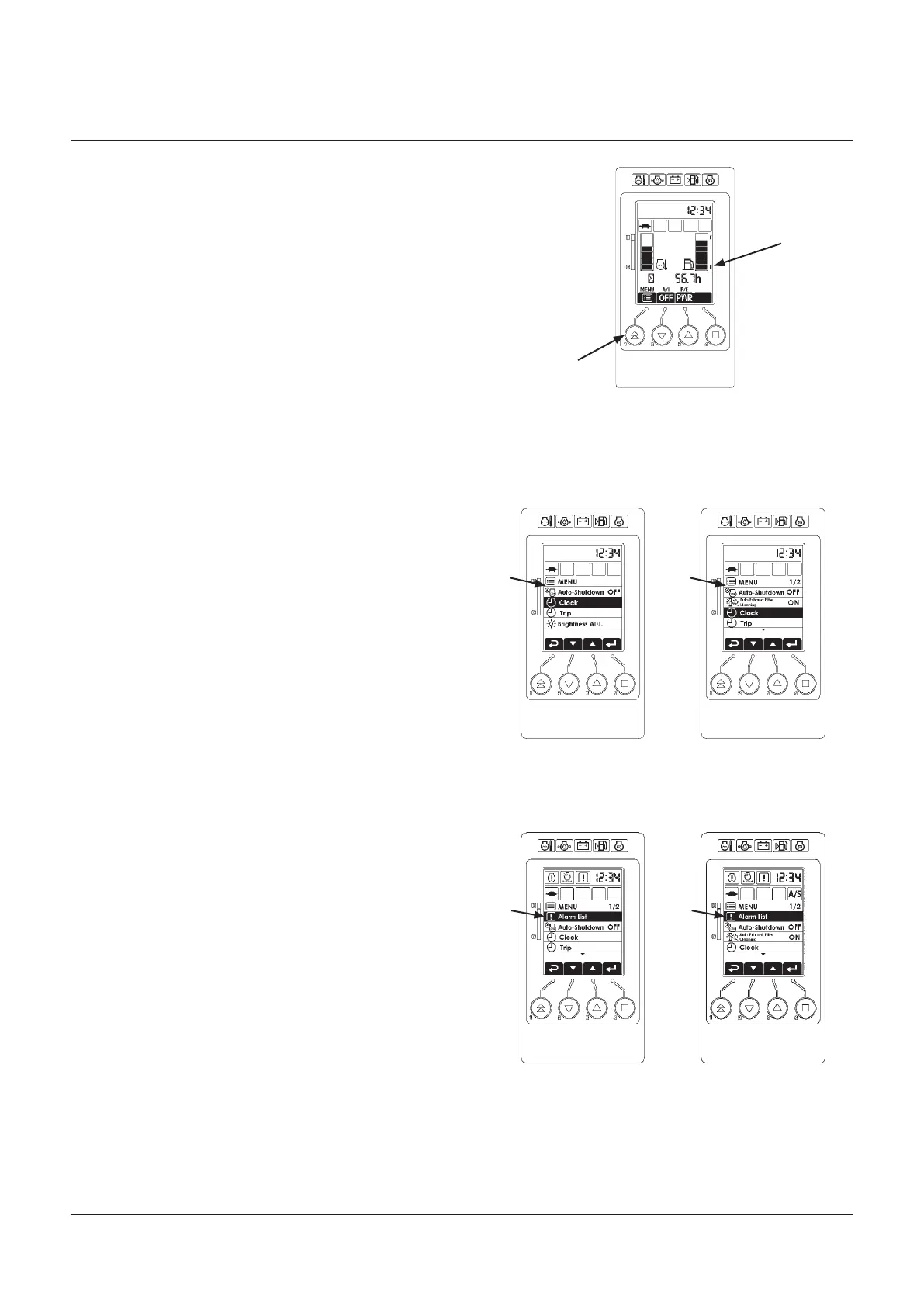

Main Menu (MENU)

Pushmenuswitch(2)whiledisplayingbasicscreen(1)to

displaymainmenu(MENU)screen(3).Menuscreen(3)

contains the items shown in the right figure. Alarm list (4) is

displayed only when an alarm is generated.

3 3

4 4

ZX30U-5N,35U-5N

ZX50U-5N,60USB-5N

MADH-01-009

MADG-01-096

MADG-01-097 MADG-01-098

MADG-01-095
