OPERATING THE ENGINE
3-3

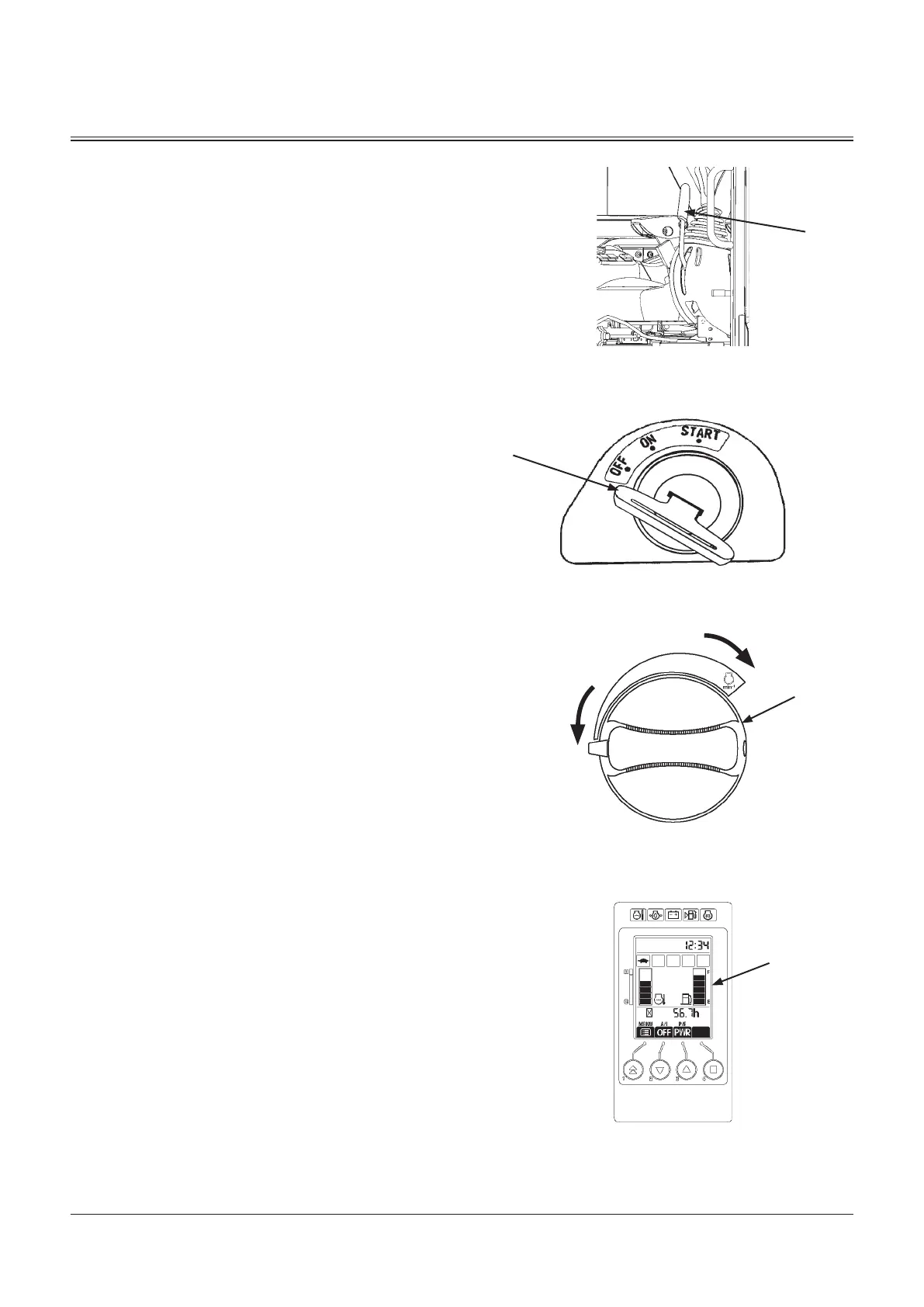

Starting the Engine
Starting the Engine in Ordinary Temperature
1. Confirmthatpilotcontrolshut-offlever(1)isintheLOCK
position.
2. Turnenginecontroldial(3)totheslowidleposition.
3. Soundhorntoalertbystanders
4. Insertkeyswitch(2).TurnittoONposition.
5. The basic screen (4) will be displayed on the monitor.
6. Turnkeyswitch(2)toSTARTpositiontorotatethe
starter. The engine will start.
IMPORTANT: Never operate the starter for more than 15
seconds at a time. If engine fails to start, return key
switch to OFF. Wait for more than 30 seconds, then
try again. Failure to do so may cause damage to the
starter and/or discharging the batteries.
This machine adopts the starter energizing time
restriction control. The starter power will be
automatically cut after running 30 seconds.
7. Releasekeyswitch(2)immediatelyaftertheenginehas
started.Keyswitch(2)willautomaticallyreturntoON
position.
f
NOTE: The horn sounds even though key switch (2) is turned
OFF. The engine does not start unless pilot control shut-off
lever (1) is in the LOCK position.
1
2
3
SlowIdle
Fast Idle
MADB-03-002
MADB-03-001
MADB-01-067
4
MADH-01-009
