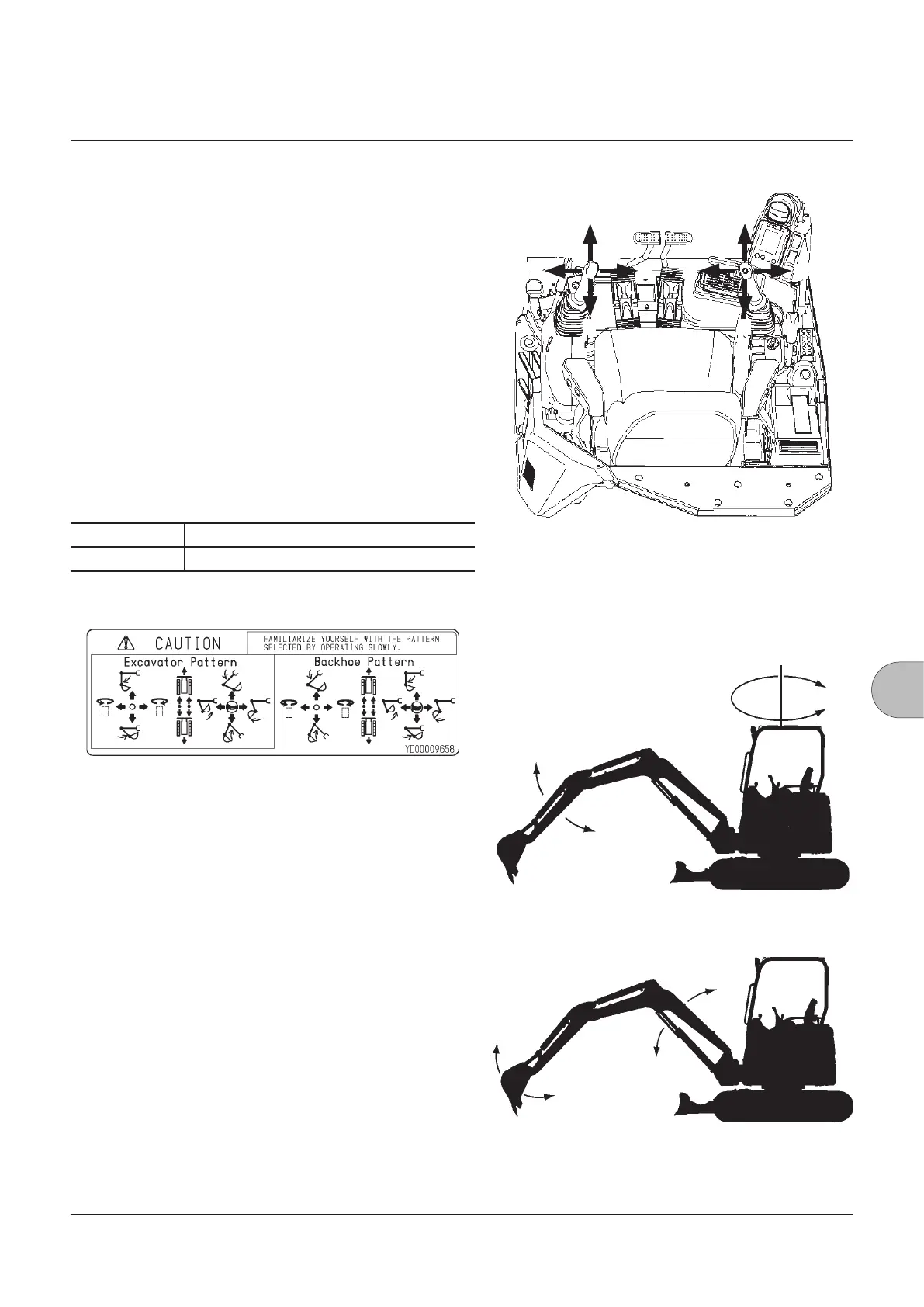

5-1
OPERATING THE MACHINE
Control Lever (ISO Pattern)
d
WARNING:
 Never place any part of body beyond window frame.
It could be crushed by the boom if boom control
lever is accidentally bumped or otherwise engaged.
Never remove the window sash bar.
 Make sure you know the location and function of
each control before operating.
 Do not change the control lever operation pattern.
Failure to do so may result in operation mistake of
the machine.
Labels showing the lever control pattern are provided around
the operator’s seat. As illustrated below, the labels indicate the
controlpatterns.(Refertotheillustration)
LeverControlParternLabelLocation
Canopy Roof
Cab Rightsideinthecab
Whenaleverisreleased,itwillautomaticallyreturntoneutral,
and that machine function will stop.
1- ArmRoll-Out
2- ArmRoll-In
3- SwingLeft
4- SwingRight
5- BoomLower
6- BoomRaise
7- BucketRoll-In
8- BucketRoll-Out
MADG-05-006
3
6
1
4
5
8
7
2
84 73
51
62
M1M7-05-001
M1M7-05-002
MADB-01-062
