SPECIFICATIONS
12-2
Category
Item
ZX30U-5N
Canopy Cab
1.17mArm
A: MaximumDiggingReach mm(ft·in) 4890(16'1")
B: MaximumDiggingDepth mm(ft·in) 2790(9'2")
C: MaximumCuttingHeight mm(ft·in) 4620(15'2") 4420(14'6")
D: MaximumDumpingHeight mm(ft·in) 3200(10'6") 3030(10')
E: OverallHeight mm(ft·in) 2480(8'2")
F: OverallLength mm(ft·in) 4450(14'8")
G: MinimumSwingRadius mm(ft·in) 1970(6'5") 2150(7'1")
H: BoomSwingPivotOffsetDistance mm(ft·in) 100(4")
I: BladeBottomHighestPosition mm(ft·in) 360(1'2")
J: BladeBottomLowestPosition mm(ft·in) 320(1'1")
K: OffsetDistance mm(ft·in) L610(2')
R735(2'5")
L610(2')
R700(2'4")
MaximumBoom-SwingAngle L72°R62°[52°] L62°R62°[52°]
f
NOTE:
The dimensions do not include the height of the shoe lug. The dimensions of the machine equipped with rubber crawlers
are shown.
L: Left R: Right
Values in the brackets [ ] are dimension of the machine equipped with the House rupture valve.

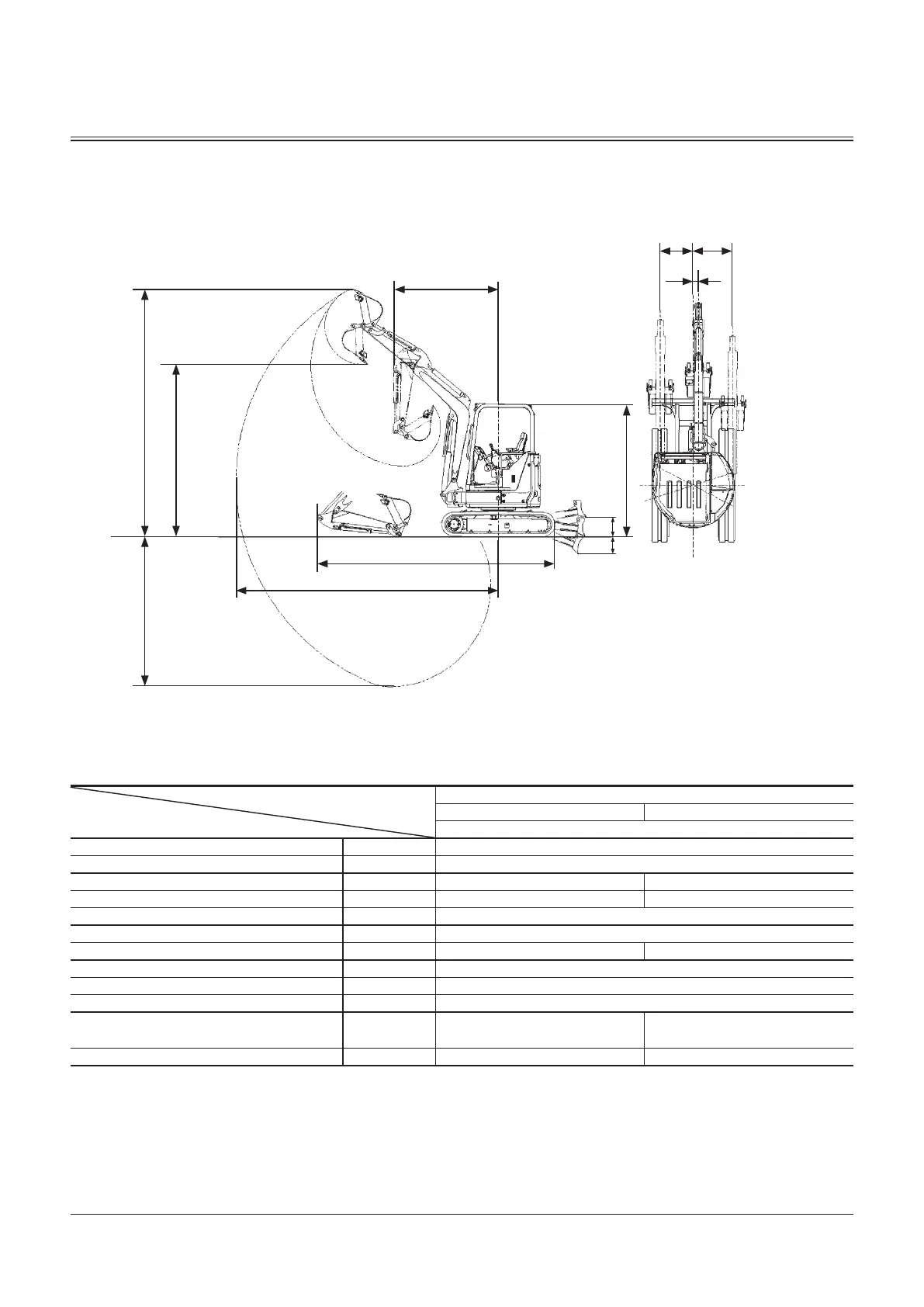

Working Ranges
ZX30U-5N
C
B
D
A
F
E
G
H
K (Left) K(Right)
I
J
