DRIVING THE MACHINE
4-6

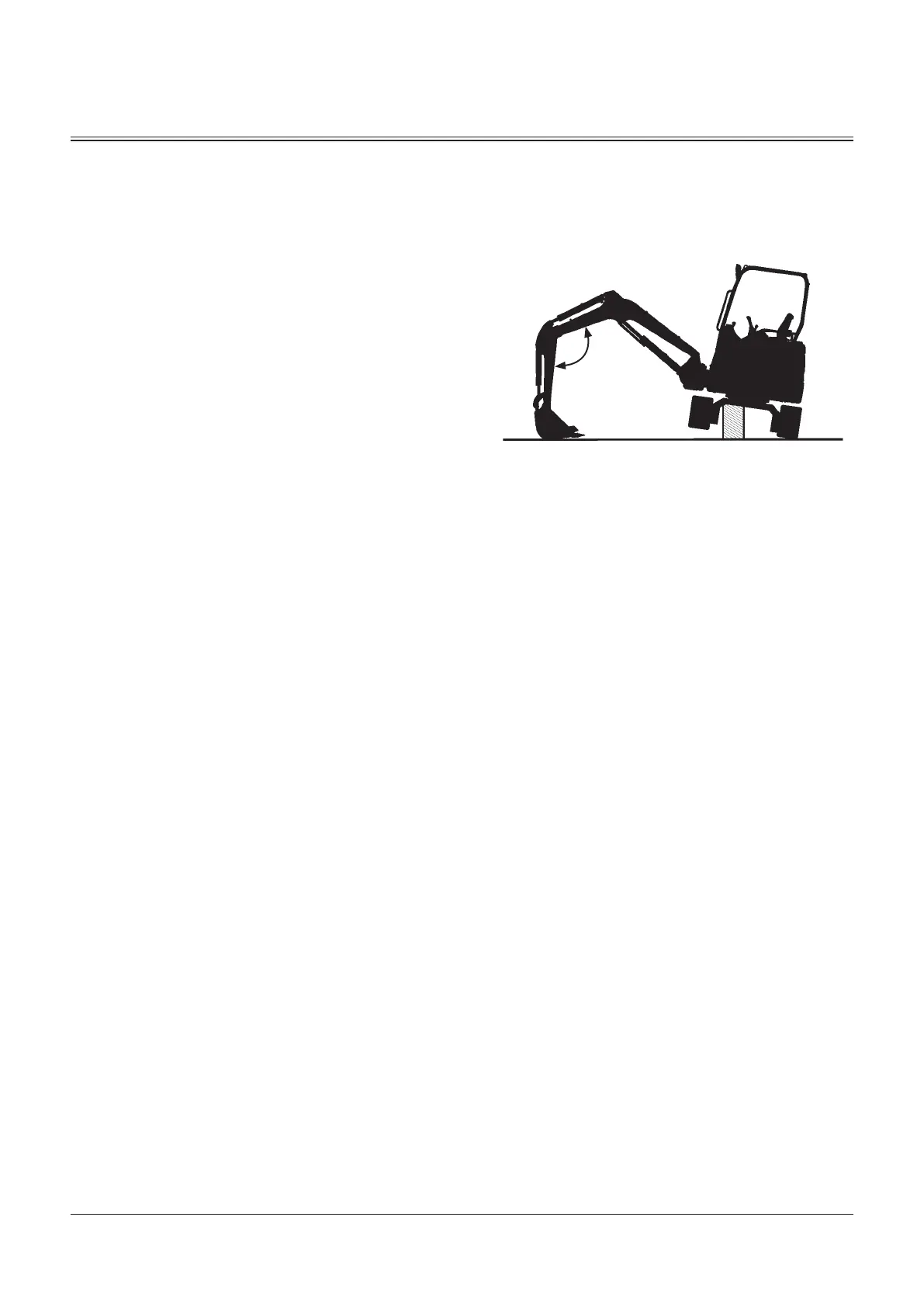

Raise One Track Using Boom and Arm
d
WARNING: Operate the machine carefully. The
machine may slide. Keep the angle between boom and
arm 90 to 110° and position the bucket’s round side on
the ground.
1. Swingtheupperstructure90°.
2. Positiontheboomandthearmsothattheangle
betweenthembecomesto90to110°.Pushtheground
withtheroundbucketbottomtoraisetrackoffground.
3. Donotraisethetrackwiththeboomandthearmwhen
the boom is swung.
4. Placeblocksundermachineframetosupportthe
machine.
90 to 110 º
M1M7-04-006
