Hitachi ZAXIS 30U-5N User Manual

13-5
AUX FUNCTION LEVER FOR EXTRA PIPING
OPTIONAL ATTACHMENT
AUX Function Lever for Extra Piping (Optional)
d
WARNING:
 Switches on the AUX function lever are provided
for operating attachments of this machine. Never
use these switches for unauthorized application
or modify them, which may cause serious injury or
death.
 Before using these switches, thoroughly read the
operation manual of the corresponding attachment
and check the operation of each function in a safe
area.
 Before operating an attachment with this
switch, confirm the requirements on safe, proper
mounting and operation of the attachment with its
manufacturer or distributor and observe them.

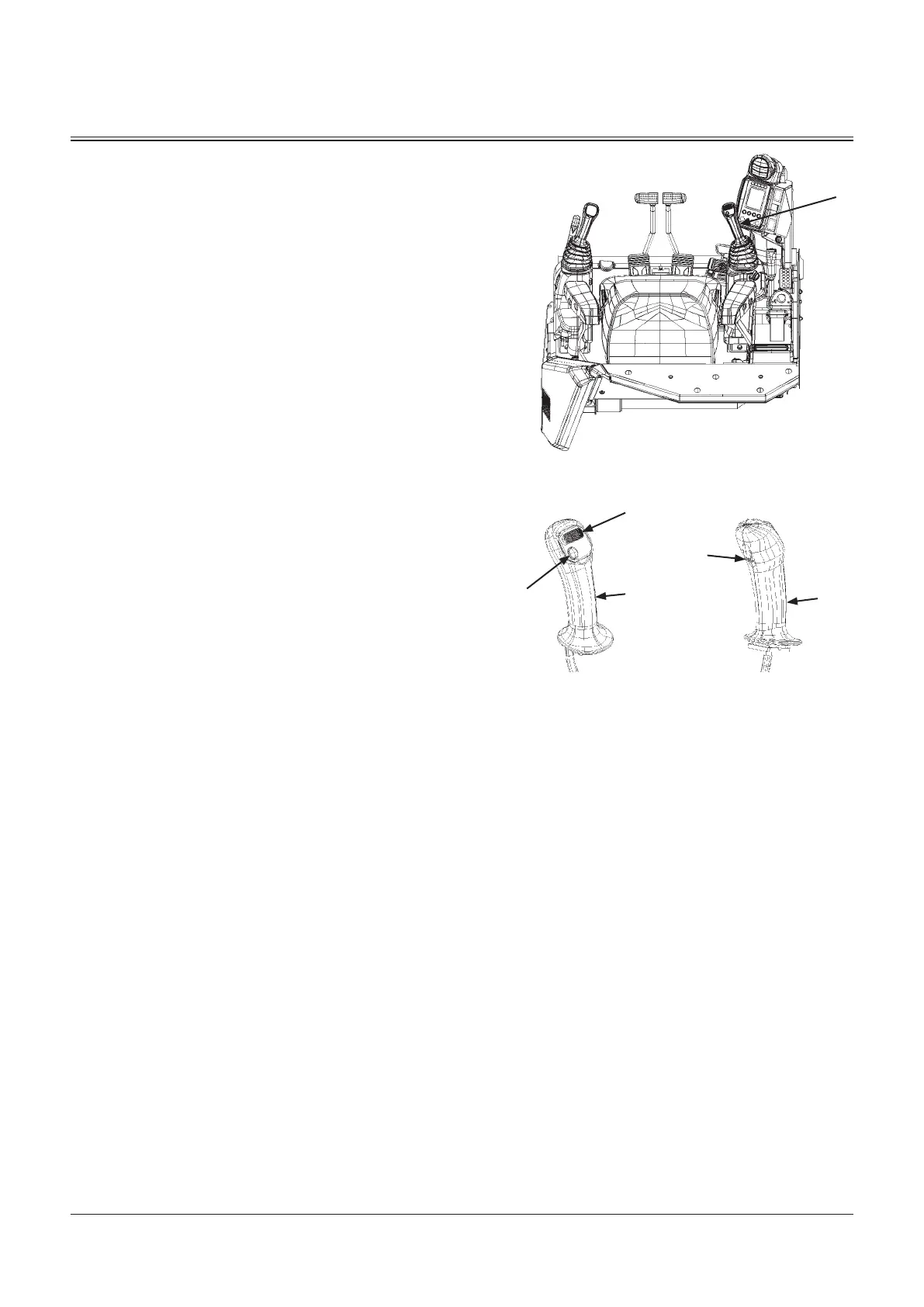

TheExtraPipingcanbeoperatedbyusingswitchesprovided
on right control lever (1), as illustrated.
AUX Function Lever (Right) --- for Extra Piping
1. Attachmentsuchasabreakercanbeoperatedby
moving slide switch (2) on right control lever (1) left and
right.
2. Pushingswitch(3)onrightcontrollever(1)performs
same function as moving slide switch (2) to the left end.
(Itisusefulwhenoperatingabreaker.)
 Whenslideswitch(2)andswitch(3)areoperated
simultaneously,operationofswitch(3)hasapriority.
2. Auxiliary
3. BreakerSwitch
4. HornSwitch
RightControlLever
1
2
1
3
4
1
M1NE-05-002 M1NE-05-003
MADC-13-004
