Configuring call authority control
Network requirements
As shown in Figure 643, Router A, Router B, and Router C are located at place A, place B, and place
C, respectively. They are all connected to the SIP server to allow subscribers to make SIP calls.
When VoIP links fail for some reason, PSTN links that provide backup for VoIP links can be
automatically brought up. It is required that subscribers whose telephone numbers beginning with
1100 at place A can originate calls to place B while subscribers whose telephone number beginning
with 1200 can originate calls to both place B and place C.

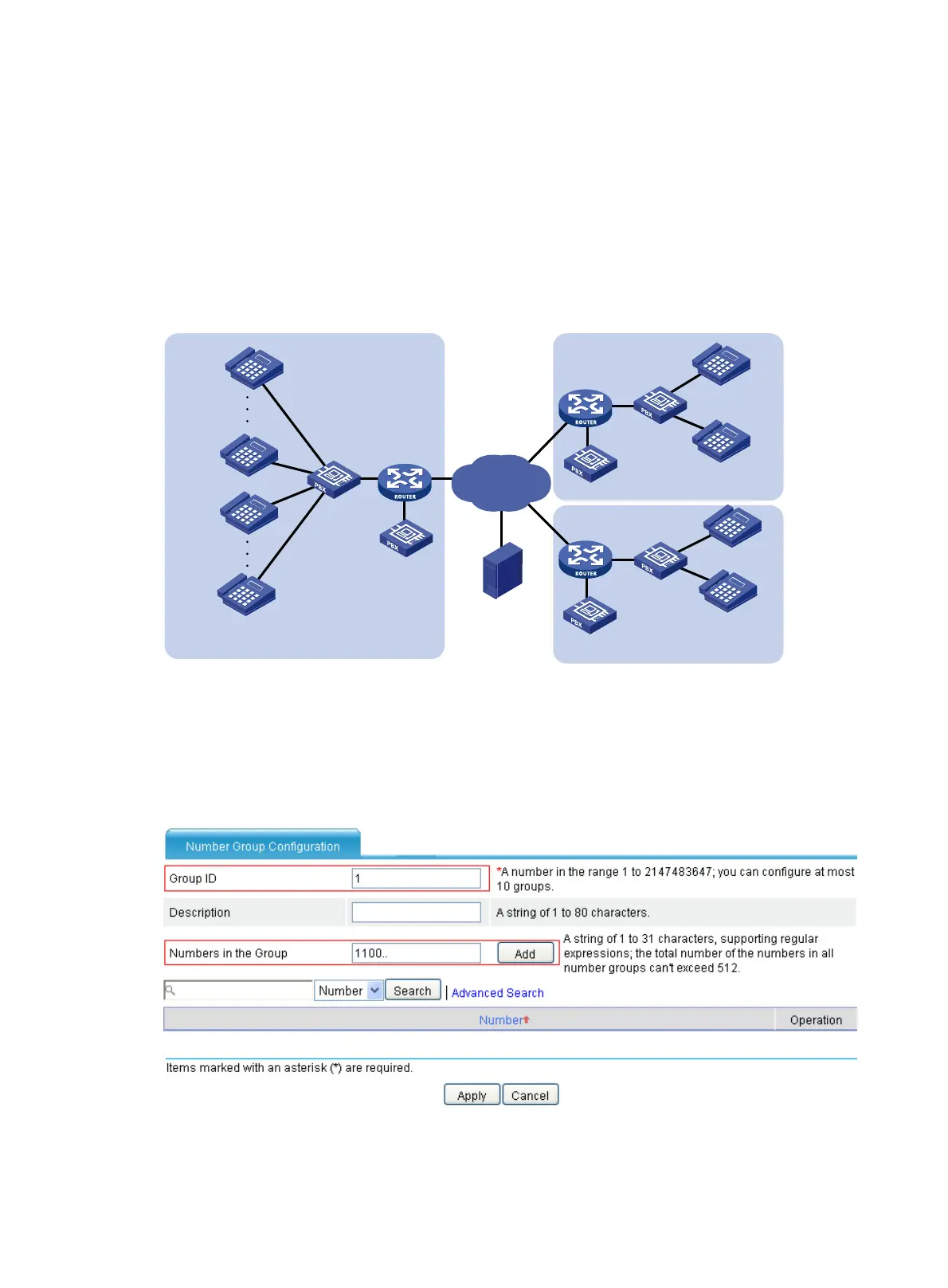

Figure 643 Network diagram
Configuring Router A
# Configure two number groups.
Configure Router A. Select Voice Management > Dial Plan > Call Authority Control from the
navigation tree, and then click Add to access the number group configuration page.
Figure 644 Number group configuration page
1. Type 1 for Group ID.
2. Type 1100.. for Numbers in the Group.
Router A
Router B
Router C
SIP server
IP
1100..
2100
2200
3100
3200
110000
110099
PBX
120000
120099
1200..
PSTN’s
central office
PSTN’s
central office
PBX
PSTN’s
central office
PBX
Place A
Place B
Place C
