460

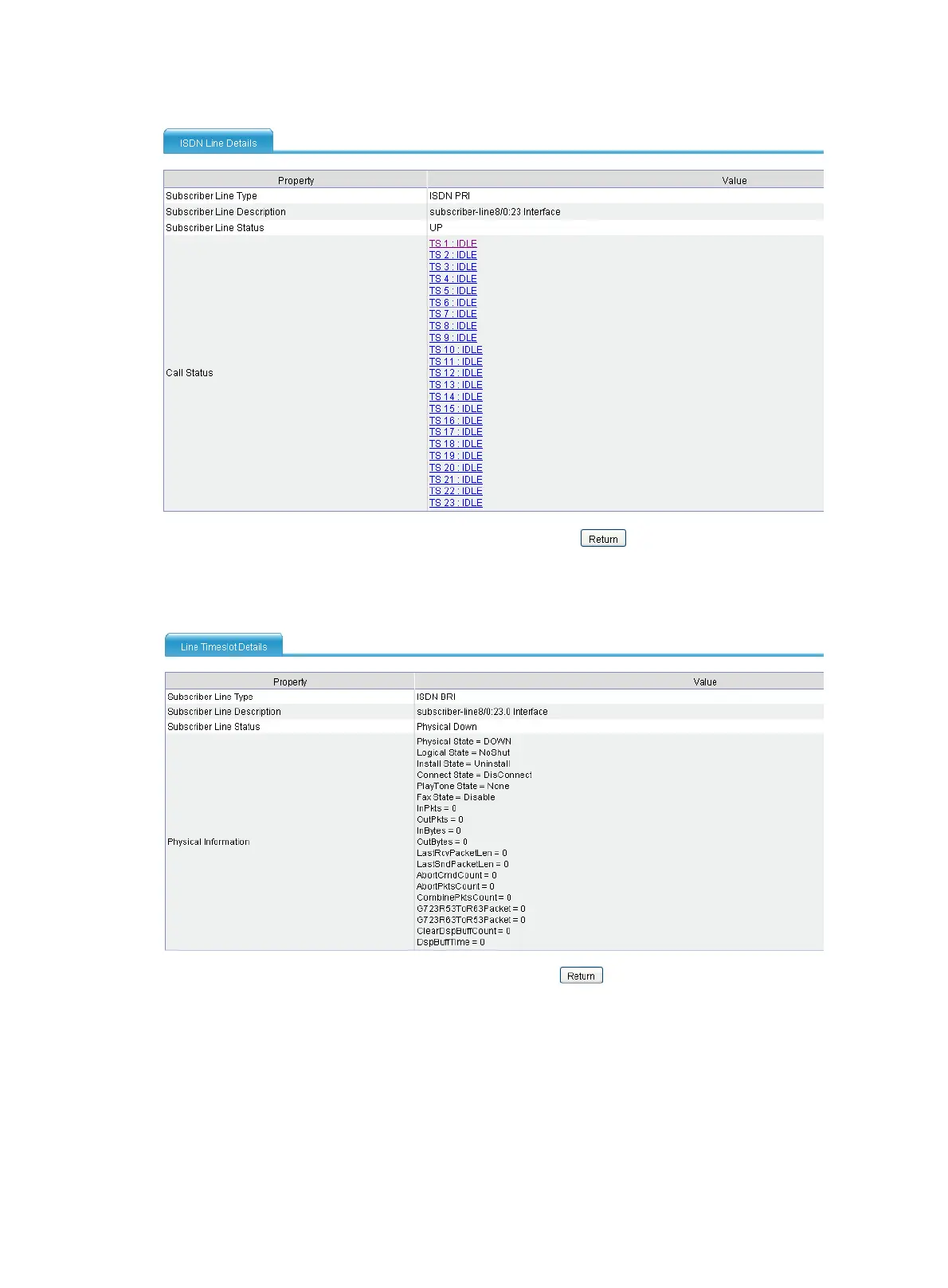

Figure 861 ISDN line details

Click a timeslot (TS) link to view the details about the TS.

Figure 862 Timeslot details

Call statistics

The following pages display call statistics.

• Active Call Summary page—Displays statistics about ongoing calls.

• History Call Summary page—Displays statistics about ended calls.
