Huawei FusionModule800 Installation Guide

FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
3 Hardware Installation
Issue 10 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
113
3.9 Installing a Battery Pack
Context
The battery pack is installed at the bottom of the IT cabinet adjacent to the Converged
Cabinet.

If no smart cooling product is installed in the IT cabinet, install battery packs from bottom
to top starting from the 1 U position above the cabinet bottom.

If a smart cooling product is installed in the IT cabinet, install battery packs from bottom
to top starting from the 12 U position above the cabinet bottom.
Procedure
Step 1 Take out mounting ears from the battery pack fitting bag, and install the mounting ears on the
battery pack using eight M4 screws, as shown in Figure 3-96.

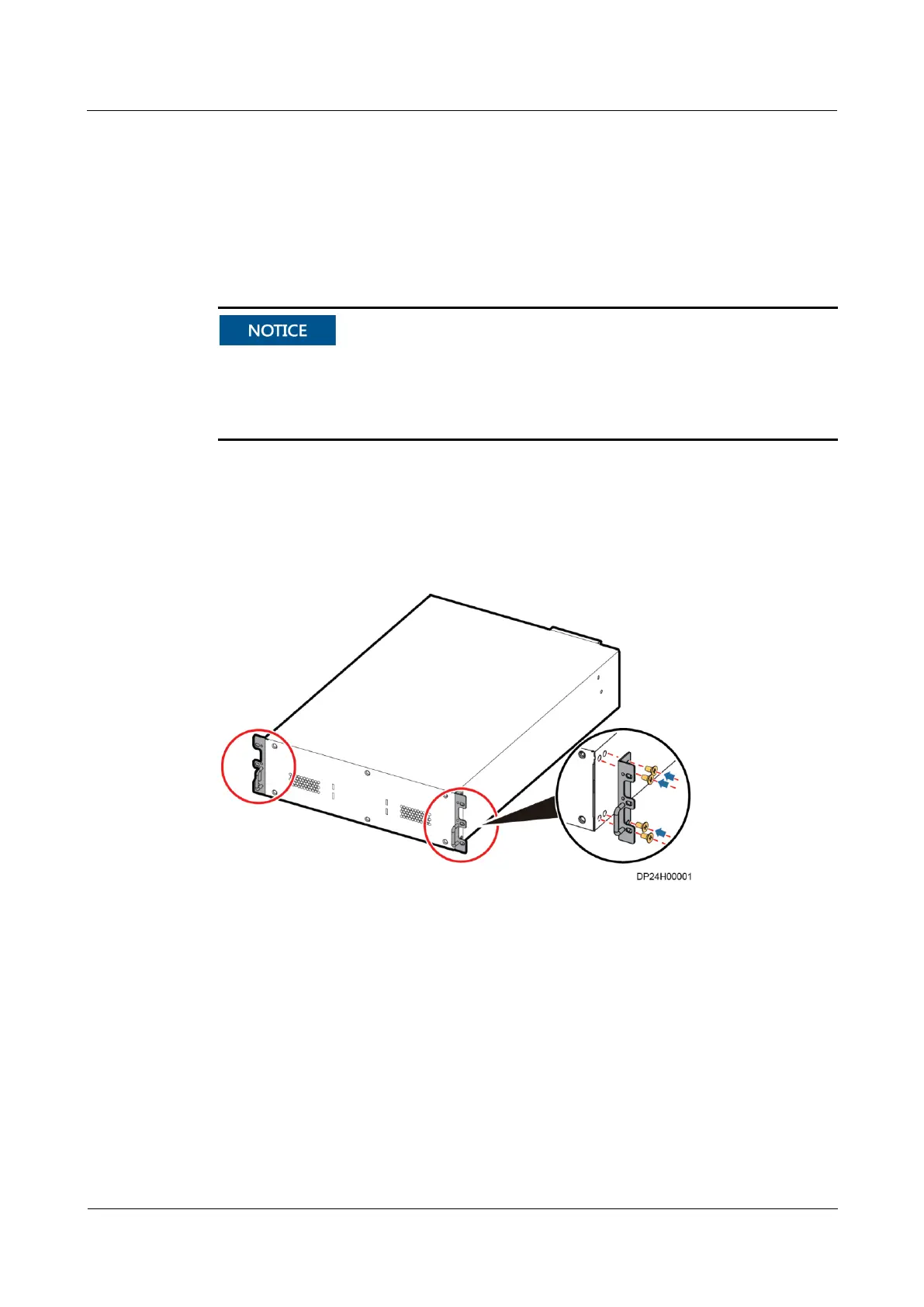

Figure 3-96 Installing mounting ears
Step 2 Install floating nuts at the battery pack installation position.
Step 3 Install heavy guide rails at the battery pack installation position, as shown in Figure 3-97.
