Huawei FusionModule800 Installation Guide

FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
2 Installation Preparations
Issue 10 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
21

The Smart Module can be installed with one side against a wall.

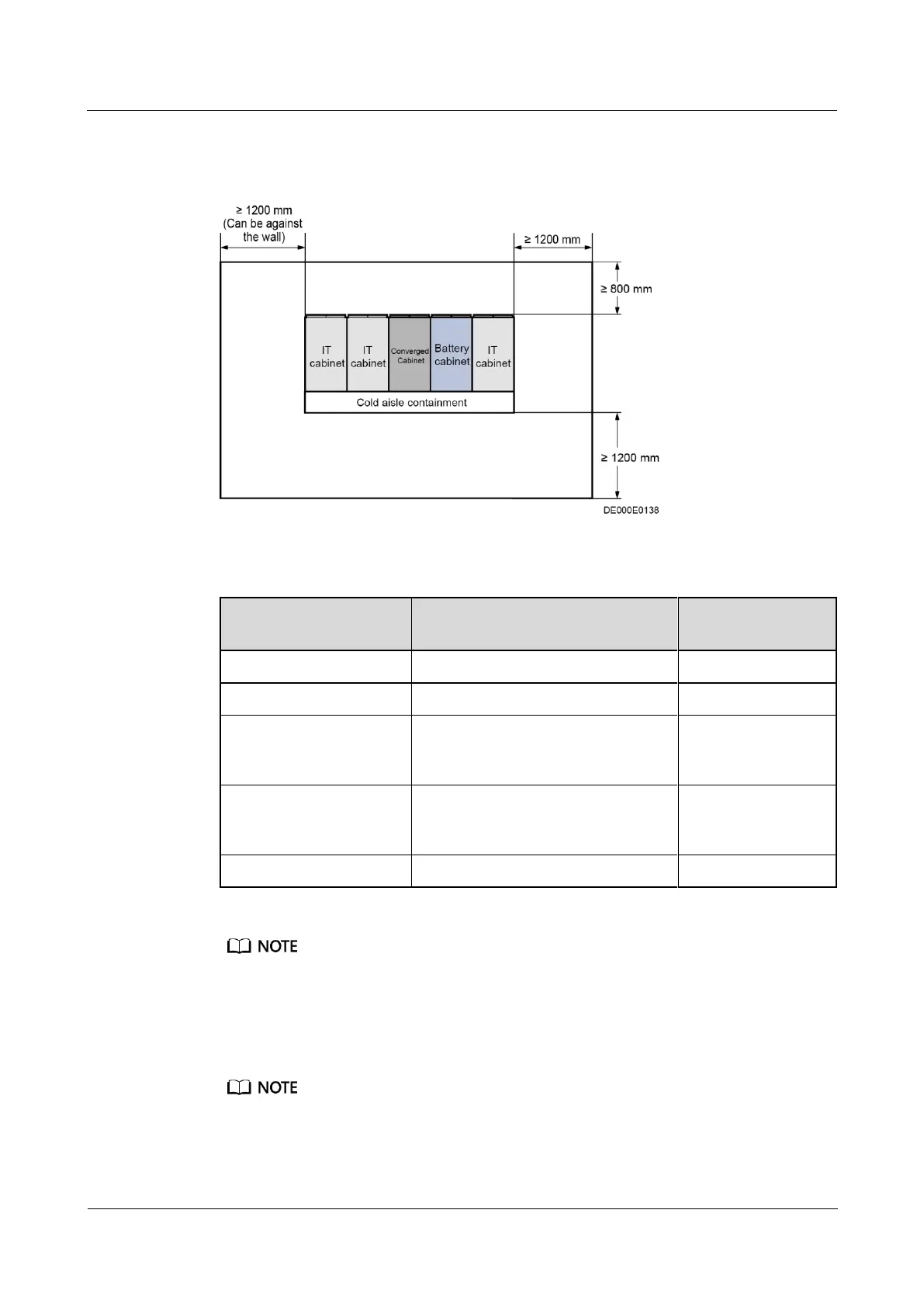

Figure 2-1 Space requirements for a cold-aisle containment
Table 2-6 Cabinet information
Cabinet Type
Dimensions (H x W x D)
Reference Net
Weight
IT cabinet
2000 mm x 600 mm x 1350 mm
160 kg
Converged Cabinet
2000 mm x 600 mm x 1350 mm
410 kg
Battery cabinet (deployed
inside the aisle
containment)
2000 mm x 600 mm x 1350 mm
160 kg
Battery cabinet (deployed
outside the aisle
containment)
2000 mm x 600 mm x 1100 mm (or
1200 mm)
140 kg
Network cabinet
2000 mm x 600 mm x 1350 mm
160 kg
Cabinets and aisle containments are assembled for delivery. The cabinet depth is 1350 mm.
2.4 Installation Scenarios
The component layout illustrates only the positions of components. The actual component installation
positions prevail.
