Try to install an outdoor unit against a wall. If the site conditions cannot meet the
requirements and the local outdoor temperature may be below –10°C (NetCol500-A018)
or 0°C (NetCol500-A020), prepare and install an air baffle by referring to Figure 3-46 on
the following slide. The air baffle height and width should be greater than or equal to the
outdoor unit height and width, respectively.
If the site installation environment is complicated and the preceding conditions are not
met, contact Huawei technical support.
Concrete Base Requirements
Install an outdoor unit on the base to prevent it from falling down in an earthquake or a strong
wind. You can prepare a concrete base onsite by referring to Figure 3-44.

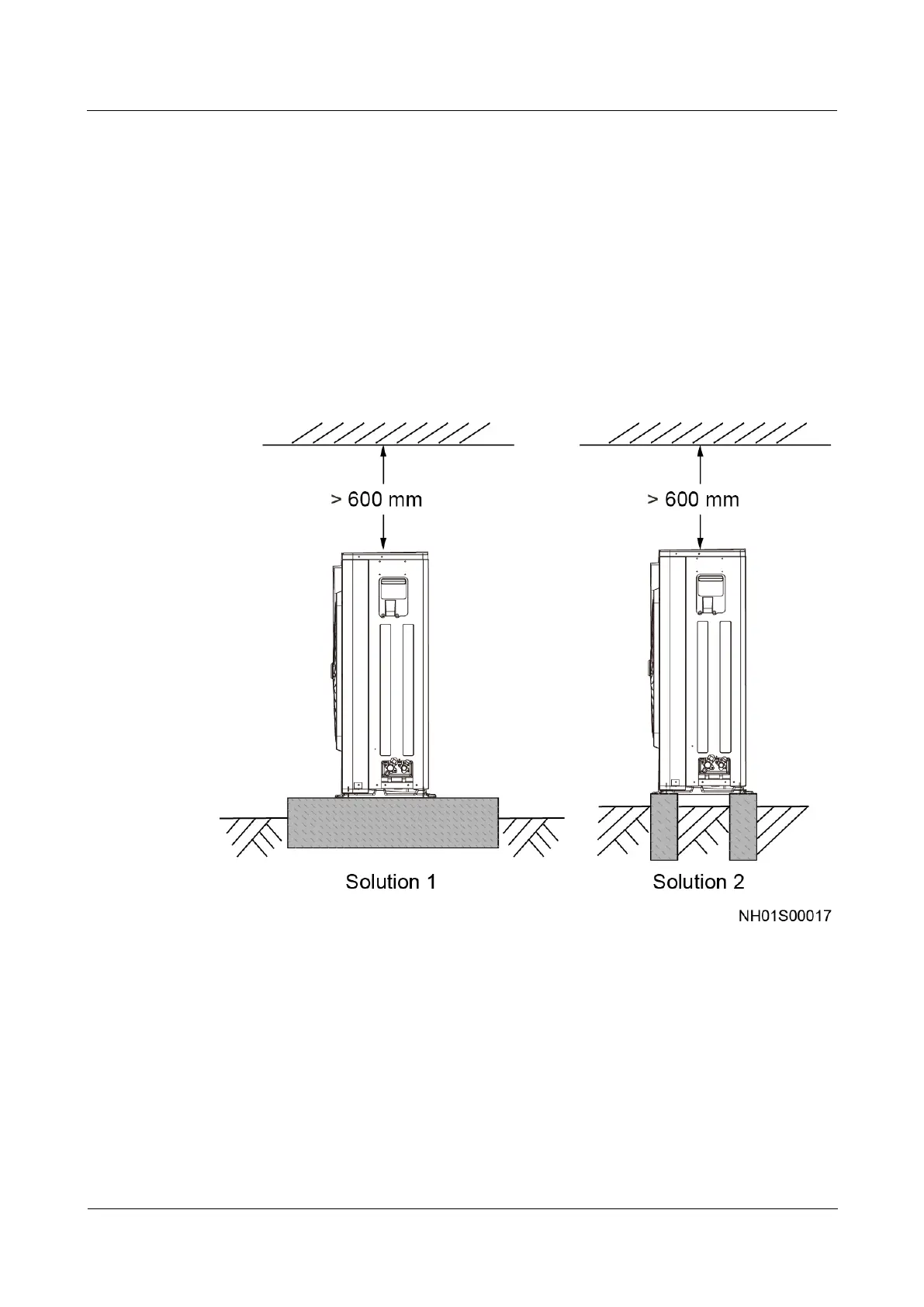

Figure 3-44 Concrete base requirements
3.7.4.2 Space Requirements
Single Outdoor Unit
A single outdoor is recommended to be installed against a wall, as shown in Figure 3-45.
