Huawei FusionModule800 Installation Guide

FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
A Appendix
Issue 10 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
280

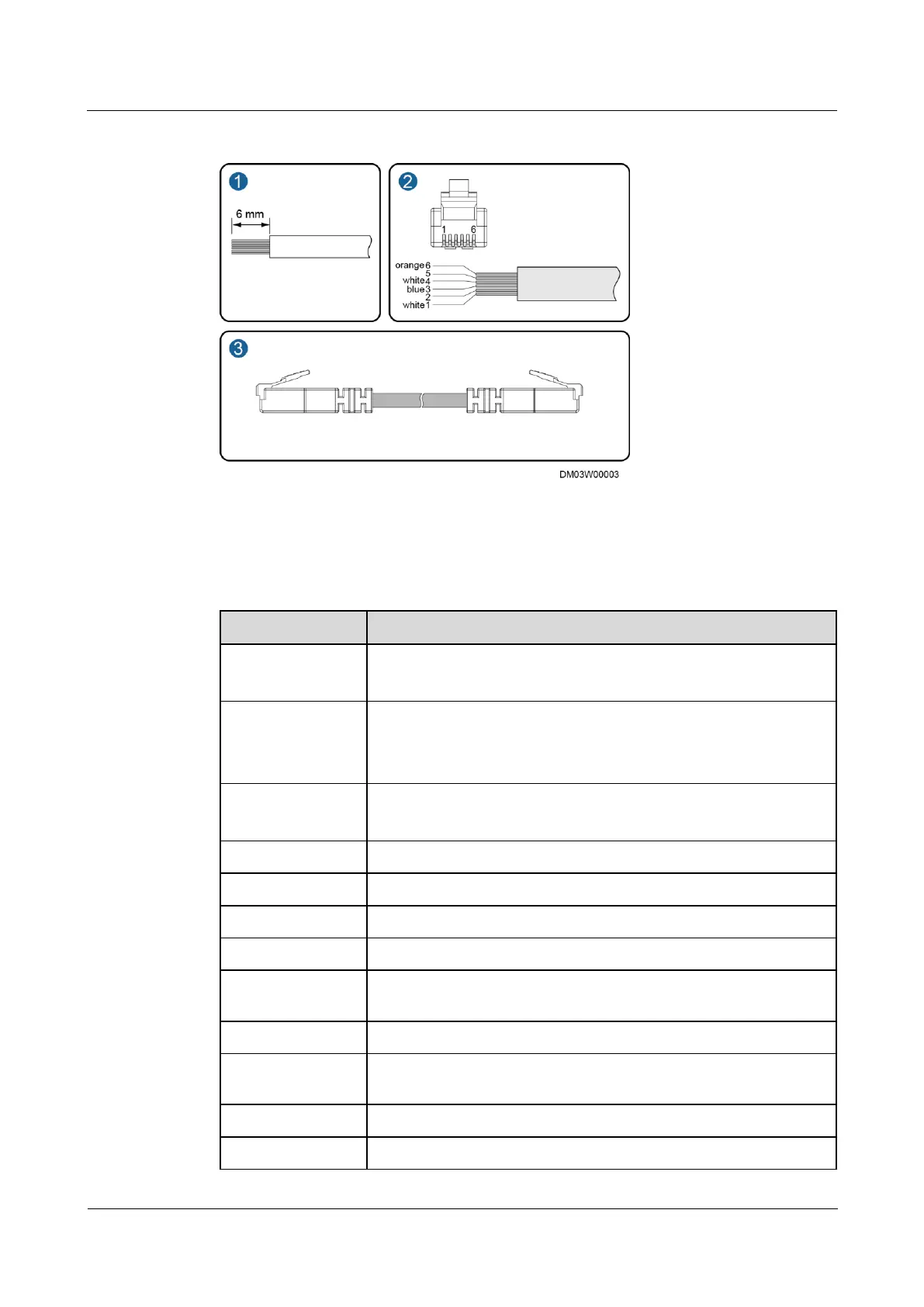

Figure A-5 Preparing monitoring cables (RJ12)
A.3 Cable list
Table A-2 Cable list
BOM Number
Cable Position
04092766

Emergency fan power cable

Cable from the smart cooling product to the T/H sensor
04092767

Power cable from the ECC800 to the smart ETH gateway

Signal cable from the ECC800 to the smart ETH gateway

Cable from the smart ETH gateway to the iBOX
04092768

Cable from the door status sensor to the AI/DI module

Cable from the AI/DI module to the ECC800
04070794
T/H sensor cascading cable
04070008
Cable from the camera to the smart ETH gateway
04150547
Cable between battery packs
04150671
Cable from the battery pack to the 10 kVA UPS
04151746
Cable from the battery pack to the 20 kVA UPS (required for N or
2N configuration)
04151745
Cable from the battery cabinet to the 10 kVA UPS
04151745-001
Cable from the battery cabinet to the 10 kVA UPS deployed outside
the aisle containment
04151748
Cable from the battery cabinet to the 20 kVA UPS
04151748-001
Cable from the battery cabinet to the 20 kVA UPS deployed outside
