FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.
The exit button is connected to the access actuator by a network cable.
Step 5 Route the cable through the cable hole.
Step 6 Reinstall the exit button and the cover.
----End
3.11.20 (Optional) Installing an In-Room Emergency Door Release
Button
Context
The BOM number of an emergency door release button is 02070053.
It is recommended that the device be installed outside a room 1.6 m above the floor.
Procedure
Step 1 Remove the emergency door release button.

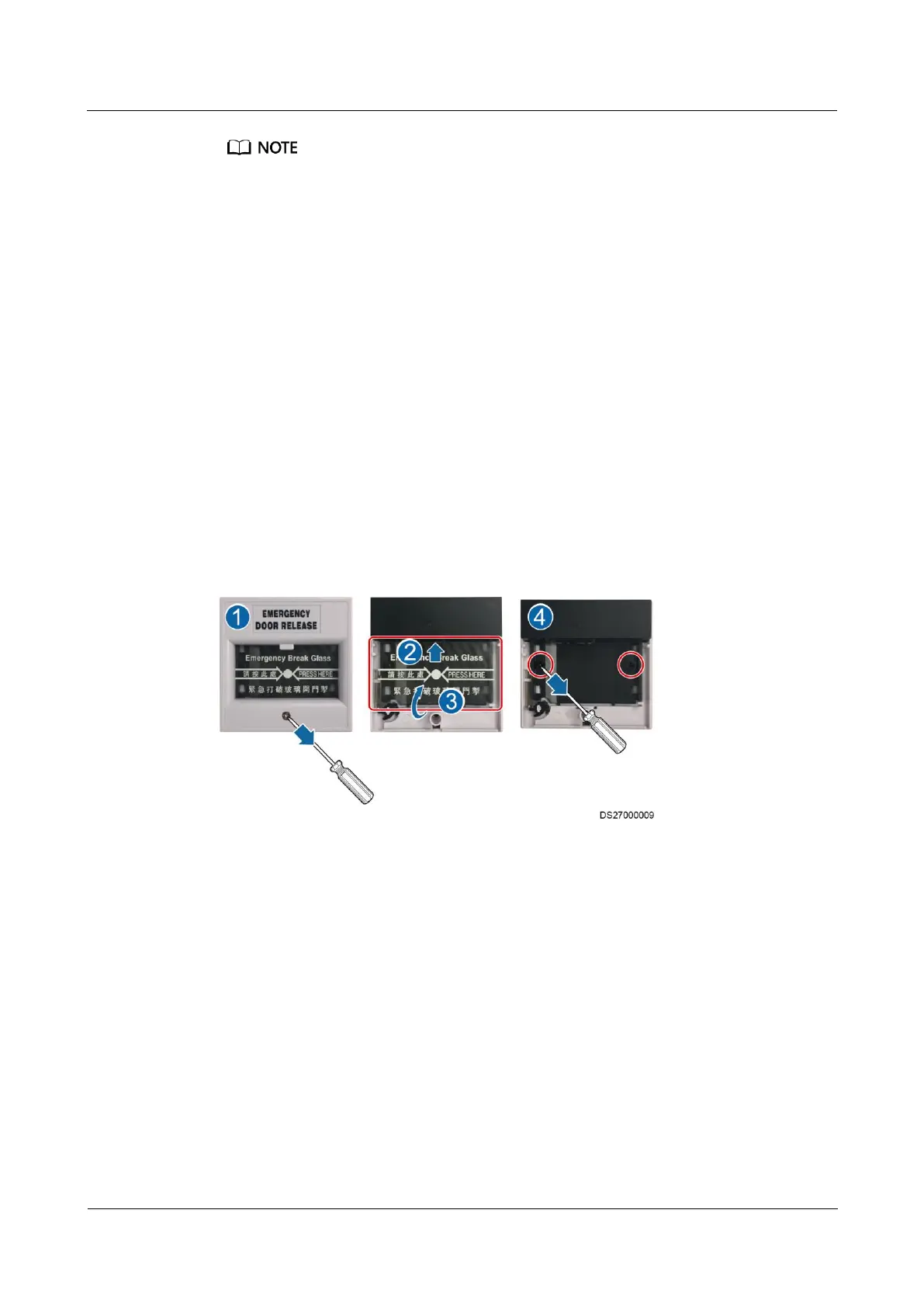

Figure 3-226 Removing an emergency door release button
1. Remove screws from the emergency door release button using a Phillips screwdriver, as
shown by (1) in Figure 3-226.
2. Remove the glass panel of the emergency door release button, as shown by (2) and (3) in
Figure 3-226.
3. Remove screws from the base, and remove the base, as shown by (4) in Figure 3-226.
Step 2 Mark the mounting holes using a marker and the base.
