FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

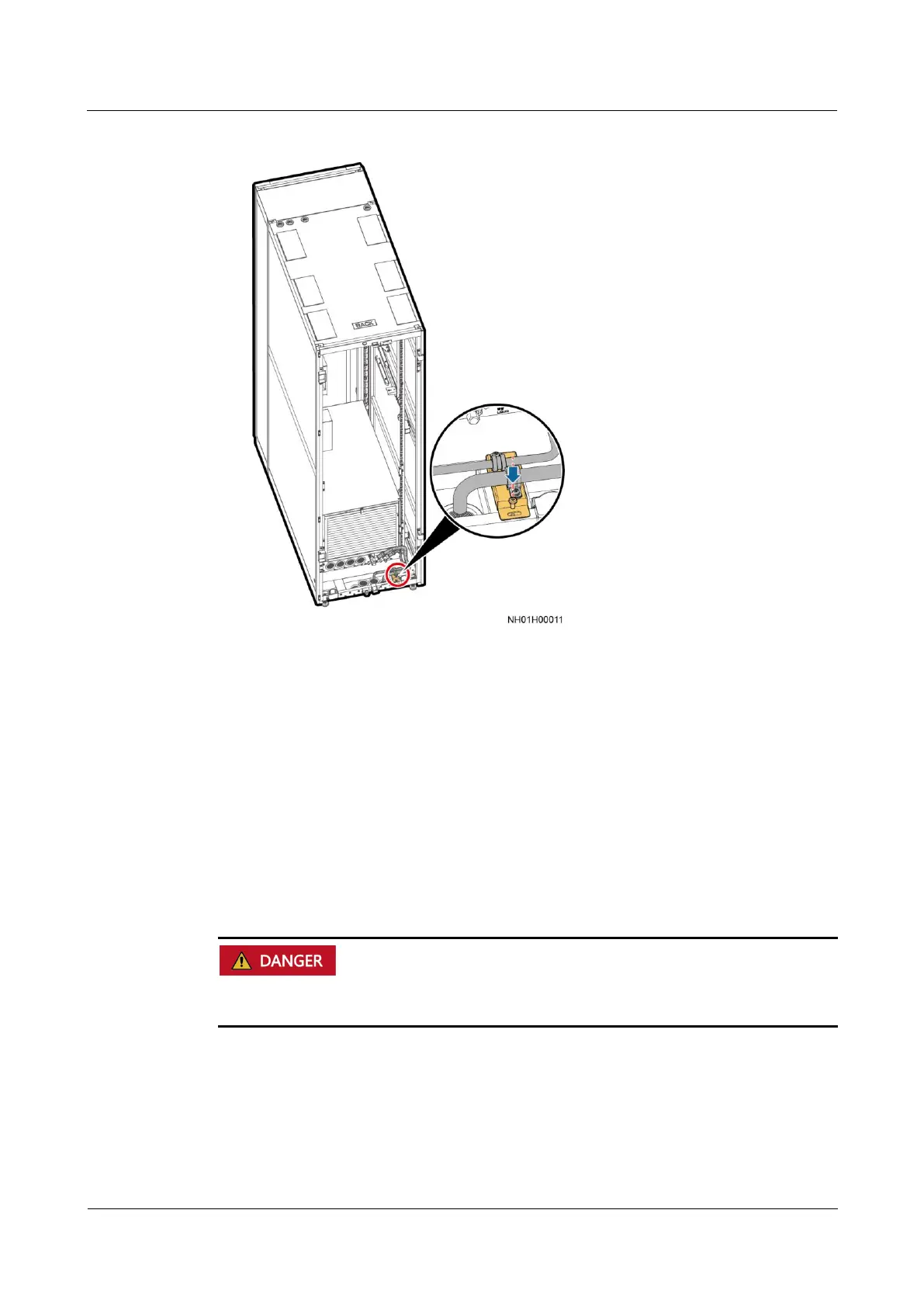

Figure 3-59 Bottom pipe routing inside the IT cabinet
3.7.6.2 Laying Out Pipes Outside a Cabinet
Prerequisites
Check that the nuts on the needle valve and rear cover of the smart cooling product are
tightened.
Context
Tools: adjustable wrench (250 mm x 30 mm), hex key (5 mm), torque wrench
(17#/19#/27#/30#/36#)
Before welding, exhaust all nitrogen from the refrigerant pipe to avoid explosion and personal
injury.
