FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.
3.10.1 Removing a Binding Plate
Prerequisites
A cable trough is determined to be installed.
Context
Install a binding plate at the top of the cabinet, as shown in Figure 3-99.

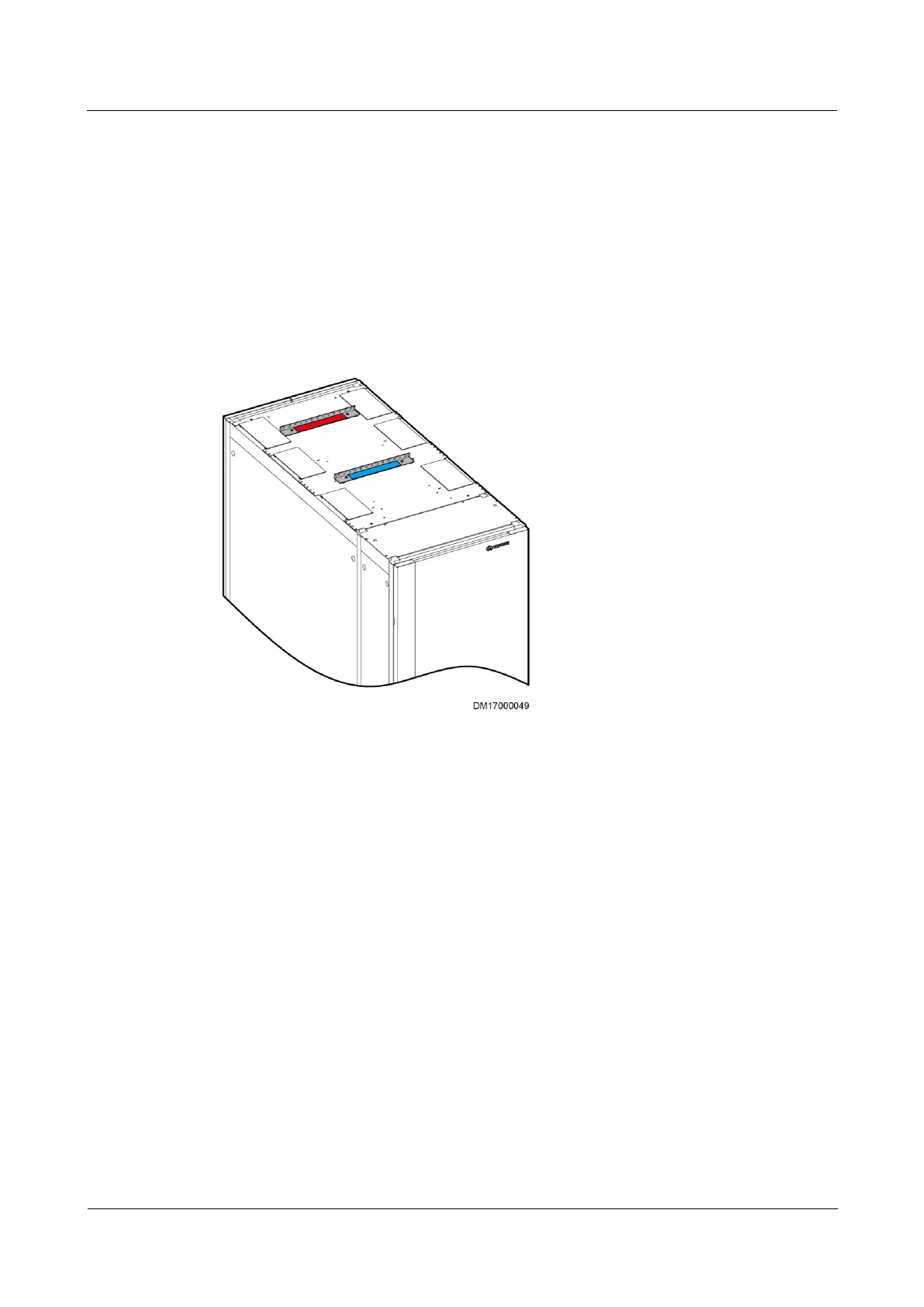

Figure 3-99 Binding plate installation position
Procedure
Step 1 Remove the two M5 tapping screws from the binding plate and then remove the binding plate
from the cabinet top, as shown in Figure 3-100.
