3.11.16 (Optional) Installing an In-Room Fingerprint and Card
Reader with a Keypad
Context
The BOM number of a fingerprint and card reader with a keypad is 02070174.
It is recommended that the device be installed outside a room 1.4-1.6 m above the floor.
Do not install the product in a place with heavy dust or exposed to sunlight.
Procedure
Step 1 Remove the screws (set aside) from the fingerprint and card reader with a keypad and take off
the baseplate, as shown by (1) in Figure 3-220.

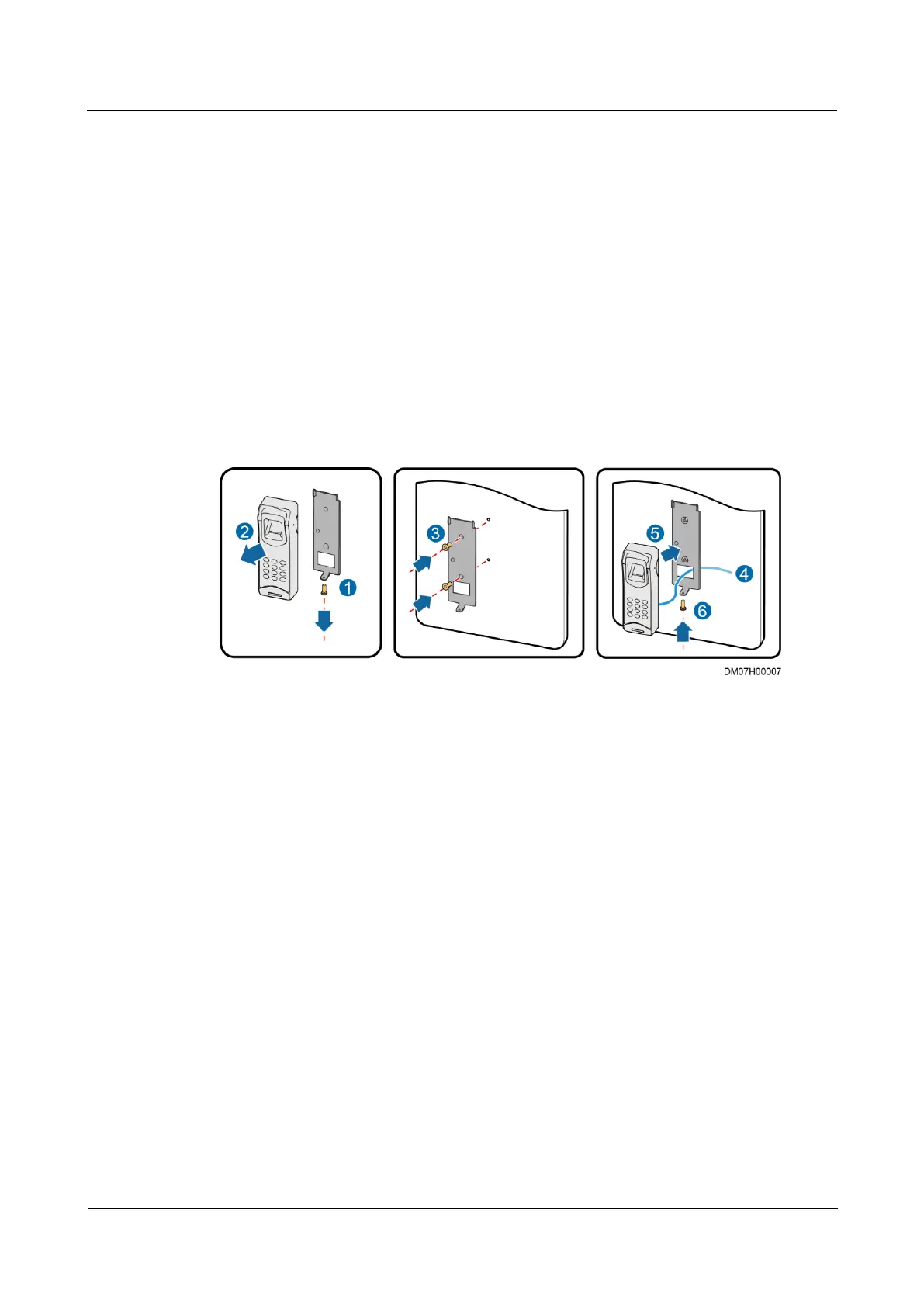

Figure 3-220 Installing a fingerprint and card reader with a keypad
Step 2 Mark the mounting holes using a marker, and drill holes using a hammer drill.
