Huawei FusionModule800 Installation Guide

FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
3 Hardware Installation
Issue 10 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
186

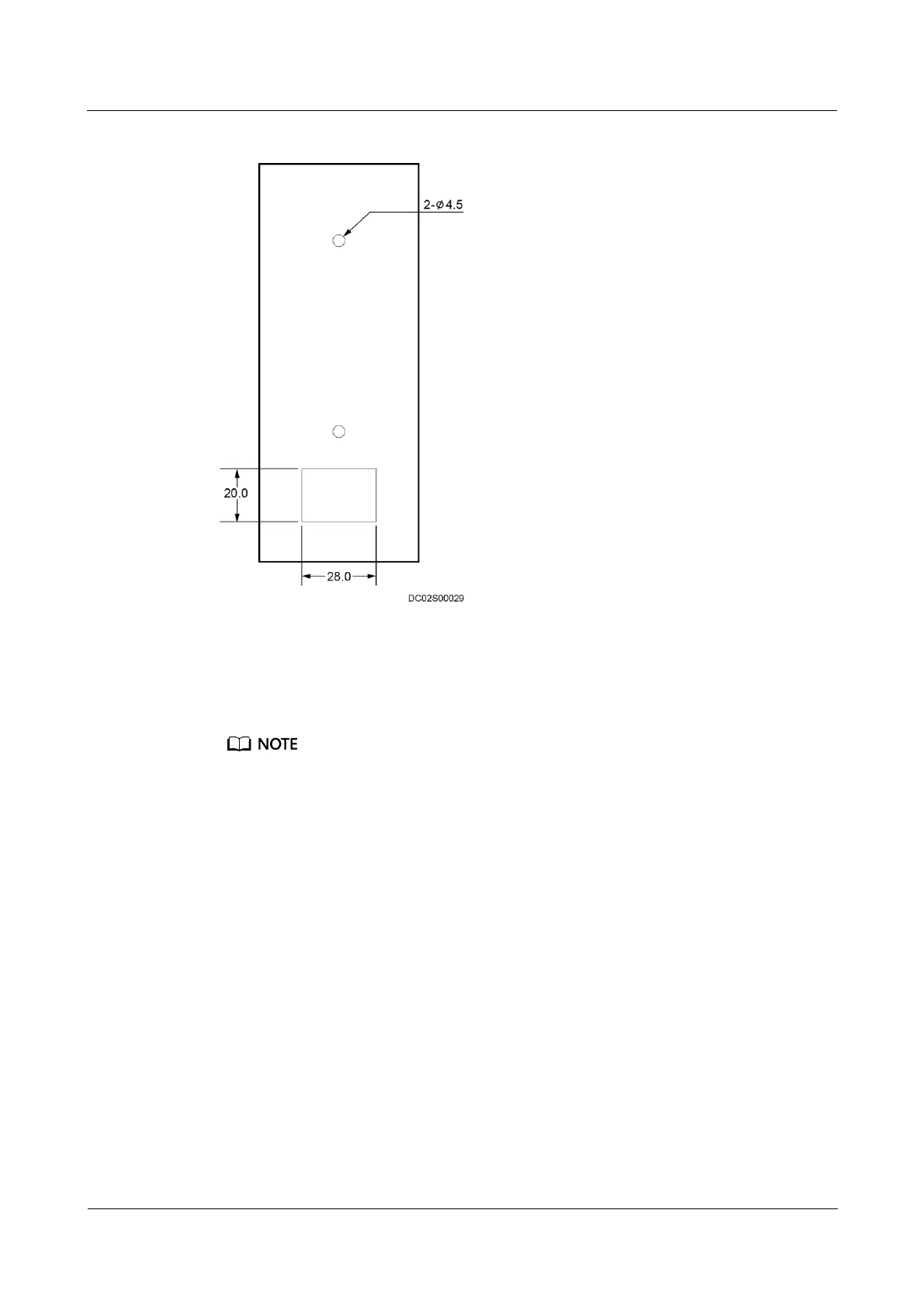

Figure 3-221 Marking mounting holes (unit: mm)
Step 3 Install the baseplate, as shown by (3) in Figure 3-220.
Step 4 Route the cable of the fingerprint and card reader with a keypad through the cable hole in the
baseplate, as shown by (4) in Figure 3-220.
The fingerprint and card reader with a key pad is connected to the access actuator by a network cable.
Step 5 Check that cables are correctly connected.
Step 6 Secure the fingerprint and card reader with a keypad to the baseplate, as shown by (5) and (6)
in Figure 3-220.
----End
3.11.17 (Optional) Installing an In-Room Fingerprint and Card
Reader
Context

The BOM number of a finger and card reader is 02070173.

It is recommended that the device be installed outside a room 1.4-1.6 m above the floor.

Do not install the product in a place with heavy dust or exposed to sunlight.
