FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
2 Installation Preparations
Copyright © Huawei Technologies Co., Ltd.
2.5 Smart Cooling Product Installation
Installation Dimensions
Smart cooling product outdoor units are available in two models, NetCol500-A018 and
NetCol500-A020. Figure 2-5 and Figure 2-6 show the dimensions of NetCol500-A018 and
NetCol500-A020.
NetCol500-A018 and NetCol500-A020 are installed in the same way. This manual uses figures of
NetCol500-A018 as examples.

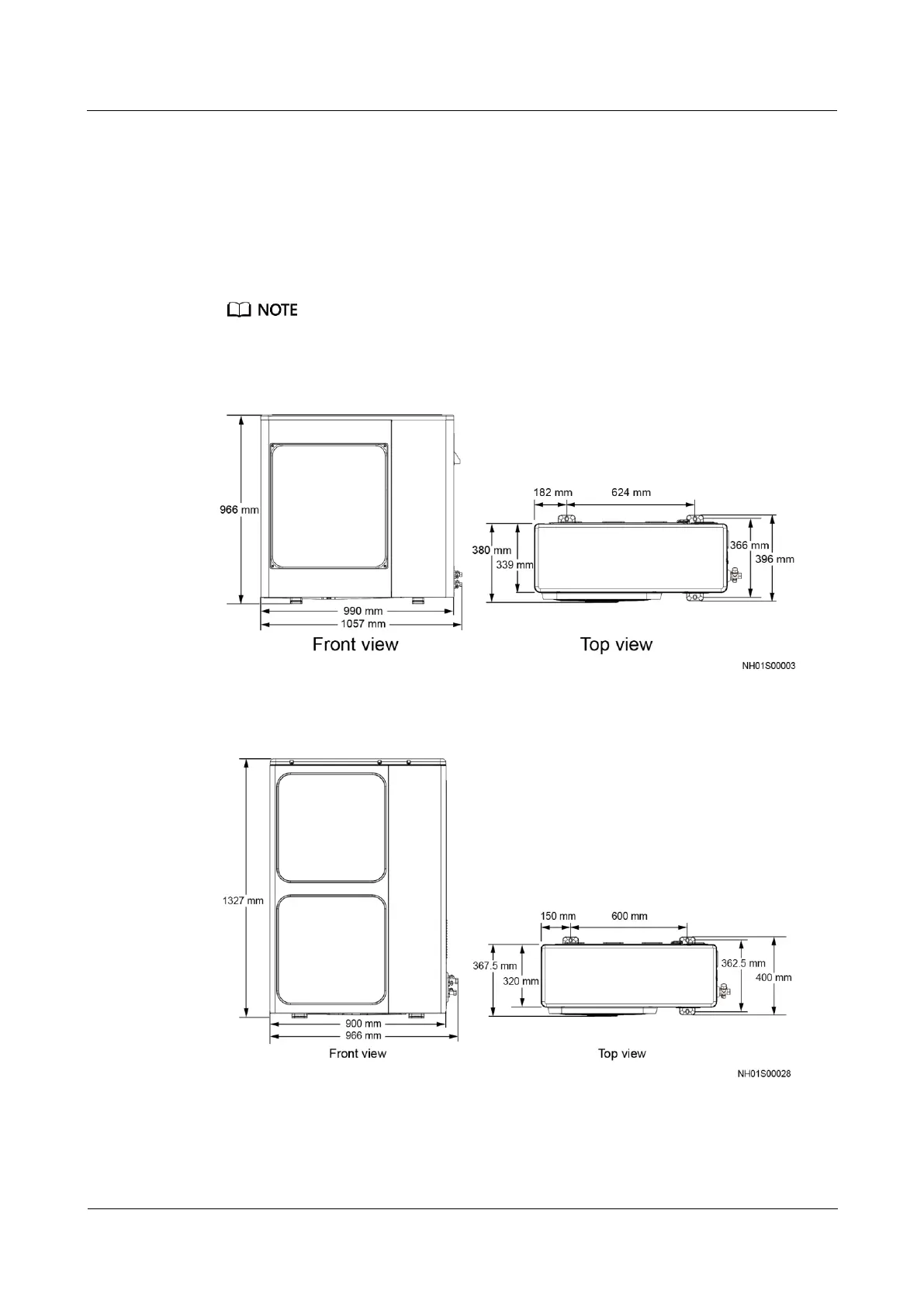

Figure 2-5 Installation dimensions of NetCol500-A018
Figure 2-6 Installation dimensions of NetCol500-A020
