After routing water pipes, secure them to the pipe assembly using cable ties, and seal the
cable hole using firestop putty.
----End
3.7.7.2 Connecting the Condensate Drainpipe
Context
The smart cooling product condensate drainpipe inside the cabinet can be routed from top or
bottom. Determine the pipe routing mode based on site conditions.
In top pipe routing, connect the drainpipe to the check valve and then to the cabinet top. The
drain outlet reserved on the top of the cabinet connects to an external pipe over the drainpipe
connector in the fitting bag.
In bottom pipe routing, the drainpipe connects to an external pipe over the drainpipe
connector in the fitting bag.
Figure 3-70 shows how to connect a drainpipe.

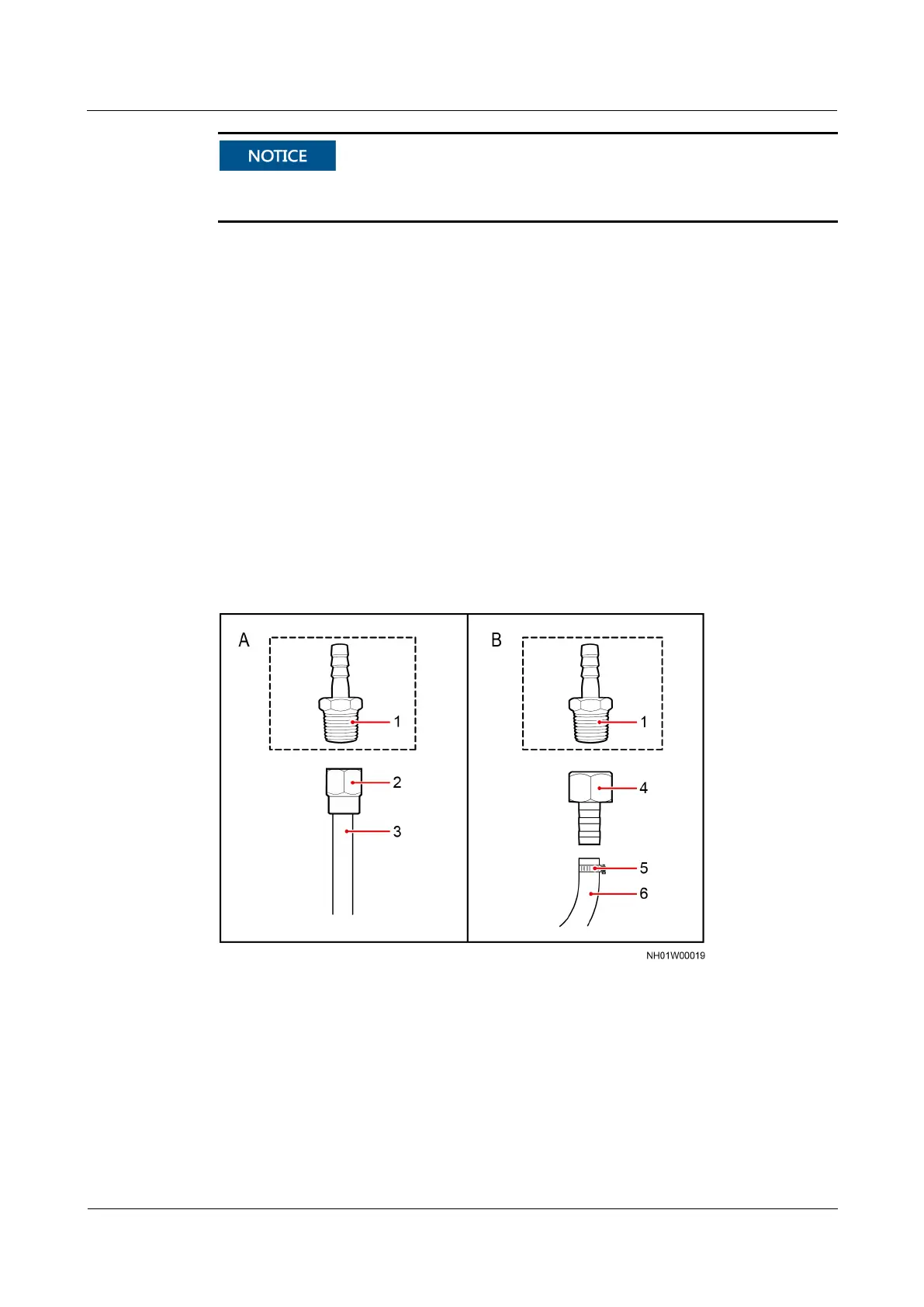

Figure 3-70 Connecting a drainpipe
(1) Drainpipe connector: BSPT
1/2-inch, delivered with the
smart cooling product
(2) Rigid pipe conversion adapter:
BSPP 1/2 inch; connected to a
rigid pipe with inner screw threads
(3) Rigid pipe:
made of PP-R or
other material
(4) Pagoda conversion adapter:
BSPP 1/2 inch; connected to a
pipe with inner screw threads
(6) Hose: made of
EPDM or other
material
