FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

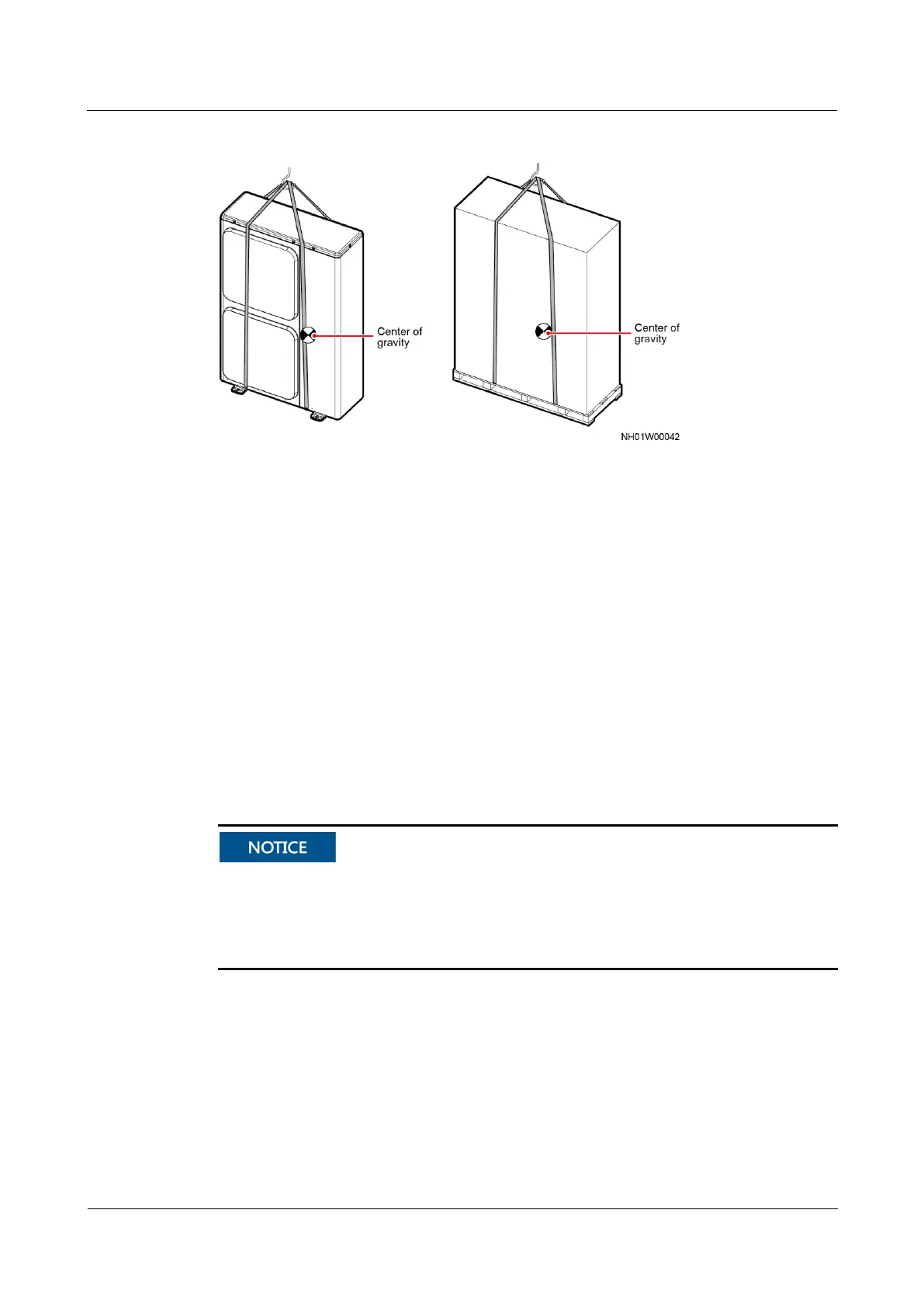

Figure 3-9 Hoisting a NetCol500-A020 outdoor unit
----End
3.2 (Optional) Removing Aisle Containments
Prerequisites
The cabinets have been transported to the destination and unpacked.
Context
If the site elevator is too small to transport a cabinet, remove the aisle containment from the
cabinet. Reassemble them after transporting them to the installation position. Then perform
subsequent operations.
The cabinet front door is made of glass. Pay attention to the following during transportation:
Move the cabinet gently.
Ensure that the glass door does not collide with sharp objects.
Place the glass door stably and reliably.
Procedure
Step 1 Open the cabinet front door 120°.
Step 2 (Optional) Cut off the cable tie on the PAD cable in the Converged Cabinet, and pull the cable
into the cabinet through the front door, as shown in Figure 3-10.
