Huawei FusionModule800 Installation Guide

FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
4 Cable Routing
Issue 10 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
219

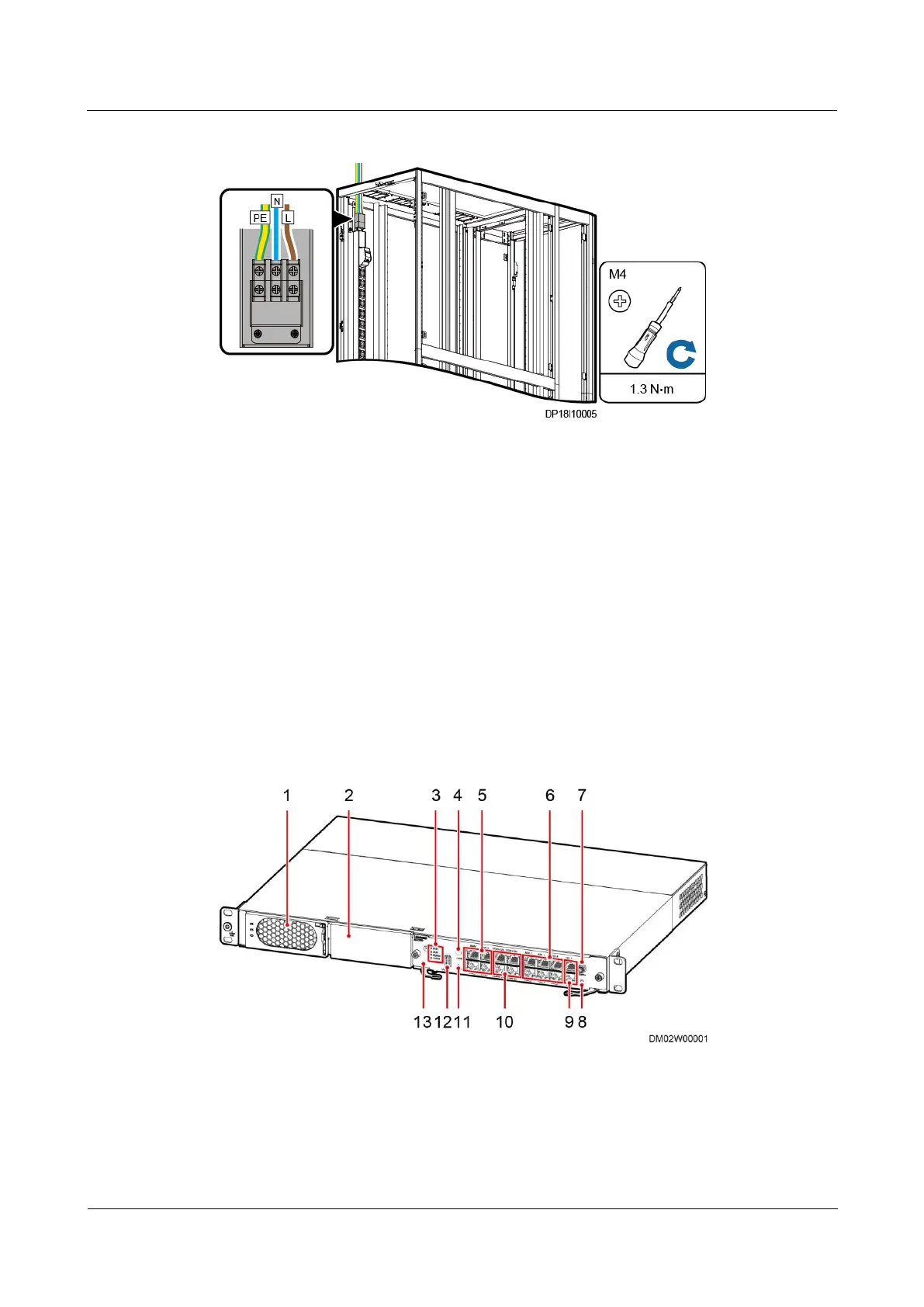

Figure 4-34 Connecting a PDU2000 power cable
Step 2 Connect other PDU2000 power cables in the same way.
----End
4.5.4 Connecting Cables Between the Battery and the UPS
For details, see the manual delivered with the UPS.
4.6 Management System Cable Connection
4.6.1 ECC800 Ports
Figure 4-35 ECC800 external ports
(1) PSU
(2) Filler panel
(3) Status indicator
(4) 3G/4G antenna port
(5) FE port (WAN_1–2 and
LAN_1–2)
(6) AI/DI_1–6 sensor
input port
(7) RF_Z antenna port
(8) SW button
(9) DO_1–2 dry contact
