FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.
----End
3.11.13 (Optional) Installing an In-Room Access Actuator
Context
The BOM number of an access actuator is 52271874.
It is recommended that the access actuator be installed 0.5 m away from the door edge
and 2.2 m above the floor at the inner side of a door.
The communication distance (network cable length) between the access actuator and the
access control device should not exceed 5 m. If the distance exceeds 5 m, prepare the cable
onsite.
Before installing the access actuator, install a cable trough or drill a cable hole in the wall,
and route the lead into the trough or hole.
Procedure
Step 1 Take out the waterproof box and remove its cover.

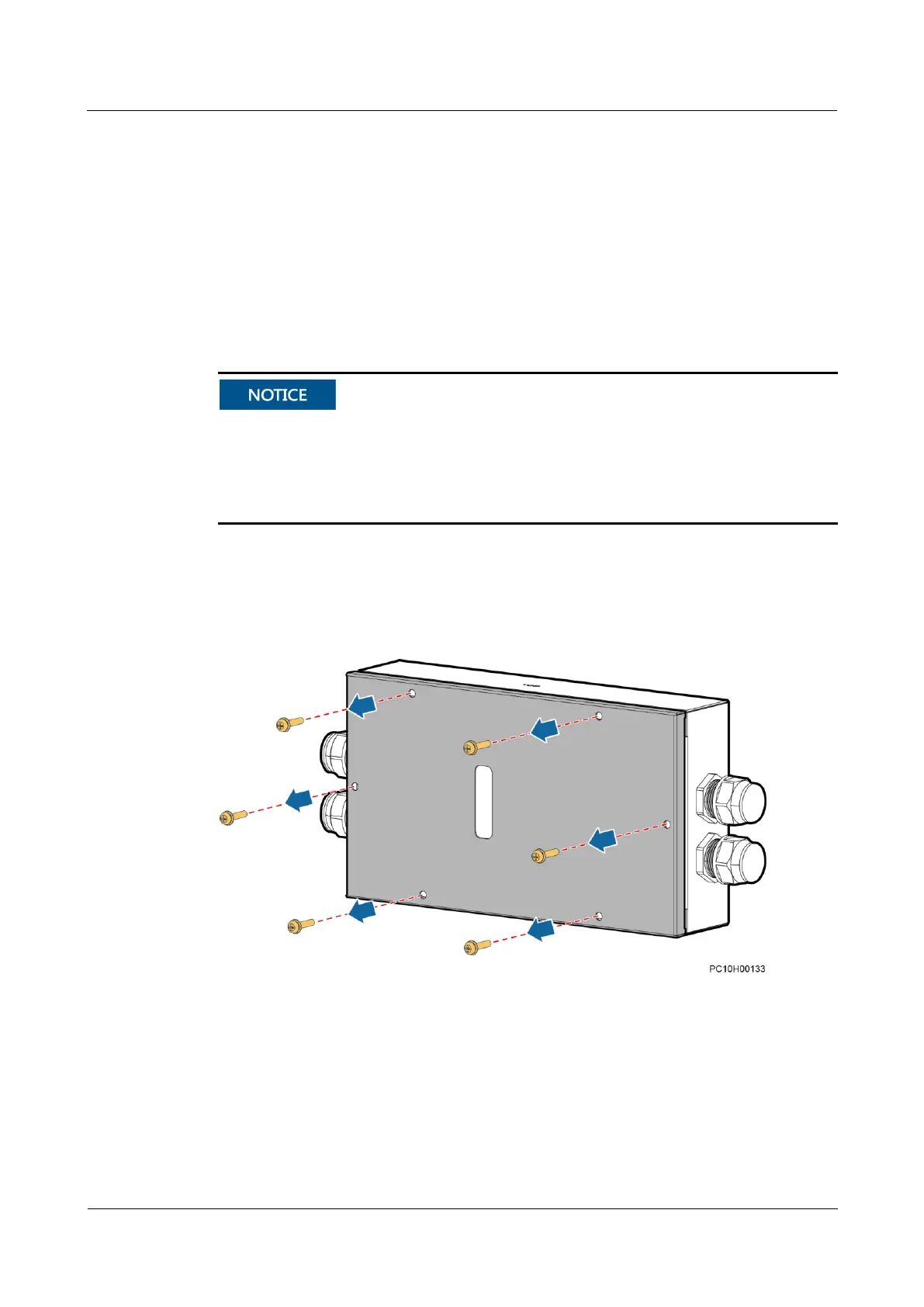

Figure 3-204 Removing the cover of a waterproof box
Step 2 Take out the delivered marking-off template, and mark the mounting holes in the installation
position.
Step 3 Drill holes and install expansion anchor bolt sleeves.
1. Drill holes into the wall to a depth of 45-50 mm using a hammer drill. Partially tighten
the expansion bolts and vertically insert them into the holes. Knock the expansion anchor
bolts using a rubber mallet until the expansion sleeves are fully inserted into the holes.
