FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

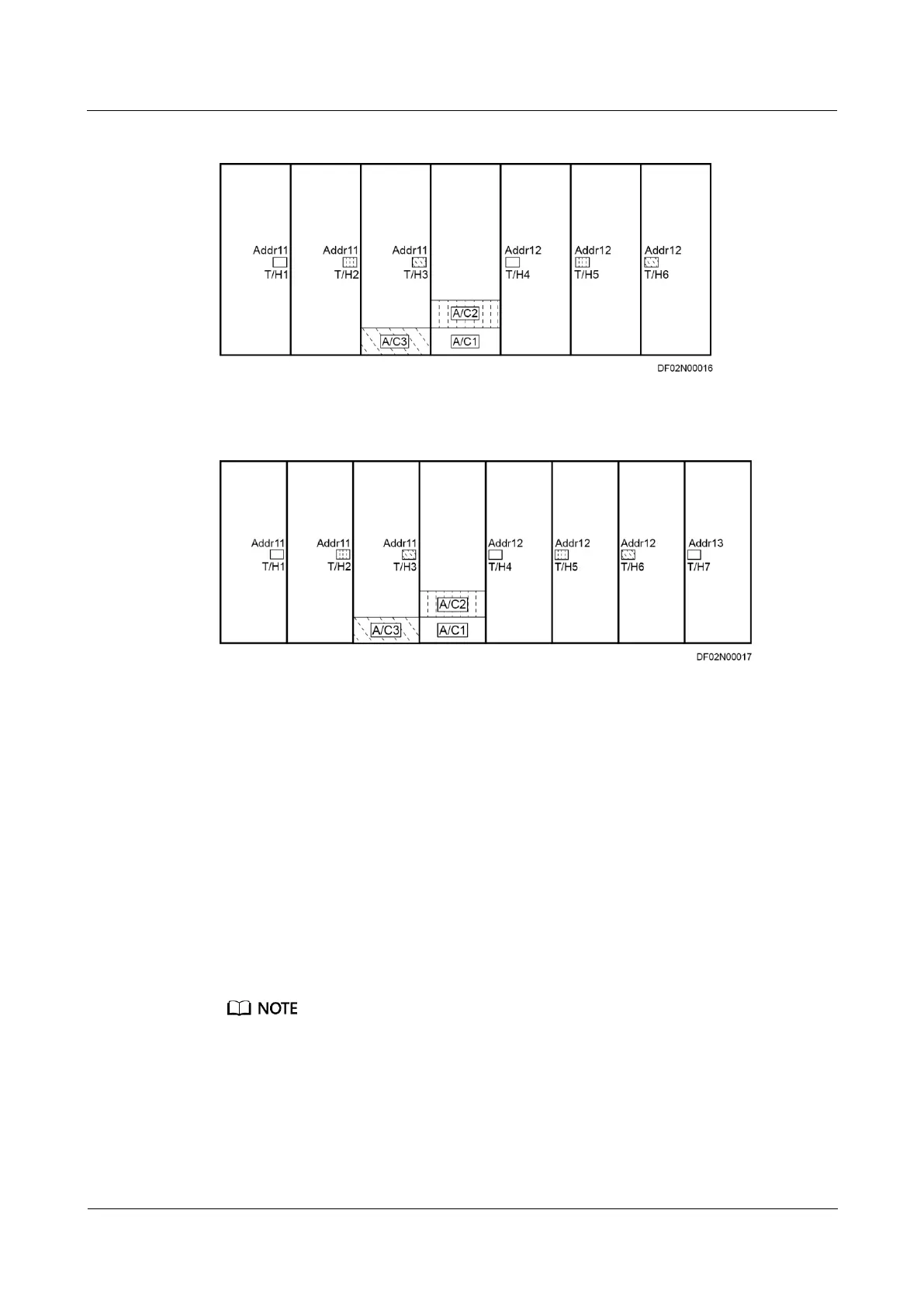

Figure 3-176 T/H sensor layout and DIP switch address (3 smart cooling products for 7 cabinets)
Figure 3-177 T/H sensor layout and DIP switch address (3 smart cooling products for 8 cabinets)
----End
3.11.8 Installing a Camera
Prerequisites
A camera and tools for installing it have been prepared.
The network cable used for camera communication has been prepared.
Context
This section describes how to install and commission a camera. Two persons are required for
the commissioning.
This series of cameras support only microSD cards (SD cards for short).
For the camera installation method, see the documents delivered with the camera.
Install the camera at the front left position in the aisle and ensure that the camera can monitor
the entire front area of the smart module, especially PAD operations.
