Huawei FusionModule800 Installation Guide

FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
4 Cable Routing
Issue 10 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
225
Procedure
Step 1 Disconnect the male and female connectors on the cable delivered with the smoke detector, as
shown in Figure 4-41.

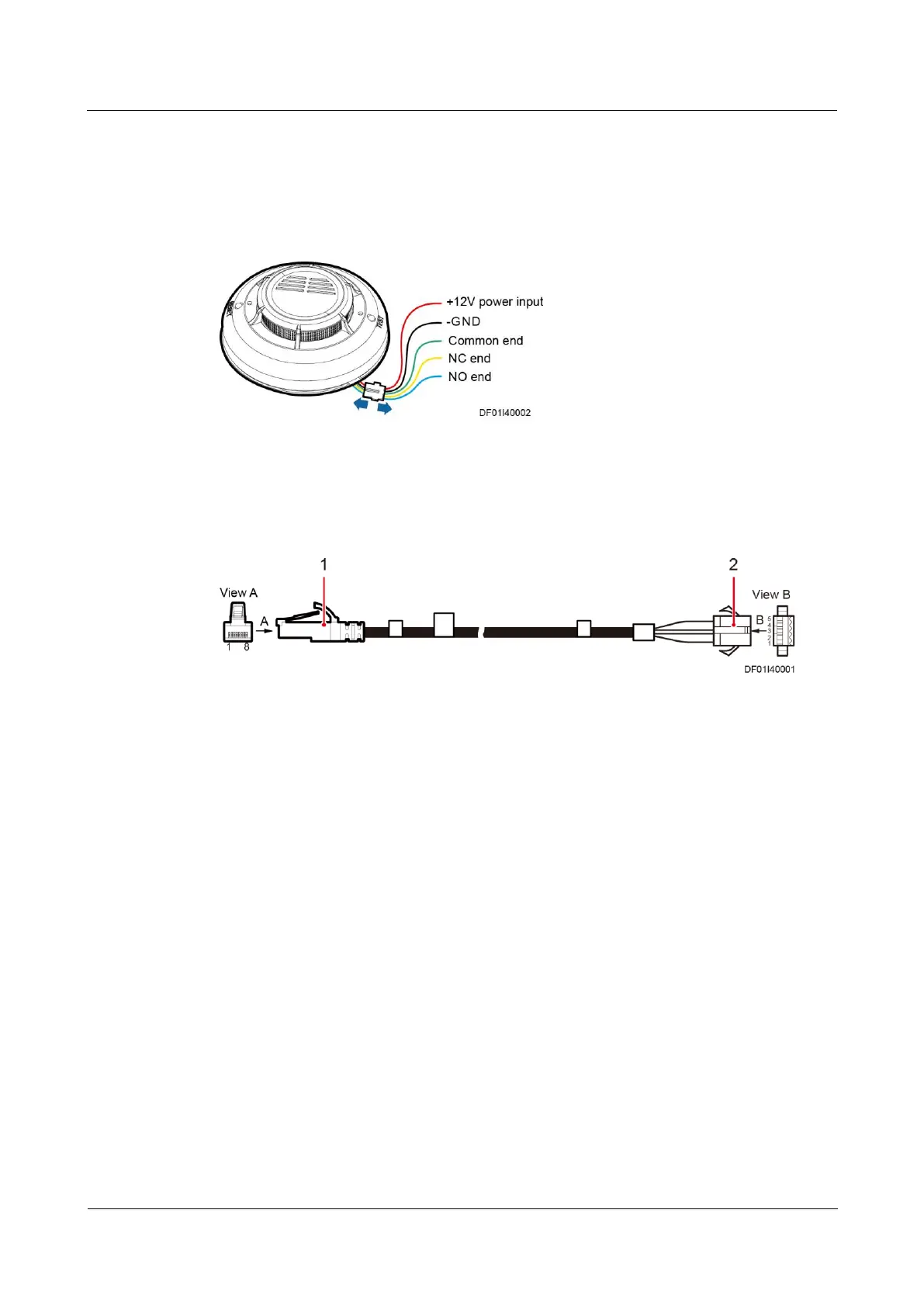

Figure 4-41 Disconnect the connectors on the cable delivered with the smoke detector
Step 2 Connect the non-RJ45 end (shown by (2) in Figure 4-42) of the delivered cable to the male
connector of the smoke detector.
Figure 4-42 Smoke detector cable connection
(1) RJ45 connector
(2) Conversion terminal
----End
4.6.7 Connecting Cables to Water Sensors
Prerequisites

Water sensor cables have been routed.

A monitoring cable required has been prepared.
Procedure
Step 1 Connect one end of the network cable that has been laid near the water detector to the
Ethernet port on the water detector.
----End
