Step 8 Install the cable trough above the rear door in a similar way.
----End
3.10.3 Installing an 800 mm Wide Cable Trough
An 800 mm wide cable trough (BOM number: 21501140) is installed on the top of an 800
mm wide cabinet. The installation method is similar to the method for installing a 600 mm
wide cable trough. For details, see 3.10.2 Installing a 600 mm Wide Cable Trough.
3.11 Installing Monitoring Devices
3.11.1 Installing the SIM Card and Antenna
If a subscriber identity module (SIM) card and an antenna are configured, perform the
following steps to install them.
Procedure
Step 1 Record the position of the signal cable connected to the panel of the ECC800 main control
module, and then disconnect the signal cable.
Step 2 Remove the ECC800 main control module, and then insert the SIM card into the left slot of
the ECC800 main control module.
The SIM card needs to support global system for mobile communications (GSM) or wideband code
division multiple access (WCDMA).

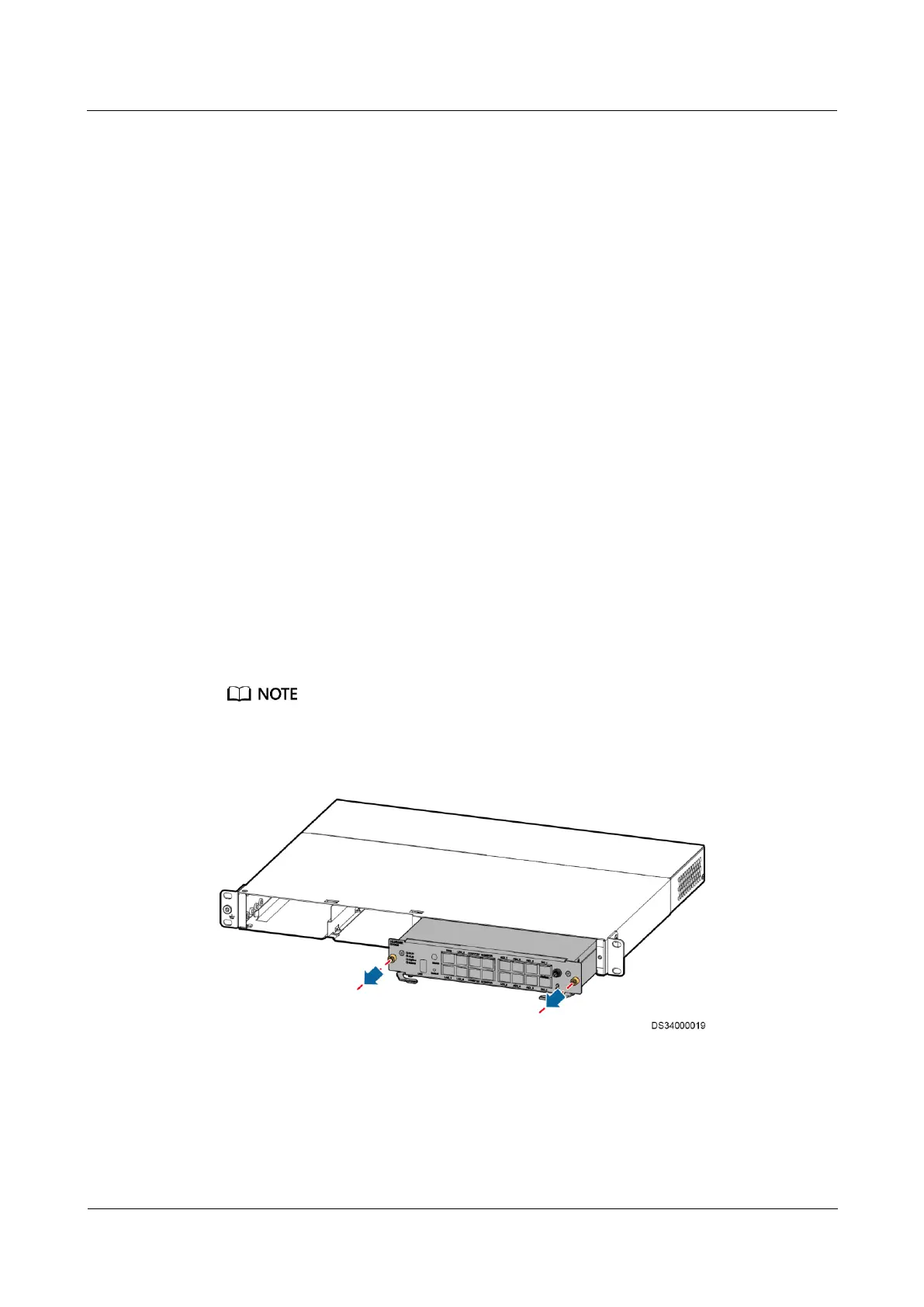

Figure 3-108 Removing the ECC800 main control module
