JUKI RS-1 User Manual

Maintenance Guide
1-5

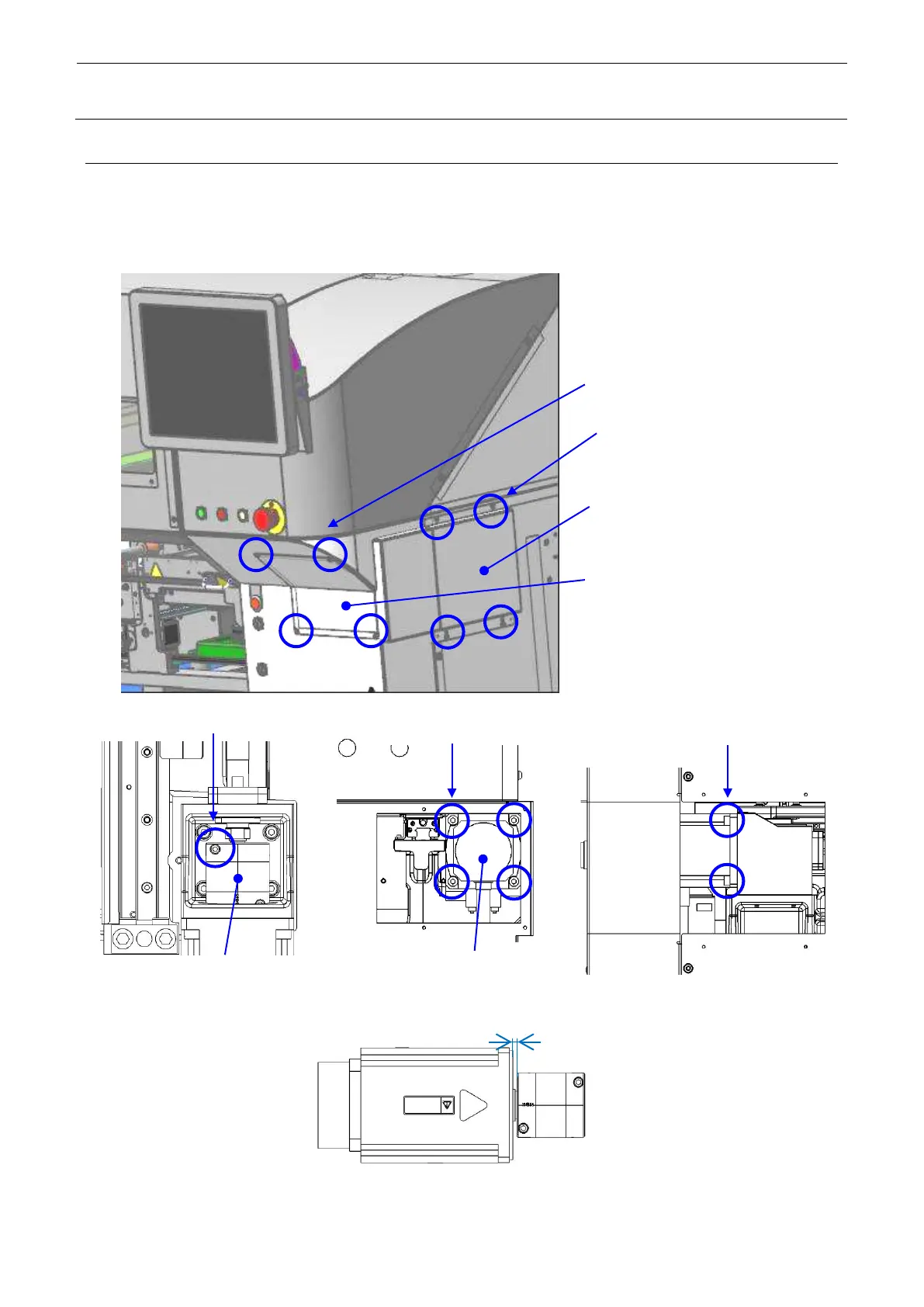

1-1-3. Replacing the YR-Motor
1) Remove the SL3061232TN to detach the COVER_FBR.
2) Remove the SL6041092TN, NM3060810SF to detach the SUB_COVER_FUR.
3) Loosen the COUPLING_Y_screw (do not remove the screw at this time) and disconnect the
connector of the SERVO MOTOR 1500W cable.
4) Remove the SL6082002TN and replace the SERVO MOTOR 1500W.
Figure 1-1-3-1
Figure 1-1-3-2
Figure 1-1-3-3
Figure 1-1-3-4
SERVO MOTOR 1500W
SM6082002TN (×4)
SM6082002TN
Figure 1-1-3-5
COUPLING_Y
COUPLING Y screw
B COVER SCREW（×4）
MOTOR COVER
B COVER SCREW（×4）
COVER SUR F MOTOR BR
