3) Loosen the setscrew to detach the support table assembly.
4) Remove the torque supporter assembly setscrews and motor fixing screws to detach the
torque motor supporter assembly and motor from the bracket.

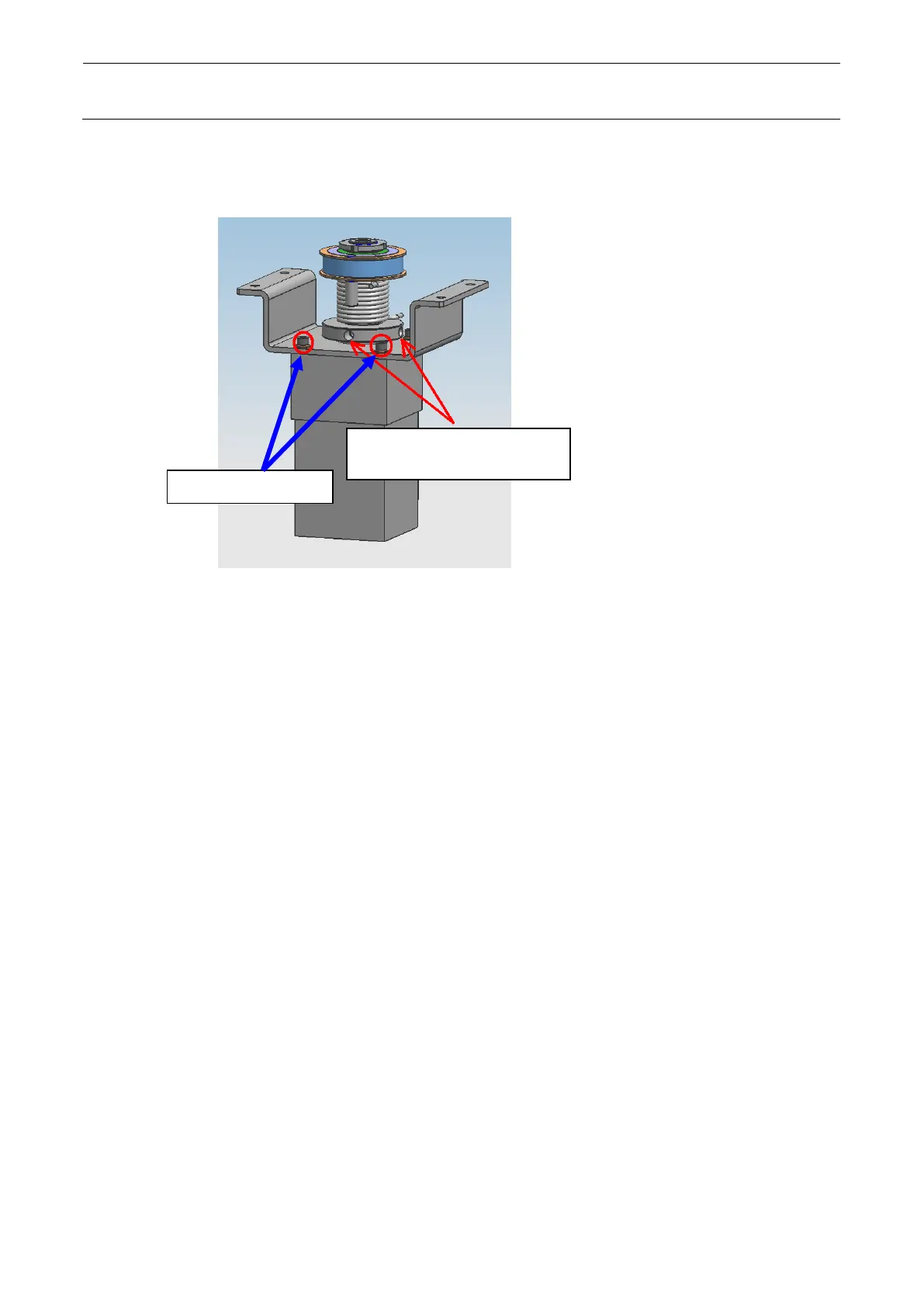

Figure 5-11-1-3 Support Table Motor Assembly
5) Replace the motor with a new one and reassemble the components in the reverse order of
disassembly. Apply Loctite 243 to the setscrews, and then tighten them.
6) Perform the following after reassembling.
5-11-2 Adjusting the Gap between the Torque Supporter Assembly and Support Table Motor
5-11-3 Adjusting the Tension of the Support Table Driving Timing Belt
5-11-4 Placing the Support Table Surface Horizontally
5-11-5 Reacquiring the Support Table Offset
5-15 Replacing the Backup Stopper
Torque supporter assembly
setscrews
To Next Page
