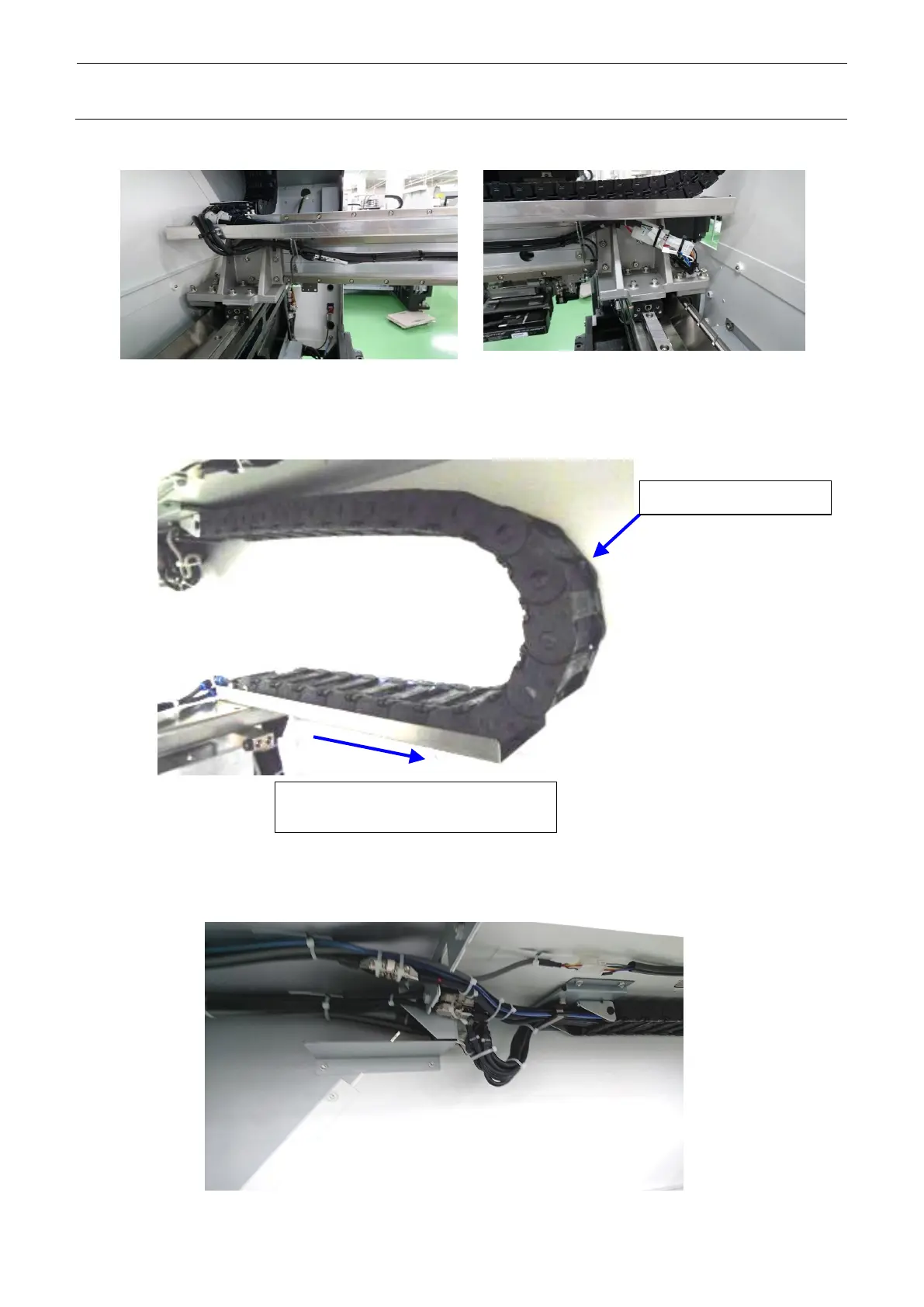

8) Bundle the cables on the rear of the X-axis according to the Figures below.
Figure 1-4-5-7 Figure 1-4-5-8
9) Move the Y-axis to the foremost position and push the cables inside the Y-cableveyor by
hand to check that they are flexible.
Figure 1-4-5-9
10) With the tie-up bands, secure the cables at the positions shown in the Figure below.
Figure 1-4-5-10

Move the Y-axis to the foremost
position.

Check the flexibility.
