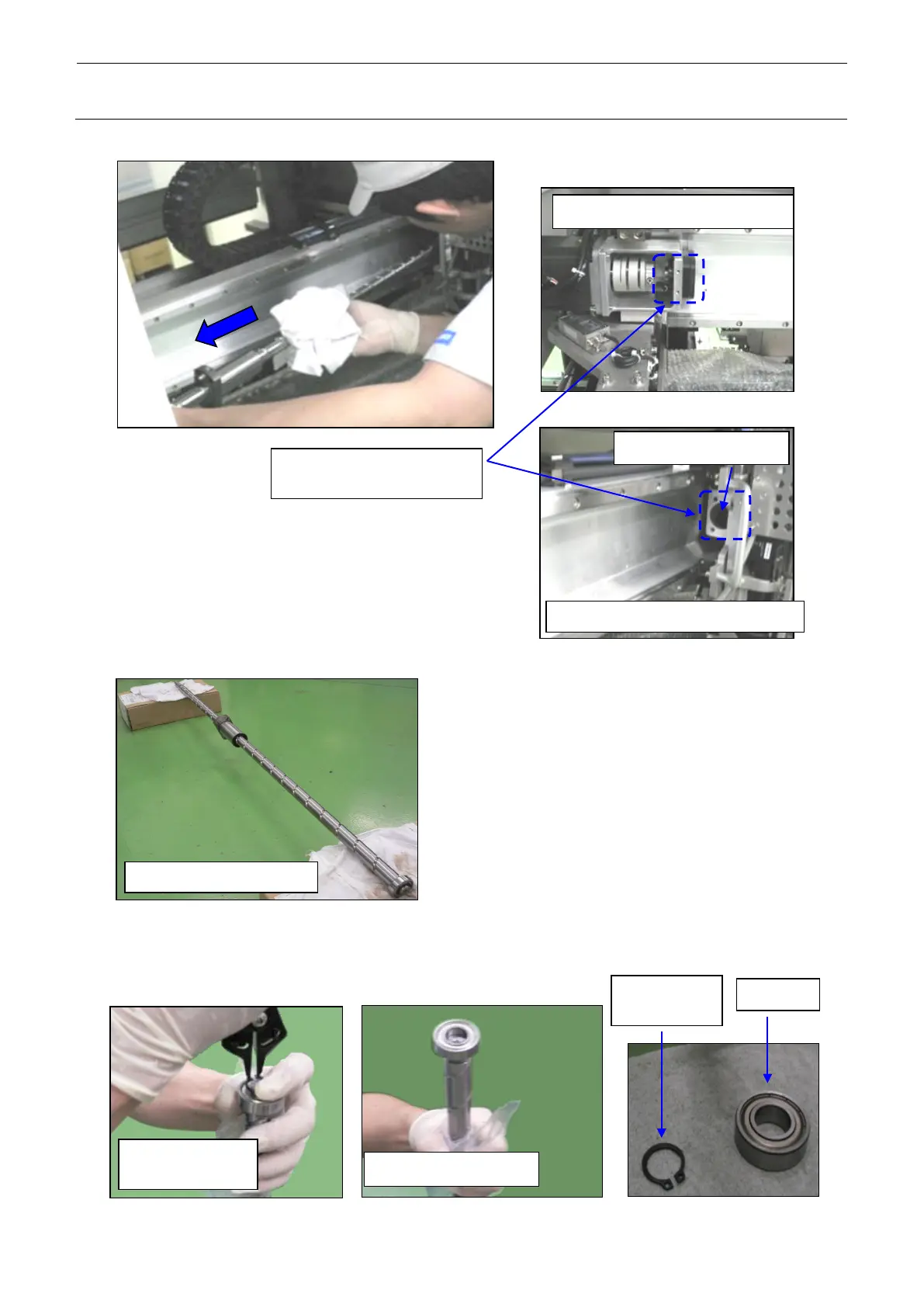

(8) With the HEAD_UNIT moved to the right, detach the X ball screw.
(9) Remove the C-retaining ring and bearing from the X ball screw that has been detached.
(10) Remove the C-retaining ring, and then remove the bearing from the X ball screw.
Status after the X ball
screw has been detached.
MOTOR_FRAME side (L side)
X_BS_NUT_FRAME side (R side)
X_BS_NUT_FRAME
Detached X ball screw
C-retaining
ring
Bearing
Remove the
C-retaining ring.
Remove the bearing.
