Understanding Redundant Power Supplies ! 517
Chapter 38: Monitoring Redundant Power Supplies
T320 Router Redundant Power Supplies

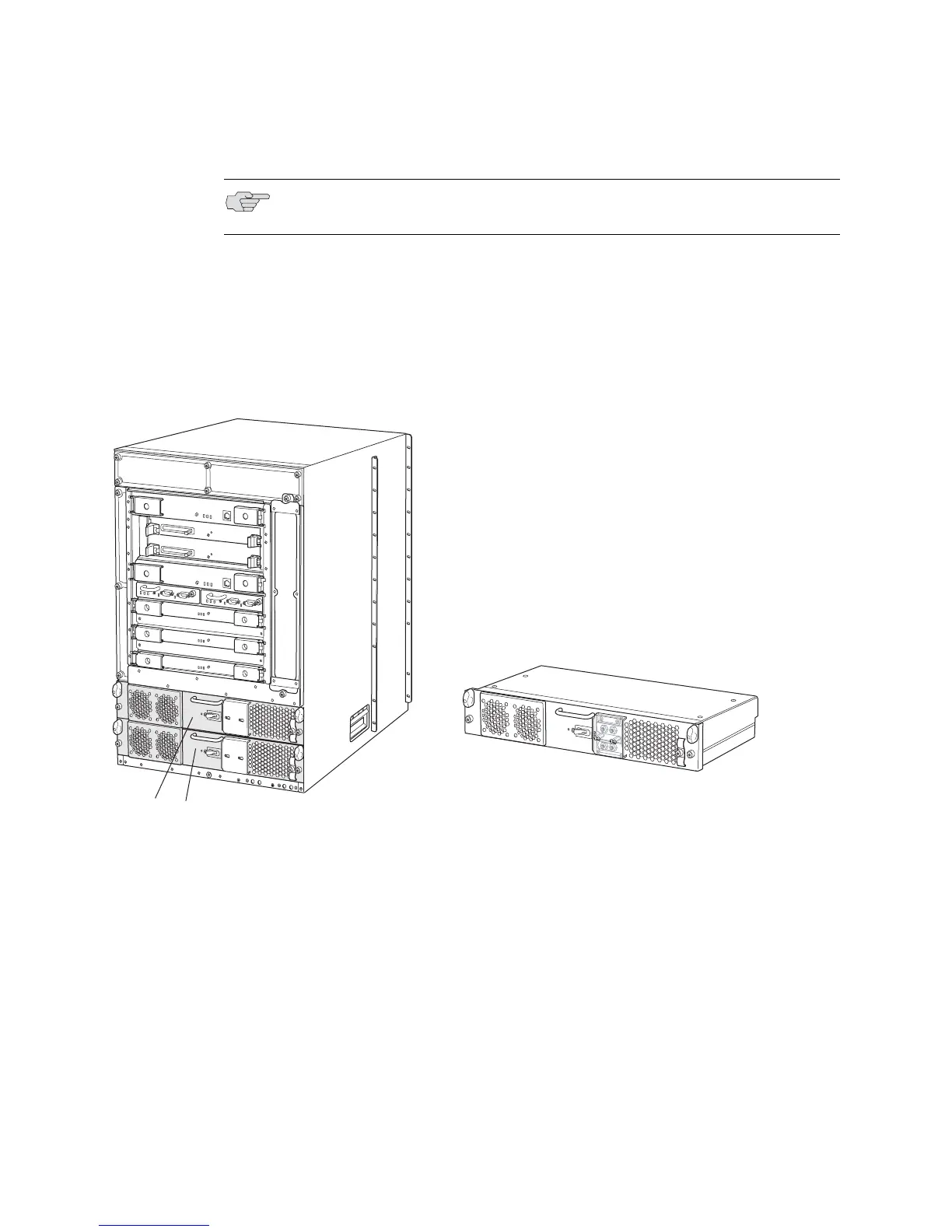

Figure 207 shows the T320 router power supplies and where they are installed in
the chassis.
Figure 207: T320 Router Redundant Power Supplies Location
NOTE: Each power supply must be connected to a dedicated AC power feed and a
dedicated 15 A (250 VAC) circuit breaker.
T320 router rear
DC power supply
Power supplies
g002106
