KTM 2013 690 SMC R EU User Manual

15 LIGHTING SYSTEM, INSTRUMENTS 99
600610-12

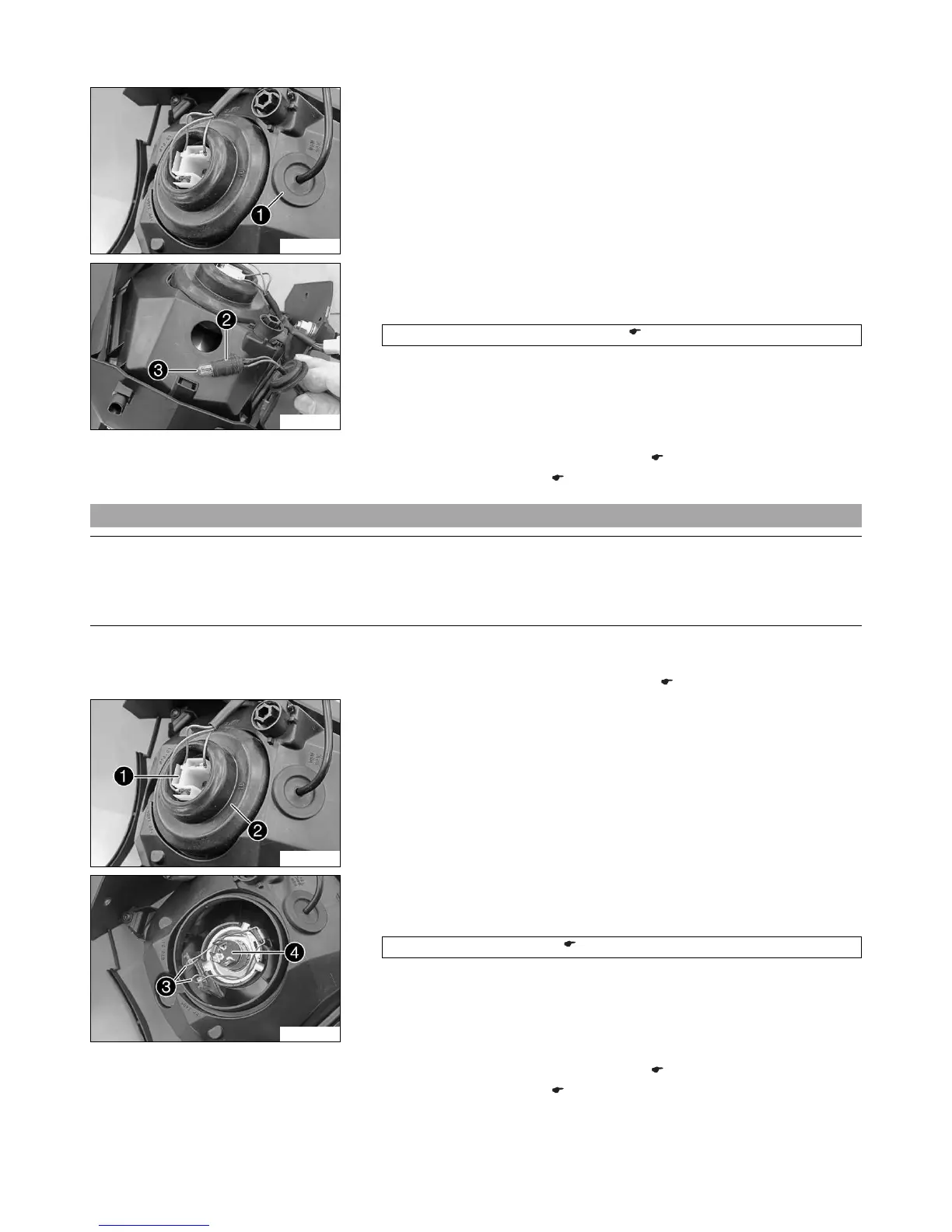

Main work
– Remove protection cap 1.
600612-10
– Pull bulb socket 2 out of the reflector.
– Pull parking light bulb 3 out of the bulb socket.
– Insert a new parking light bulb in the bulb socket.
Parking light (W5W / socket W2.1x9.5d) ( p. 177)
– Insert the bulb socket in the reflector.
– Insert the protection cap.
Finishing work
– Install the headlight mask with the headlight. ( p. 98)
– Check the headlight setting. ( p. 97)
15.7 Changing the headlight bulb
Note
Damage to reflector Reduced brightness.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the headlight mask with the headlight. ( p. 97)
600610-10
Main work
– Pull off connector 1.
– Take off protection cap 2 of the headlight bulb.
600611-10
– Detach spring bar 3.
– Remove headlight bulb 4.
– Insert a new headlight bulb into the headlight housing.
Headlight (H4 / socket P43t) ( p. 177)
– Fix the headlight bulb in the headlight using the spring bar.
– Mount the protection cap. Attach the connector.
Finishing work
– Install the headlight mask with the headlight. ( p. 98)
– Check the headlight setting. ( p. 97)
