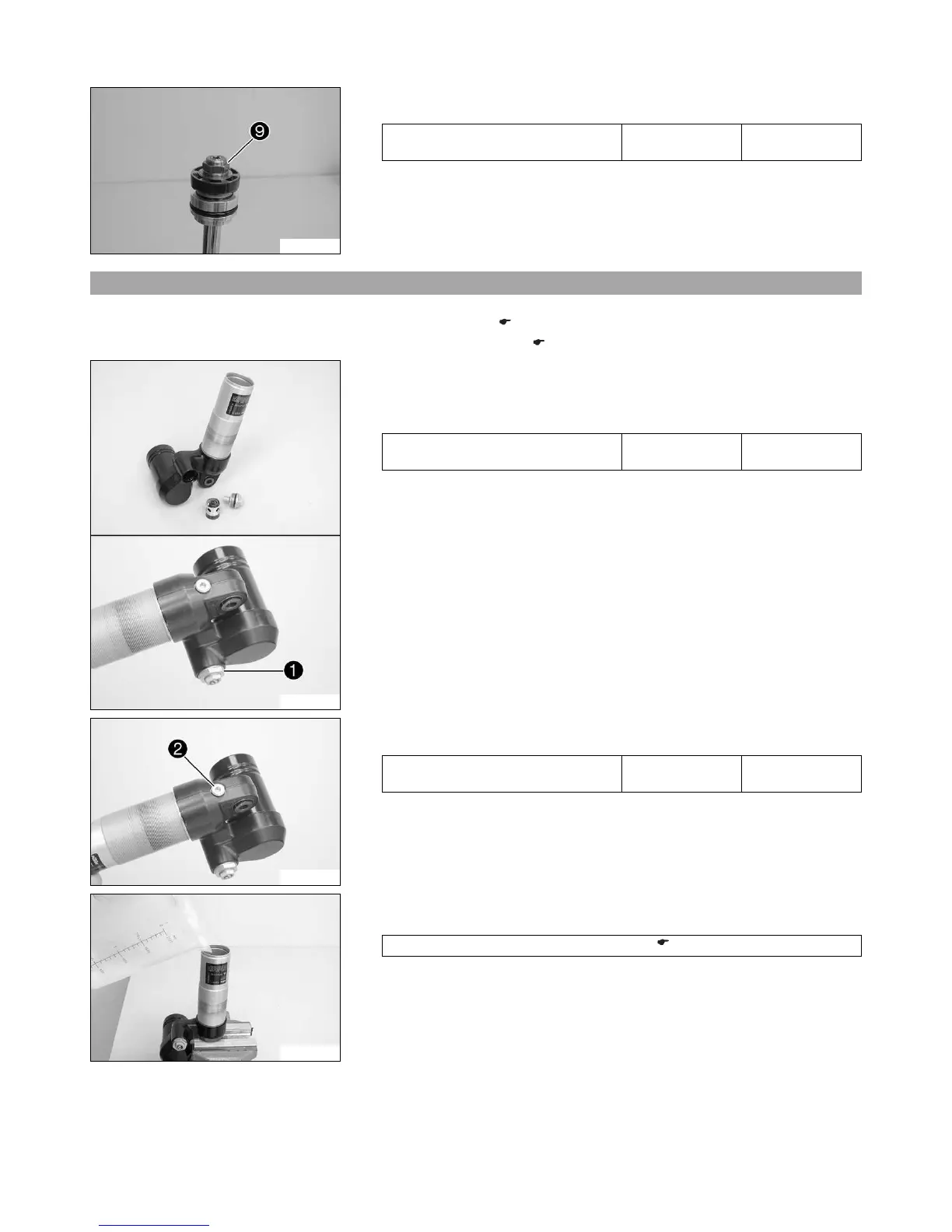

8 SHOCK ABSORBER, SWINGARM 45
300540-11
– Mount and tighten nut 9.
Guideline
Piston rod nut M12x1 40 Nm
(29.5 lbf ft)
8.19 Assembling the damper
Preparatory work
– Check the damper. ( p. 41)
– Assemble the piston rod. ( p. 44)
201279-11
Main work
– Push the spring and sleeve onto the compression adjuster. Mount the piston.
– Mount and tighten compression adjuster 1.
Guideline
Compression adjuster M26x1 30 Nm
(22.1 lbf ft)
201277-11
– Mount and tighten screw 2.
Guideline
Filling port screw M10x1 14 Nm
(10.3 lbf ft)
201288-10
– Clamp the damper in the vise using soft jaws.
– Fill the damper cartridge about half full.
Shock absorber oil (SAE 2.5) (50180342S1) ( p. 207)
