8 SHOCK ABSORBER, SWINGARM 41
300542-10

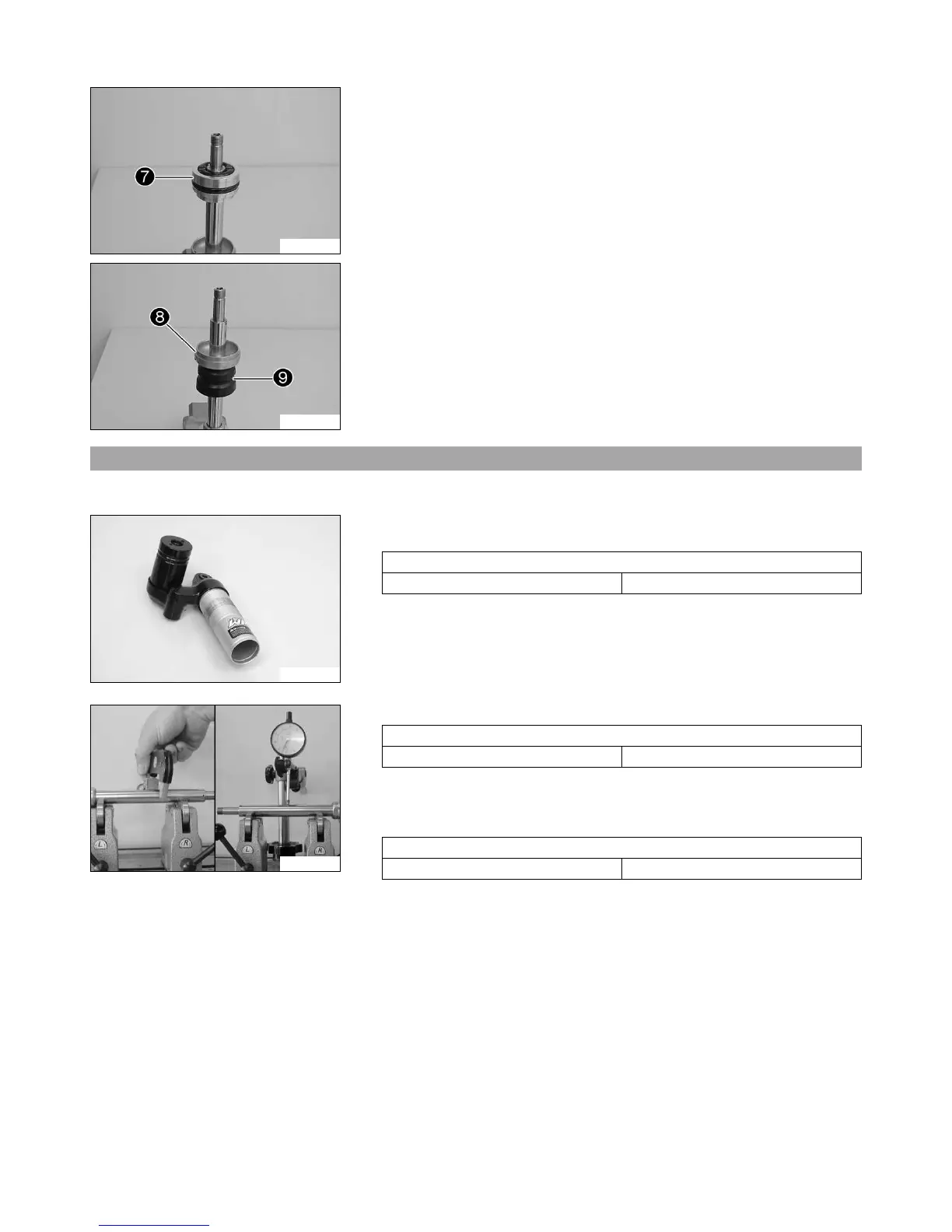

– Remove seal ring retainer 7.
300543-10
– Remove locking cap 8 and rubber buffer 9.
8.15 Checking the damper
Condition
The damper has been disassembled.
201280-10
– Measure the inside diameter at both ends and in the center of the damper car-
tridge.
Damper cartridge
Minimum diameter 46.10 mm (1.815 in)
» If the measured value is greater than the specified value:
– Change the damper cartridge.
– Check the damper cartridge for damage and wear.
» If there is damage or wear:
– Change the damper cartridge.
300554-10
– Measure the diameter of the piston rod.
Piston rod
Diameter ≥ 17.95 mm (≥ 0.7067 in)
» If the specification is not reached:
– Change the piston rod.
– Measure the run-out of the piston rod.
Piston rod
Run-out ≤ 0.03 mm (≤ 0.0012 in)
» If the measured value is greater than the specified value:
– Change the piston rod.
– Check the piston rod for damage and wear.
» If there is damage or wear:
– Change the piston rod.
