8 SHOCK ABSORBER, SWINGARM 33

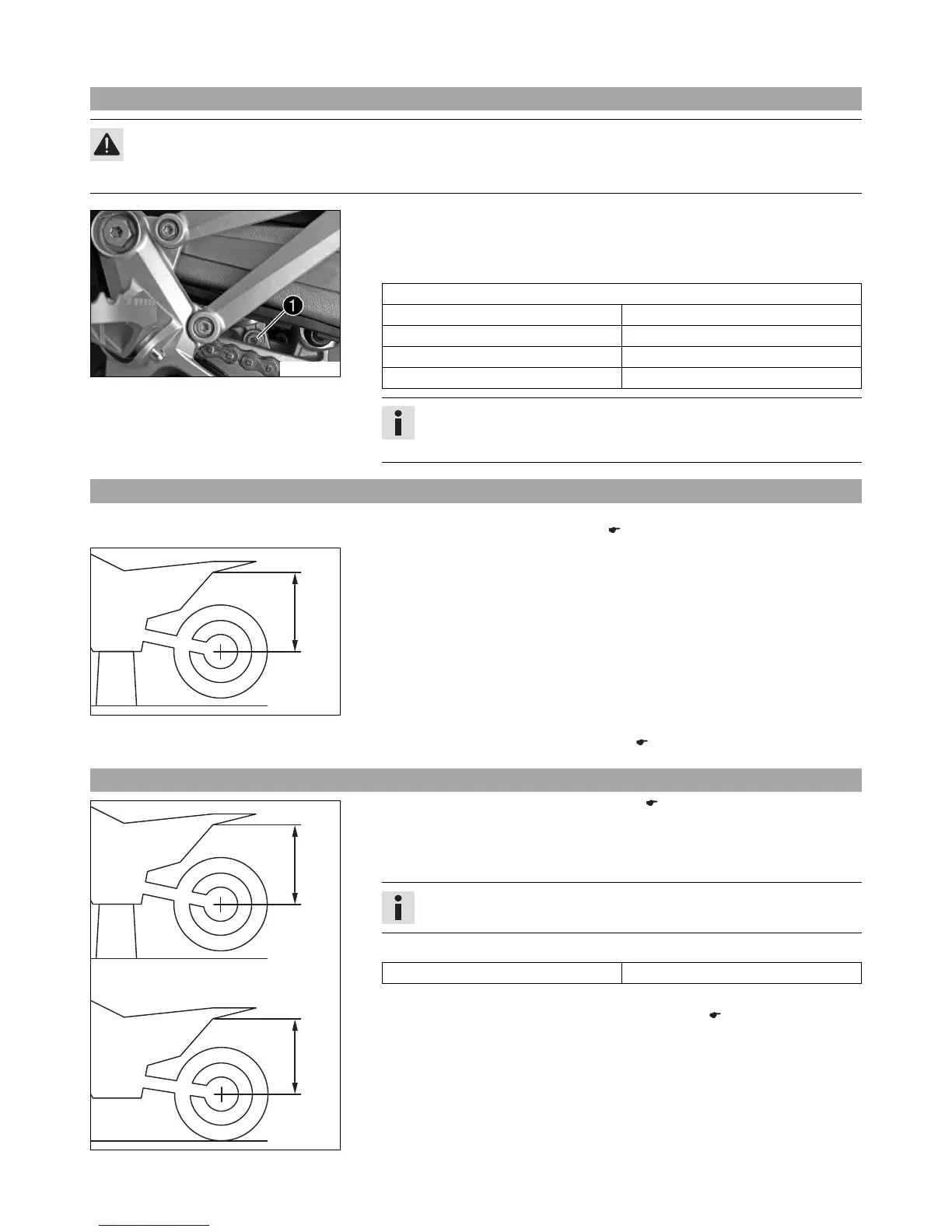

8.3 Adjusting the rebound damping of the shock absorber
Caution
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided.
601891-10
– Turn adjusting screw 1 clockwise up to the last perceptible click.
– Turn back counterclockwise by the number of clicks corresponding to the shock
absorber type.
Guideline
Rebound damping
Comfort 20 clicks
Standard 15 clicks
Sport 10 clicks
Full payload 10 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp-
ing.
8.4 Measuring the unloaded rear wheel sag
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 11)
0
0
AA
400988-10
Main work
– Measure the distance – as vertical as possible – between the rear axle and a fixed
point, for example, a mark on the side cover.
– Note down the value as dimension A.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 11)
8.5 Checking the static sag of the shock absorber
0
0
AA
0
0
BB
400989-10
– Measure distance A of rear wheel unloaded. ( p. 33)
– Hold the motorcycle upright with the aid of an assistant.
– Measure the distance between the rear axle and the fixed point again.
– Note down the value as dimension B.
Info
The static sag is the difference between measurements A and B.
– Check the static sag.
Static sag 20… 25 mm (0.79… 0.98 in)
» If the static sag is less or more than the specified value:
– Adjust the spring preload of the shock absorber. ( p. 34)
