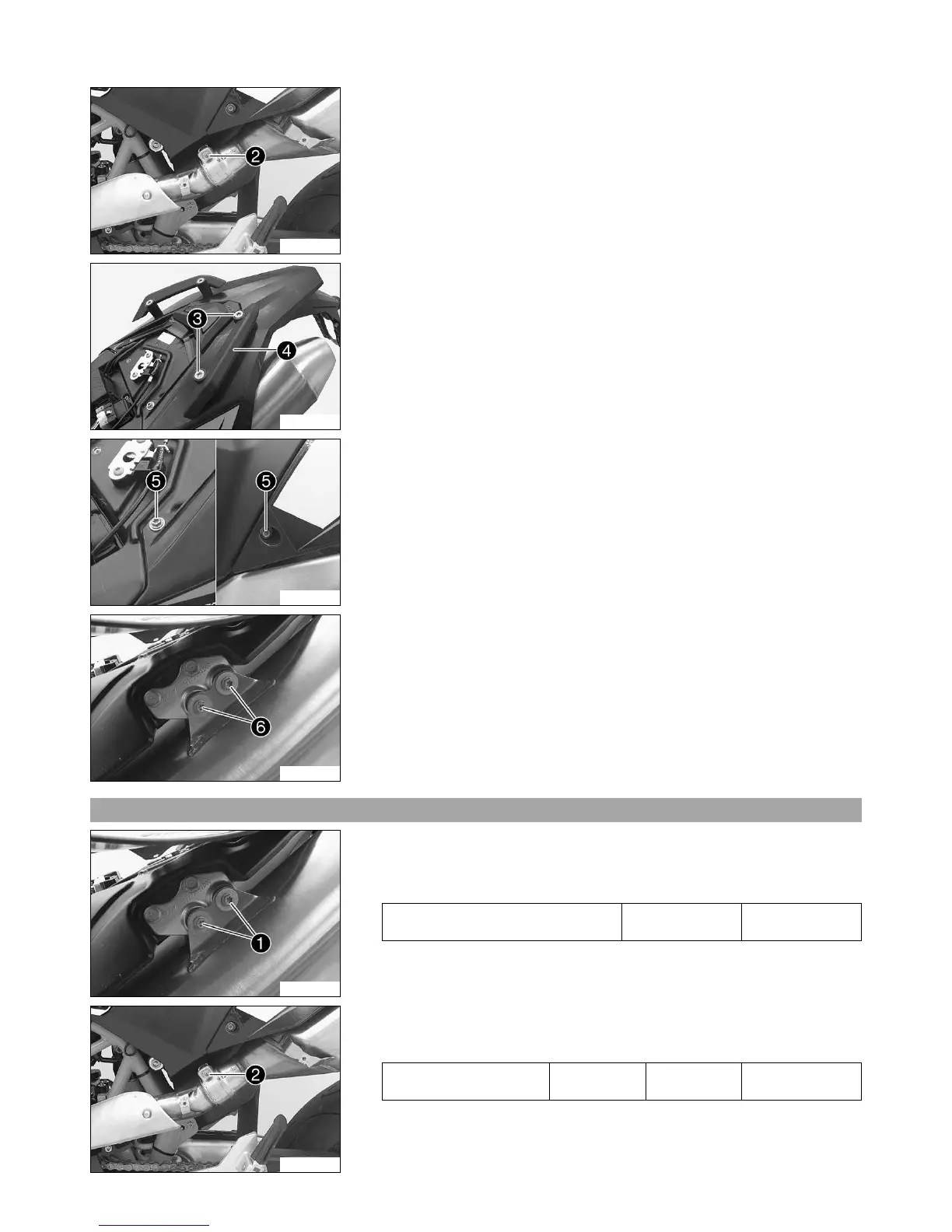

KTM 2013 690 SMC R EU User Manual

9 EXHAUST 54
S00071-10
– Loosen screw 2.
S00062-12
– Remove screws 3.
– Remove grab handle 4.
S00072-10
– Remove screws 5.
– Lift the rear fairing.
S00073-11
– Remove screws 6.
– Remove the main silencer.
9.4 Installing the main silencer
S00073-10
Main work
– Position the main silencer.
– Mount and tighten screws 1.
Guideline
Screw, main silencer holder M8 25 Nm
(18.4 lbf ft)
S00071-10
– Position the screw clamp.
– Tighten screw 2.
Guideline
Screw, main silencer
clamp
M8 12 Nm
(8.9 lbf ft)
Copper paste
