16 ENGINE 107
– Take a short test ride.
– Read out the fault memory using the KTM diagnostics tool.
– Check the engine for leakage.
– Check the engine oil level. ( p. 165)
– Check the coolant level. ( p. 164)

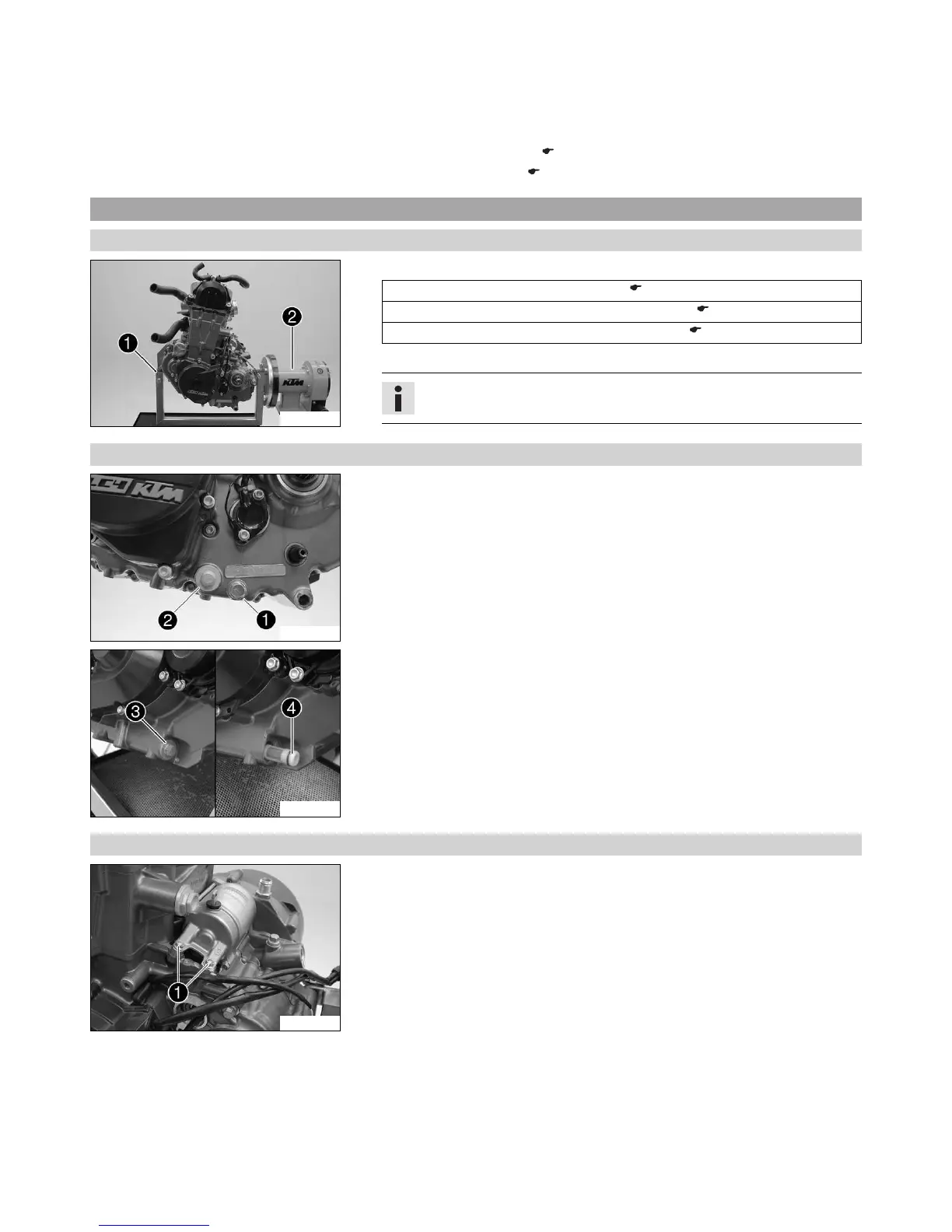

16.3 Engine disassembly
16.3.1 Clamping the engine into the engine assembly stand
300144-10
– Mount special tool 1 on engine assembly stand 2.
Engine assembly stand (61229001000) ( p. 214)
Support for engine assembly stand (75012001060) ( p. 214)
Holder for engine assembly stand (75012001070) ( p. 214)
– Mount the engine on special tool 1.
Info
Have an assistant help you or use a crane.
16.3.2 Draining the engine oil
300002-10
– Remove the oil drain plug 1 with the magnet and seal ring.
– Remove plug 2 with oil screen and the O-rings.
300161-10
– Remove plug 3 with oil screen 4 and the O-rings.
– Completely drain the engine oil.
16.3.3 Removing starter motor
300001-01
– Remove screws 1. Take off the starter motor.
