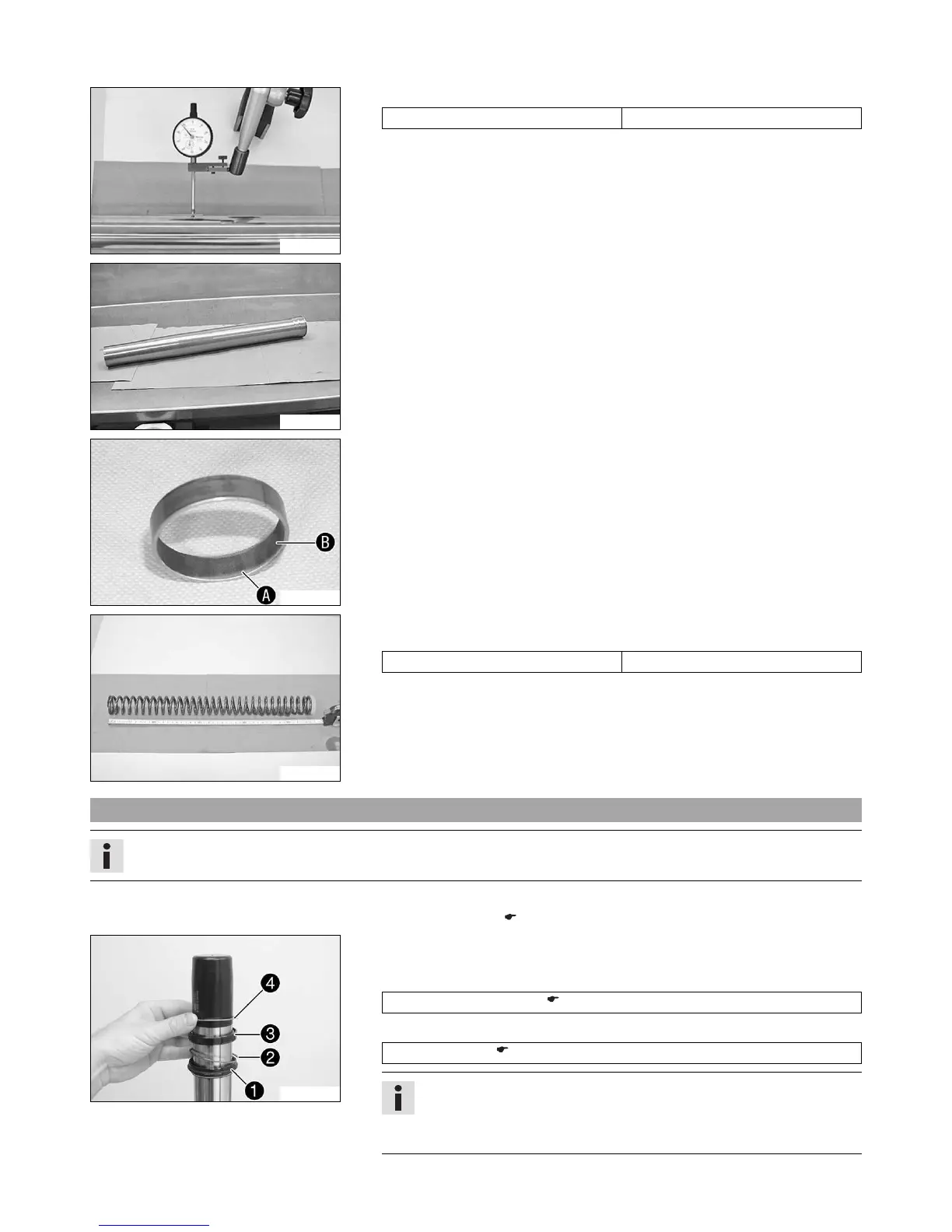

6 FORK, TRIPLE CLAMP 23
200685-10
– Measure the run-out of the inner tube.
Run-out of inner tube ≤ 0.20 mm (≤ 0.0079 in)
» If the measured value is greater than the specified value:
– Replace the inner tube.
200632-10
– Check the outer tube for damage.
» If damage is found:
– Replace the outer tube.
200665-10
– Check the surface of the sliding bushings.
» If the bronze-colored layer A under sliding layer B is visible:
– Replace the sliding bushings.
200666-10
– Check the spring length.
Guideline
Spring length with preload spacer(s) 462 mm (18.19 in)
» If the measured value is greater than the specified value:
– Reduce the strength of the pretensioning bushes.
» If the measured value is less than the specified value:
– Increase the strength of the preload spacers.
6.12 Assembling the fork legs
Info
These operations are the same on both fork legs.
Preparatory work
– Check the fork legs. ( p. 22)
200669-10
Main work
– Clamp the inner tube with the axle clamp.
– Mount special tool.
Protecting sleeve (T1401) ( p. 221)
– Grease and push on dust boot 1.
Lubricant (T511) ( p. 208)
Info
Always replace the dust boot, seal ring, lock ring, and support ring.
Install the dust boot with the sealing lip and spring expander facing down-
ward.
