KTM 2013 690 SMC R EU User Manual

16 ENGINE 156

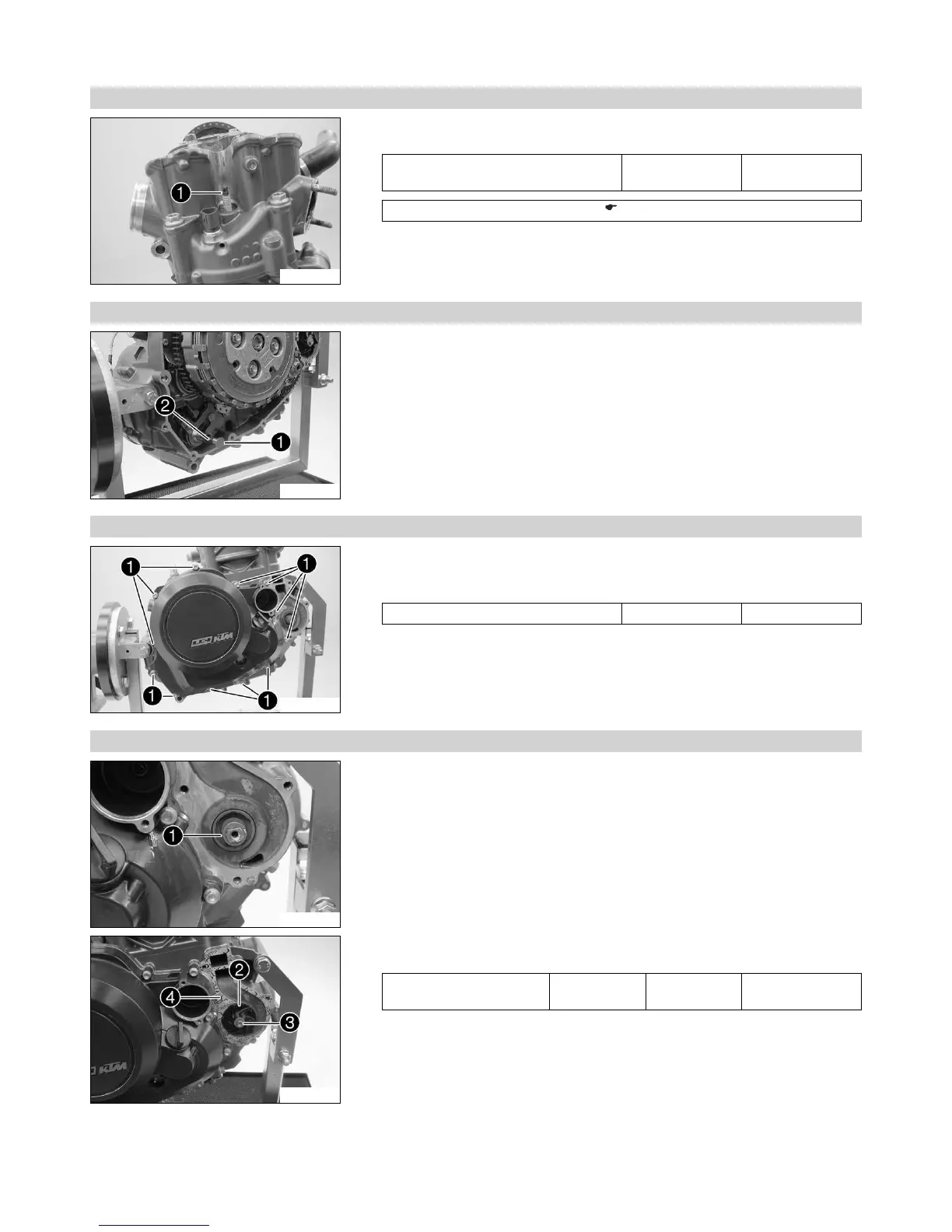

16.5.23 Installing spark plug
300016-11
– Mount and tighten the spark plug 1 using the special tool.
Guideline
Spark plug M12x1.25 18 Nm
(13.3 lbf ft)
Spark plug wrench (75029172000) ( p. 218)
16.5.24 Installing spacer and spring
300154-10
– Install the spacer 1 and spring 2 of the shift shaft.
16.5.25 Installing clutch cover
300015-11
– Mount the dowels. Put on the clutch cover seal.
– Position the clutch cover. Mount and tighten screws 1.
Guideline
Screw, clutch cover M6 10 Nm (7.4 lbf ft)
16.5.26 Mounting water pump cover
300014-11
– Push on the shaped washer 1.
300013-12
– Attach the water pump wheel 2. Mount and tighten screw 3
Guideline
Screw, water pump wheel M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
– Lay on the water pump cover seal 4.
