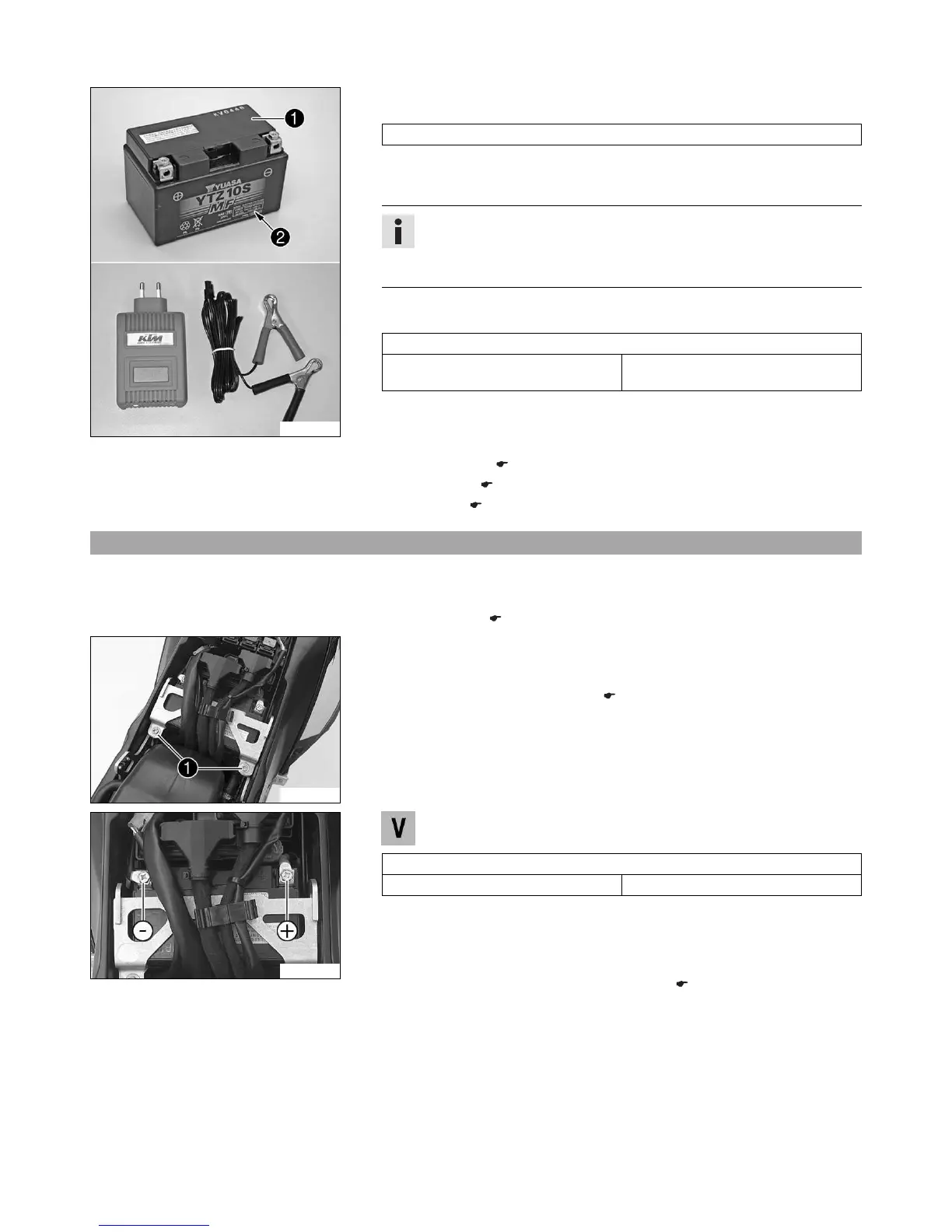

13 WIRING HARNESS, BATTERY 81
100151-10
Main work
– Connect the battery charger to the battery. Switch on the battery charger.
Battery charger (58429074000)
You can also use the battery charger to test rest potential and start potential of the
battery, and to test the alternator. With this device, you cannot overcharge the bat-
tery.
Info
Never remove lid 1.
Charge the battery with a maximum of 10% of the capacity specified on the
battery housing 2.
– Switch off and disconnect the charger after charging.
Guideline
The charge current, charge voltage and charge time must not be exceeded.
Charge the battery regularly when the
motorcycle is not in use
3 months
Finishing work
– Install the battery. ( p. 79)
– Mount the seat. ( p. 60)
– Set the clock. ( p. 95)
13.6 Checking the charging voltage
Condition
The battery must be fully functional and completely charged.
Preparatory work
– Remove the seat. ( p. 59)
S00082-10
Main work
– Remove screws 1.
– Push the retaining bracket forward and take off the terminal cover.
– Start the motorcycle to make checks. ( p. 13)
S00084-10
– Measure the voltage between the specified points.
Measuring point Plus (+) – Measuring point Ground (−)
Charging voltage
5,000 rpm 13.5… 15.0 V
» If the displayed value is less than the specified value:
– Check the plug-in connections from the alternator to the voltage regulator.
– Check the plug-in connections from the voltage regulator to the wiring har-
ness.
– Check the stator winding of the alternator. ( p. 171)
» If the displayed value is greater than the specified value:
– Change the voltage regulator.
