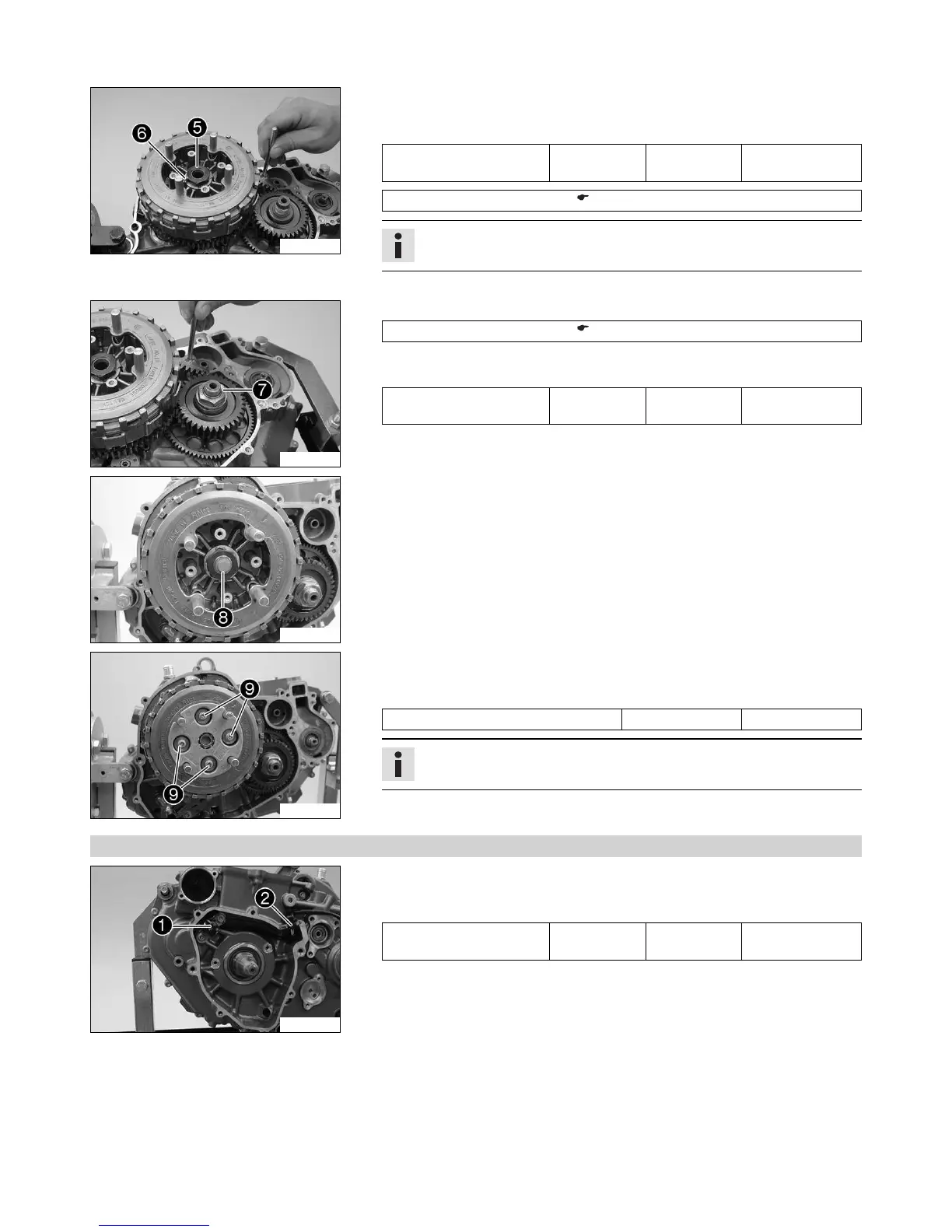

KTM 2013 690 SMC R EU User Manual

16 ENGINE 149
302121-10
– Position a new lock washer and install the nut 5.
– Lock the clutch basket and primary gear using special tool and tighten the nut.
Guideline
Nut, inner clutch hub M20x1.5 100 Nm
(73.8 lbf ft)
Loctite
®
243™
Gear segment (75029081000) ( p. 218)
Info
Make sure that the crankshaft is not blocked.
– Secure the nut with lock washer 6.
302122-10
– Lock the clutch basket and primary gear using the special tool.
Gear segment (75029081000) ( p. 218)
– Mount and tighten the nut 7.
Guideline
Nut, primary gear M20LHx1.5 90 Nm
(66.4 lbf ft)
Loctite
®
243™
300061-10
– Insert the pressure piece 8.
300052-11
– Place the pressure cap on.
– Install and tighten the screws 9 with the spring retainers and clutch springs.
Guideline
Screw, clutch spring M5 6 Nm (4.4 lbf ft)
Info
Ensure that all clutch springs have a blue color coding.
– Remove the special tool.
16.5.11 Installing crankshaft position sensor
300151-10
– Position the crankshaft position sensor 1.
– Mount screws but do not tighten them yet.
Guideline
Screw, ignition pulse gen-
erator
M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
– Position the cable and push the cable support sleeve 2 into the engine case.
