10 AIR FILTER 57
S00074-10

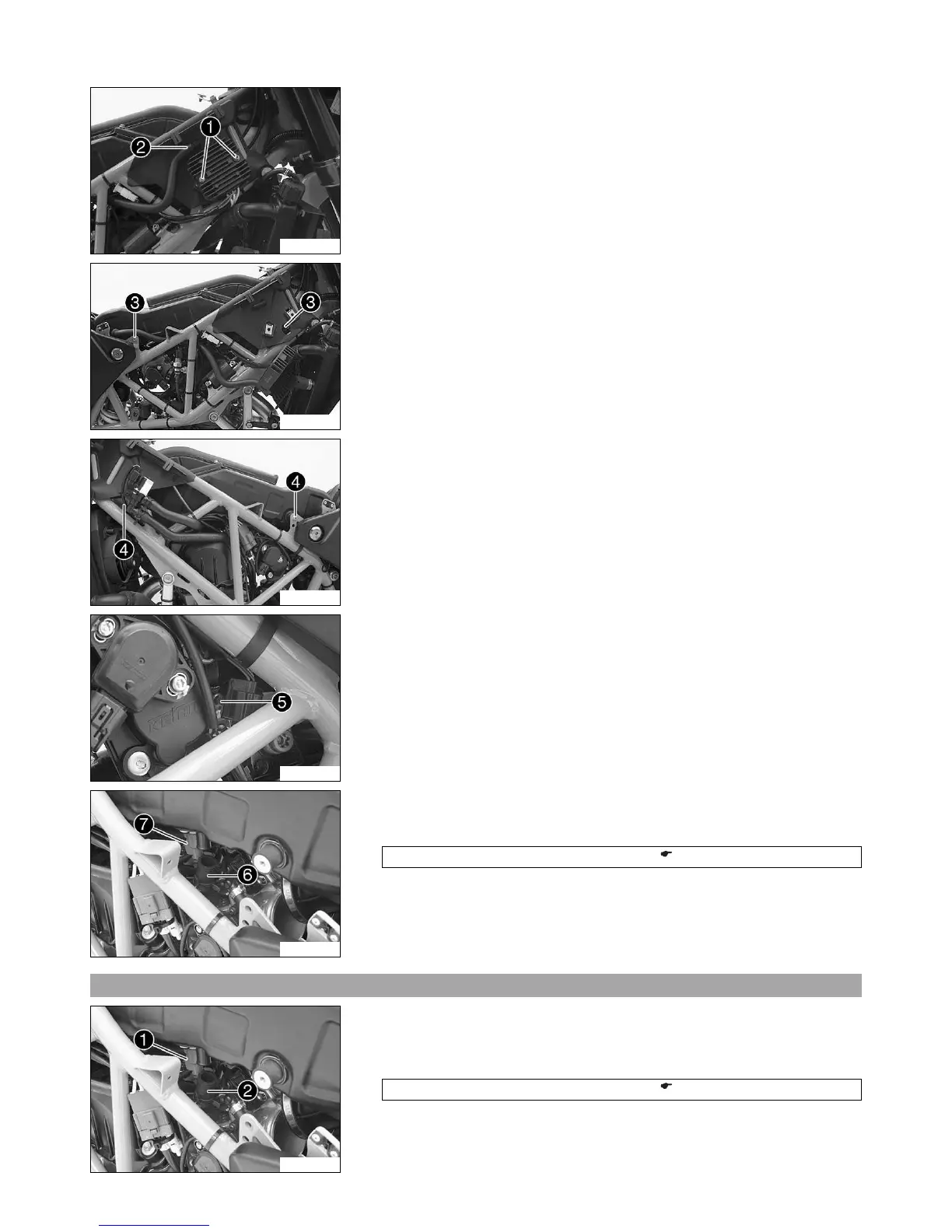

Main work
– Remove screws 1.
– Take off the voltage regulator and hang it to the side in a de-energized state.
– Detach and expose hose 2.
S00075-10
– Remove screws 3.
S00076-10
– Remove screws 4.
S00077-10
– Loosen hose clip 5.
S00078-10
– Raise the air filter box at the rear.
– Loosen the spring-loaded band-type clamp with the special tool and detach bleed
hose 6.
Pliers for spring band clamp (60029057100) ( p. 213)
– Detach connector 7 of the intake air temperature sensor.
– Take off the air filter box.
10.4 Installing the air filter box
S00078-11
Main work
– Attach connector 1 of the intake air temperature sensor.
– Mount bleed hose 2. Mount the spring-loaded band-type clamp using the special
tool.
Pliers for spring band clamp (60029057100) ( p. 213)
