15 LIGHTING SYSTEM, INSTRUMENTS 97

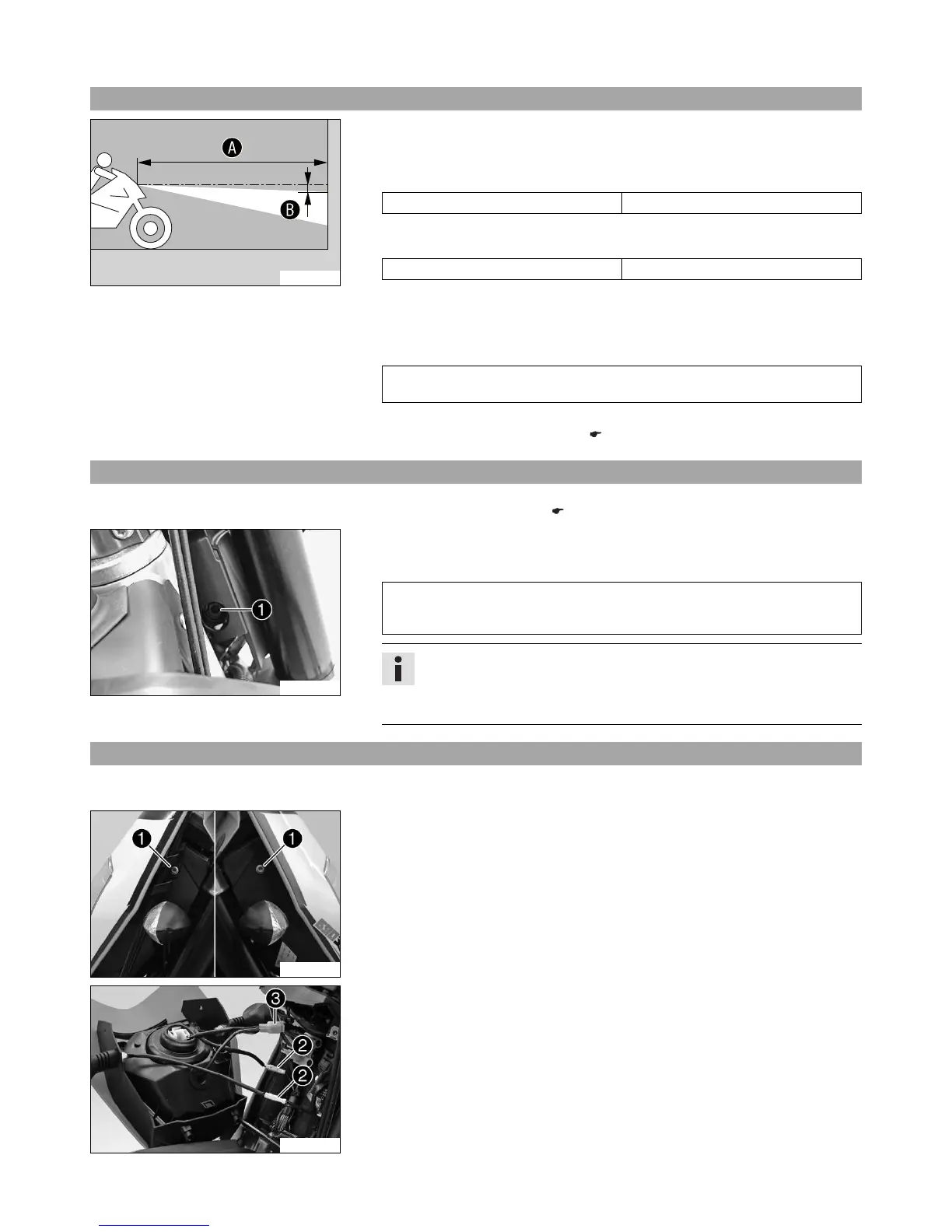

15.2 Checking the headlight setting
400726-10
– Stand the vehicle upright on a horizontal surface in front of a light wall and make a
mark at the height of the center of the low beam headlight.
– Make another mark at a distance B under the first mark.
Guideline
Distance B 5 cm (2 in)
– Position the vehicle vertically at a distance A in front of the wall.
Guideline
Distance A 5 m (16 ft)
– The rider, with luggage and a passenger if applicable, now sits down on the motor-
cycle.
– Switch on the low beam.
– Check the headlight setting.
For a ready-to-operate motorcycle with a rider, and with luggage and a passenger
if applicable, the light-dark boundary must lie exactly on the lower mark.
» If the boundary between light and dark does not meet specifications:
– Adjust the headlight range. ( p. 97)
15.3 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 97)
C00193-10
Main work
– Turn adjusting screw 1 to adjust the headlight range.
Guideline
The boundary between light and dark must be exactly on the lower mark for a
motorcycle with a rider (instructions on how to apply the mark: Checking the
headlight setting).
Info
Turn clockwise to increase the headlight range; turn counterclockwise to
reduce the headlight range.
If you have a heavy payload, you will need to correct the headlight range.
15.4 Removing the headlight mask with the headlight
Preparatory work
– Switch off all power consumers and switch off the engine.
601909-10
Main work
– Cover the fender with a cloth to protect it from damage.
– Remove screws 1 on both sides.
– Tip the headlight mask forward.
601910-10
– Disconnect the connectors of turn signals 2 and headlight 3.
– Remove the headlight mask.
